February 2013
4-40
ColorQube® 9303 Family
REP 5.4
Repairs/Adjustments
REP 5.4 Input Tray Assembly
Parts List on PL 5.35
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the DADH, REP 5.19.
2. Remove the feed assembly, REP 5.3.
NOTE: To release the tension of the drive belts, refer to ADJ 5.1.
3. Remove the input tray assembly, Figure 1.

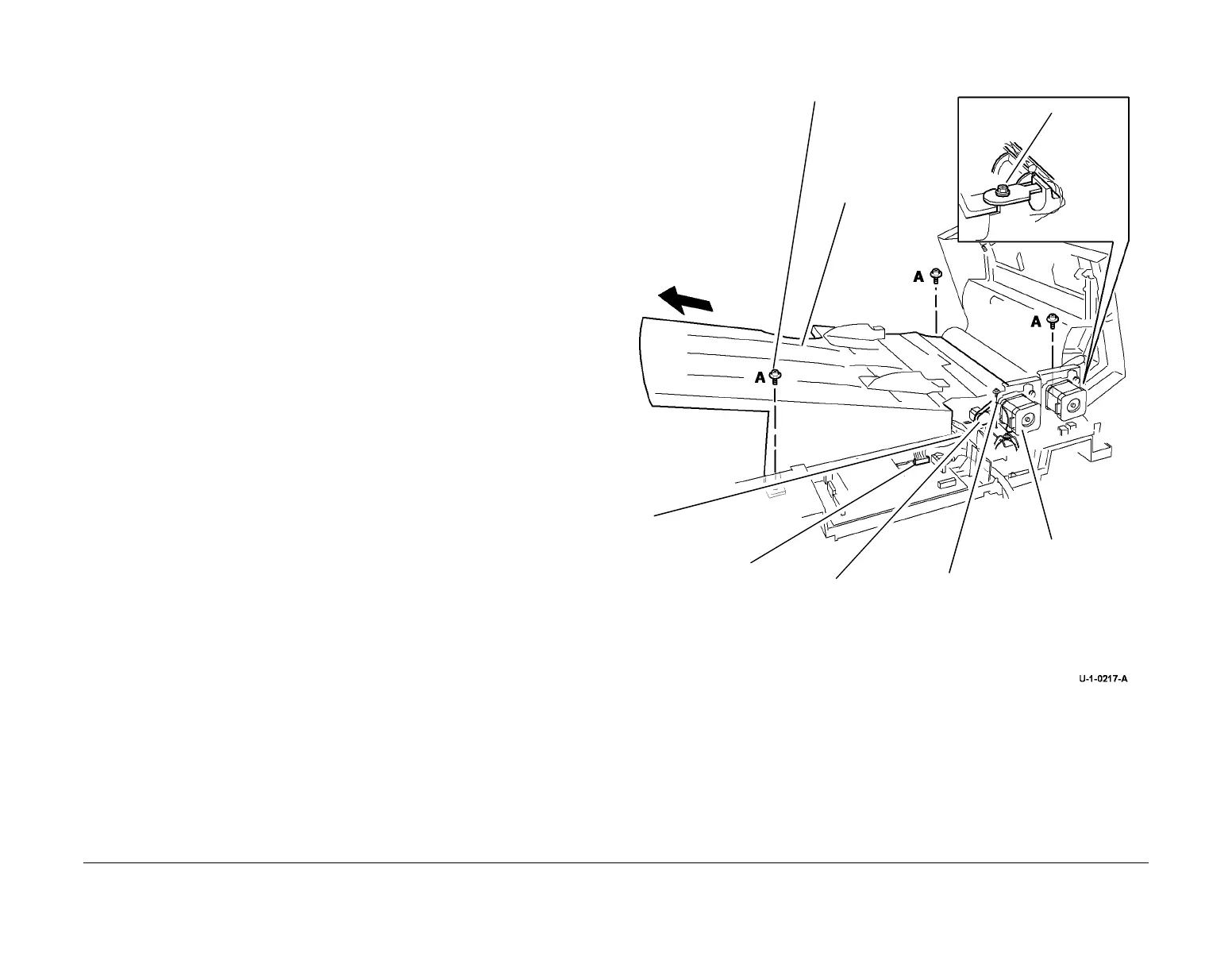

Figure 1 Input tray assembly
Replacement
1. The replacement is the reverse of the removal procedure.
2. Perform ADJ 5.1 DADH Drive Belt Adjustment.
7
Remove 3
self tapping
screws
marked A.
4
Release the
tension and
disengage the
drive belt.
6
Release the
harness.
5
Disconnect
PJ190.
3
Disconnect
the ground
harness.
1
Loosen the
screw.
8
Remove the
input tray
assembly.
2
Release the
tension on the
feed motor
drive belt.
To Next Page
