February 2013
5-100
ColorQube® 9303 Family
PL 91.25
Parts Lists

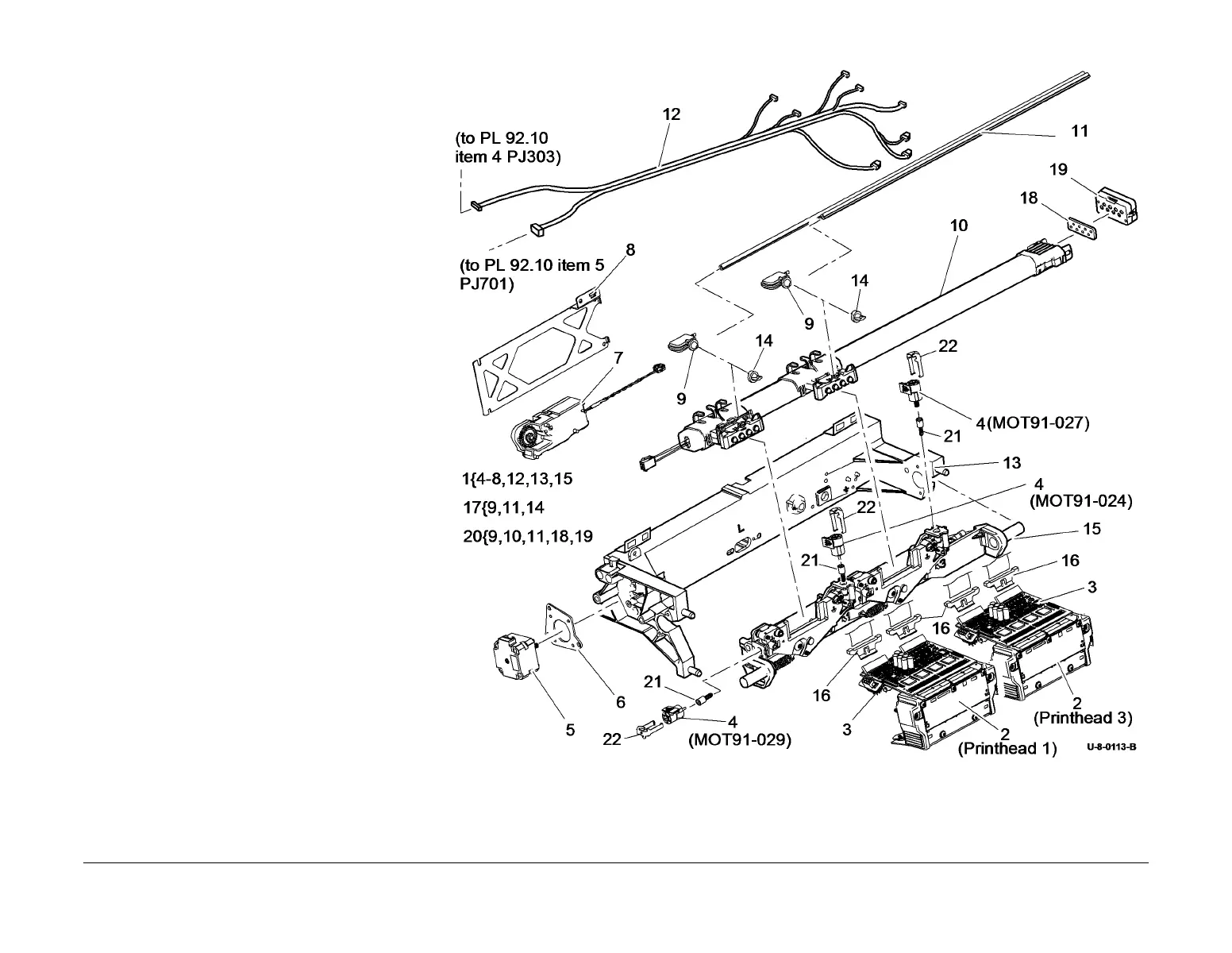

PL 91.25 Marking Unit Lower Carriage
Assembly
Item Part Description
1 041K06780 Lower carriage assembly (REP
91.14)
2 – Printhead (Type A) (see NOTE)
(REP 91.29) (Not spared)
– 604K83791 Printhead (Type B) (see NOTE)
3 – Printhead PWB (P/O PL 91.25 Item
2)
4 127K62310 Printhead stitch adjust motor 1
(MOT91-029)/Printhead roll adjust
motor 1 (MOT91-024)/Printhead roll
adjust motor 3 (MOT91-027) (REP
91.13)
5 127K62300 X-axis drive motor lower (MOT91-
034)
6 – Printhead drive motor bracket (P/O
PL 91.25 Item 5)
7 – Not used
8 – Mounting bracket (Not spared)
9 – Purge line filter (P/O PL 91.25 Item
17)
10 819E15800 Umbilical (REP 91.31)
11 – Purge line (P/O PL 91.25 Item 17)
12 117E35660 Lower carriage harness (PJ303,
PJ701)
13 – Lower carriage frame assembly (P/
O PL 91.25 Item 1)
14 – Purge line filter cap (P/O PL 91.25
Item 17)
15 – SFWA lower frame (P/O PL 91.25
Item 1)
16 – Cable clip (Type A) (P/O PL 31.11
Item 29, PL 31.11 Item 13) (see
NOTE)
17 604K54961 Purge line filter assembly
18 – Reservior gasket (P/O PL 91.25
Item 20)
19 – Check valve unit (P/O PL 91.25
Item 20)
20 – Umbilical kit (P/O PL 31.10 Item 14)
21 826E66290 Lead screw (REP 91.37)
22 – Spring clip (Not spared)
NOTE: To identify the type of printhead, refer to GP 46.
