February 2013
4-289
ColorQube® 9303 Family
REP 81.2, REP 81.3
Repairs/Adjustments

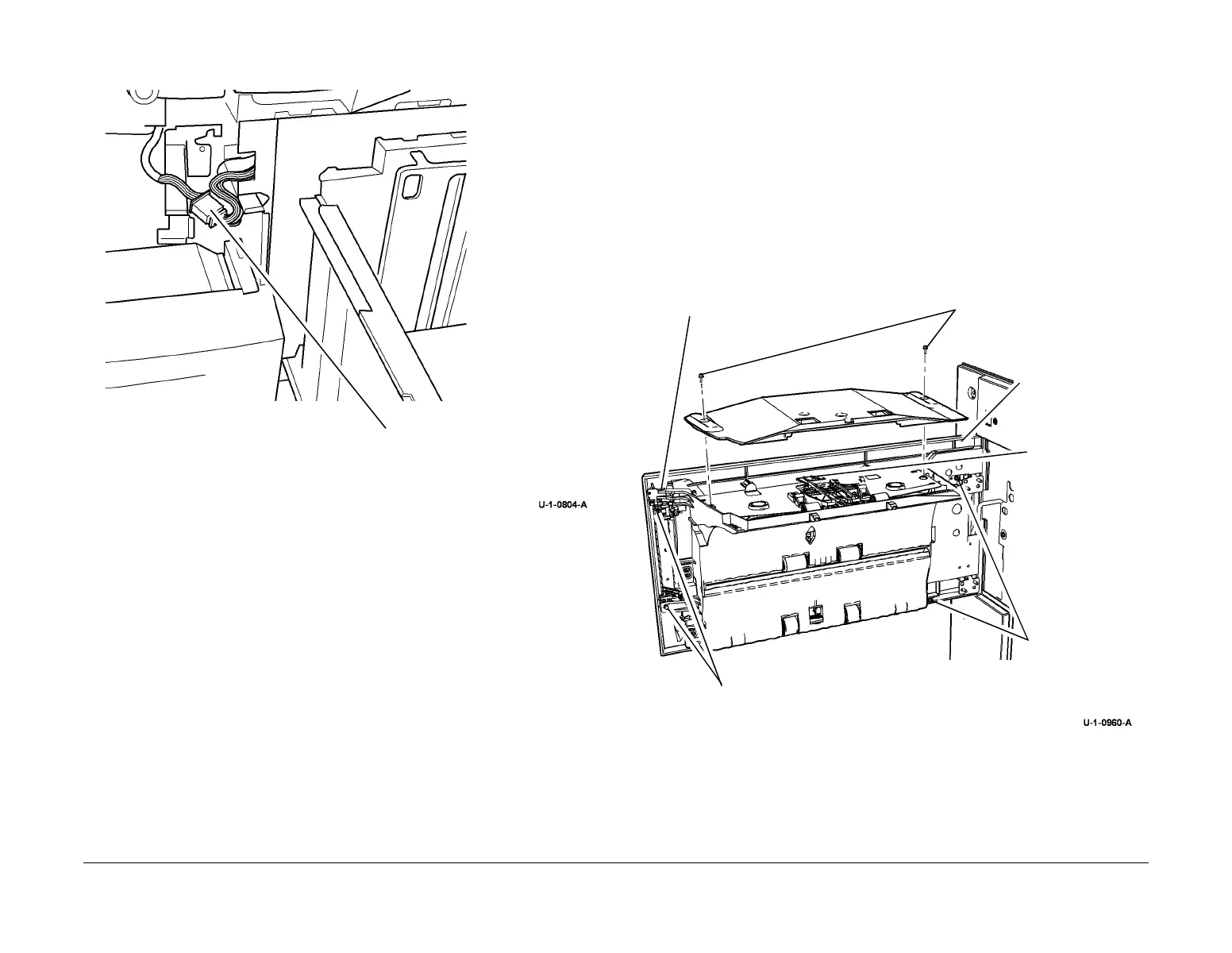

4. Disconnect the harness, Figure 2.
Figure 2 Disconnect harness
Replacement
Replacement is the reverse of the removal procedure.
1. Install the paper feed assembly and push the tray in slowly.
NOTE: Check that the tray does not touch the feed assembly.
2. If a new feed roll assembly is installed, reset the tray 3 feed count to zero. Refer to dC135
CRU / HFSI Status.
REP 81.3 Bypass Module
Parts List on PL 70.30
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Take care when removing the cover. The clips that secure the latch are easily broken.
1. Remove the bypass upper left door cover, Figure 1.
Figure 1 Bypass cover
2. Remove the left cover, PL 81.10 Item 2
1
Disconnect the harness
then slide the feed
assembly out.
3
Remove 2 screws.
2
Remove 2 screws.
4
Release the top
clip, then remove
the cover.
Latch. See CAUTION.
1
Remove 2 screws, then
remove the top cover
5
Remove the upper
left door cover
