February 2013
4-51
ColorQube® 9303 Family
REP 5.14
Repairs/Adjustments
REP 5.14 Feed Roll Assembly
Parts List on PL 5.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Open the DADH top cover.
2. Remove the DADH feed roll assembly, Figure 1.

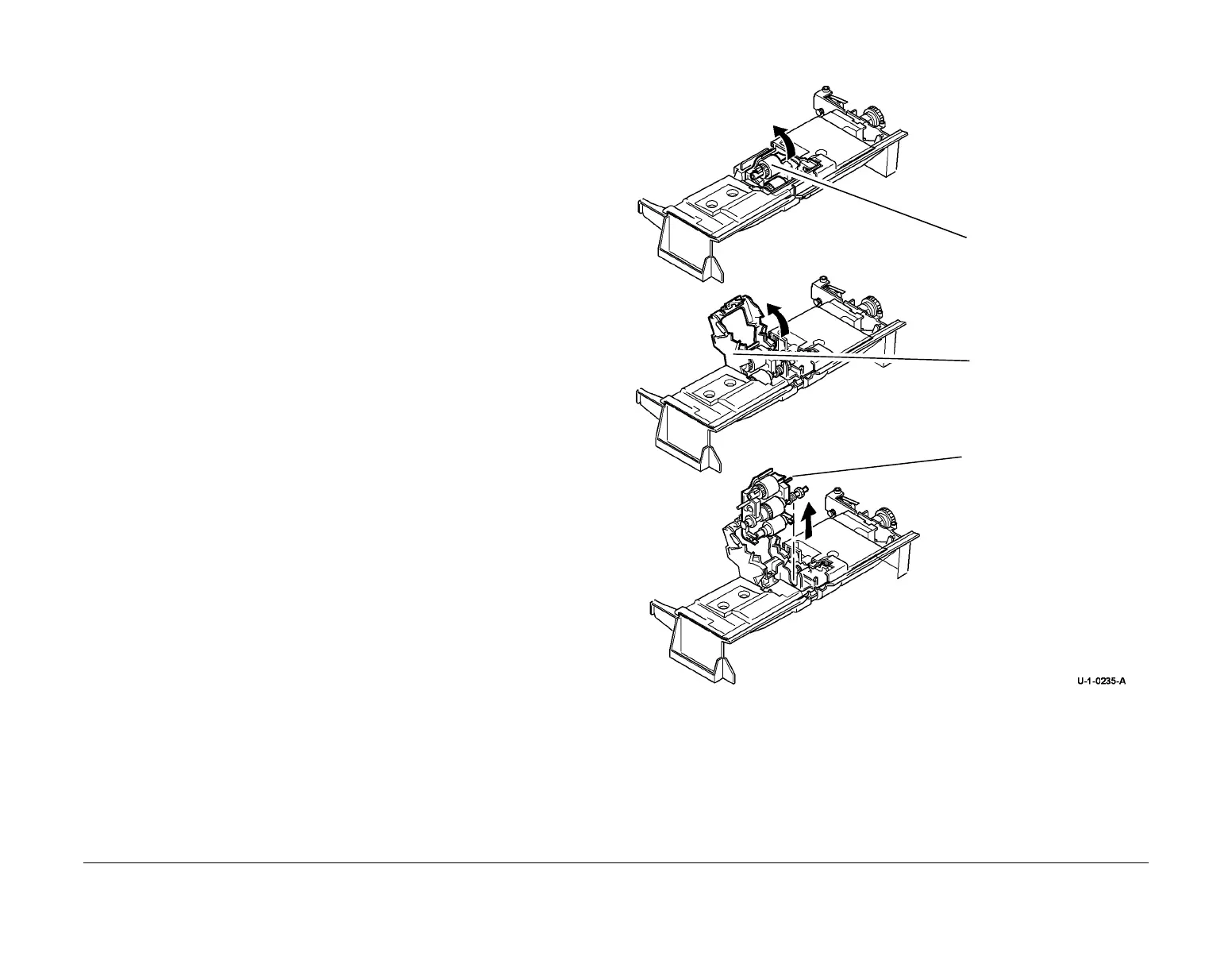

Figure 1 Feed roll assembly
1
Completely raise the feed
roll assembly (2 clicks).
2
Raise the feed roll assembly
cover.
3
Remove the feed roll assem-
bly.
NOTE: There are three rollers on the feed roll
cartridge.
If the lower feed roll does not come out with fee
roll assembly, then remove it separately from th
machine.
To Next Page
