February 2013
5-23
ColorQube® 9303 Family
PL 12.35
Parts Lists

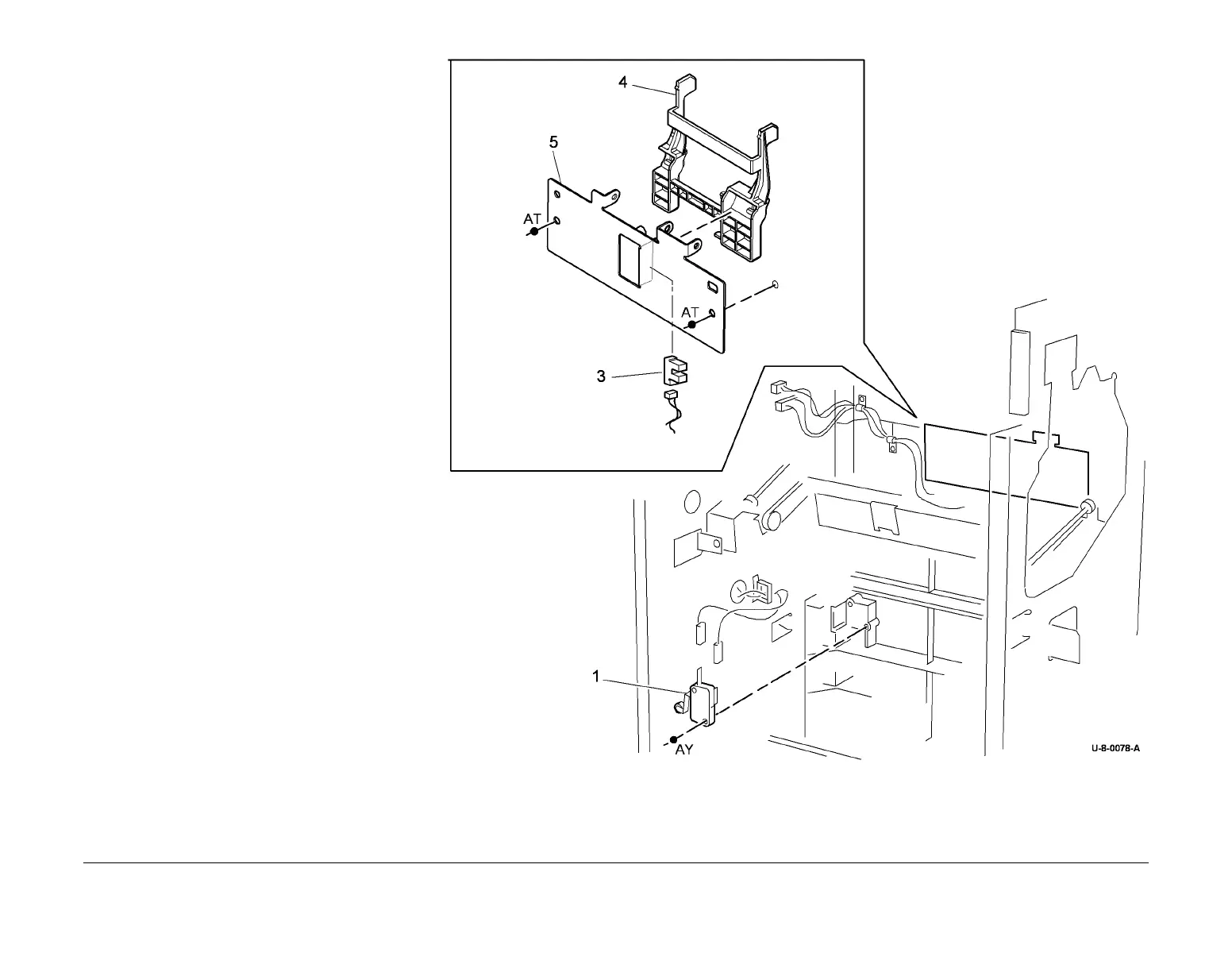

PL 12.35 LCSS Bin 1 Control
Components (2 of 2)
Item Part Description
1 110K13990 Bin 1 lower limit switch (S12-191)
2 – Not used
3 130E10360 Bin 1 Upper level sensor (Q12-188)
(REP 12.11-110)
4 – Actuator (Not spared)
5 – Sensor support assembly (Not
spared)
