February 2013
4-131
ColorQube® 9303 Family
REP 12.6-171
Repairs/Adjustments
REP 12.6-171 HVF Ejector Assembly
Parts List on PL 12.110.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove Bin 1, REP 12.4-171.
2. Remove the right side-cover REP 12.5-171.
3. Remove the rear cover REP 12.1-171.
4. Remove the front and rear pressing plate finger, REP 12.7-171.
5. Disconnect the connectors, Figure 1.

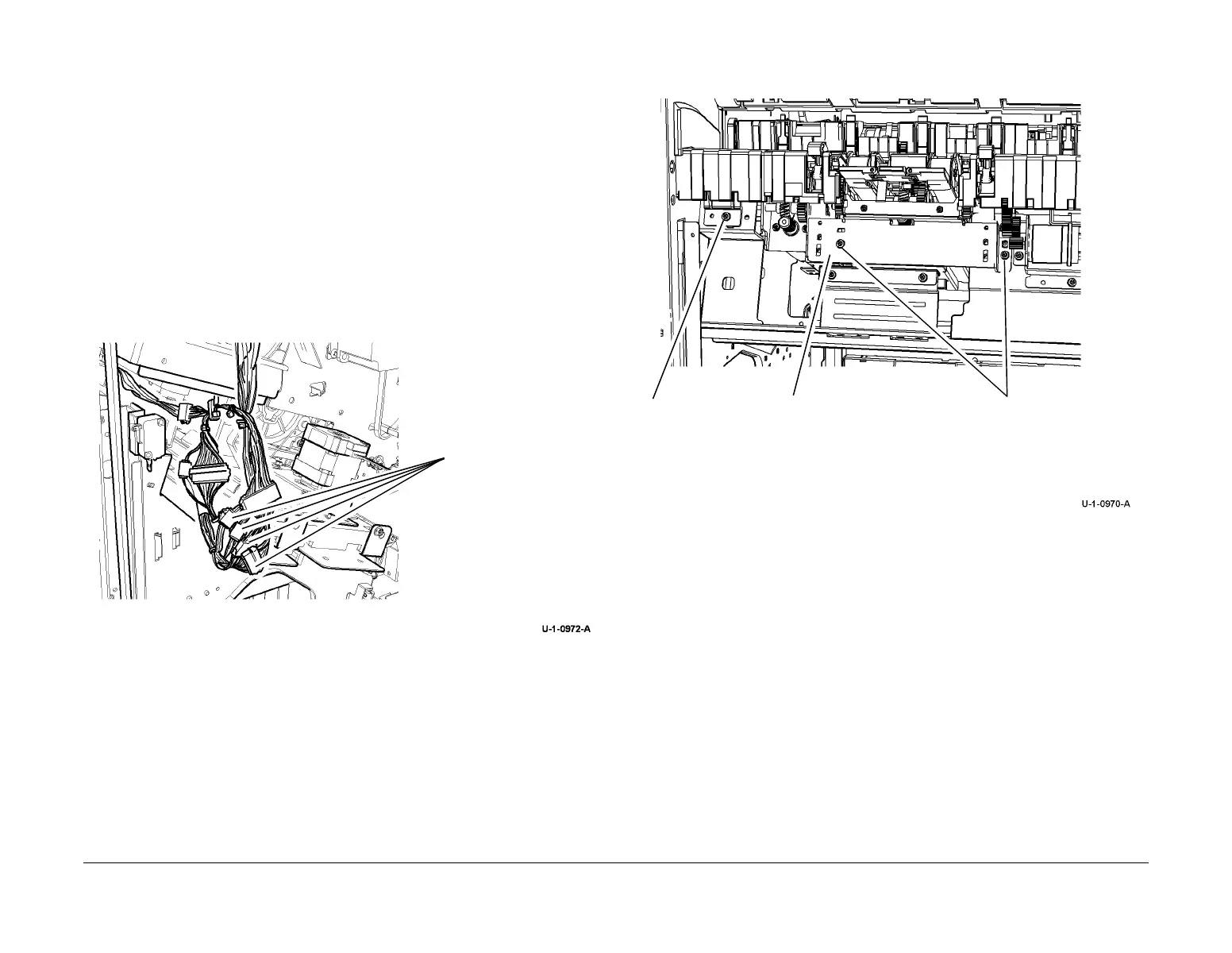

Figure 1 Disconnect the connectors
6. Remove the pressing plate and sensor support bracket. Figure 2.
Figure 2 Pressing plate removal
1
Disconnect 4 harness
connectors to release
the wiring.
1
Remove 2 screws.
2
Remove the pressing plate.
3
Remove 1 screw, then
release the sensor and
support bracket.
