ColorQube® 9303 Family
REP 5.3
Repairs/Adjustments
REP 5.3 Feed Assembly
Parts List on PL 5.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Open the DADH top cover.
2. Remove the DADH rear cover, PL 5.10 Item 1.
3. Remove the feed roll assembly, REP 5.14.
4. Remove the feed assembly, Figure 1.

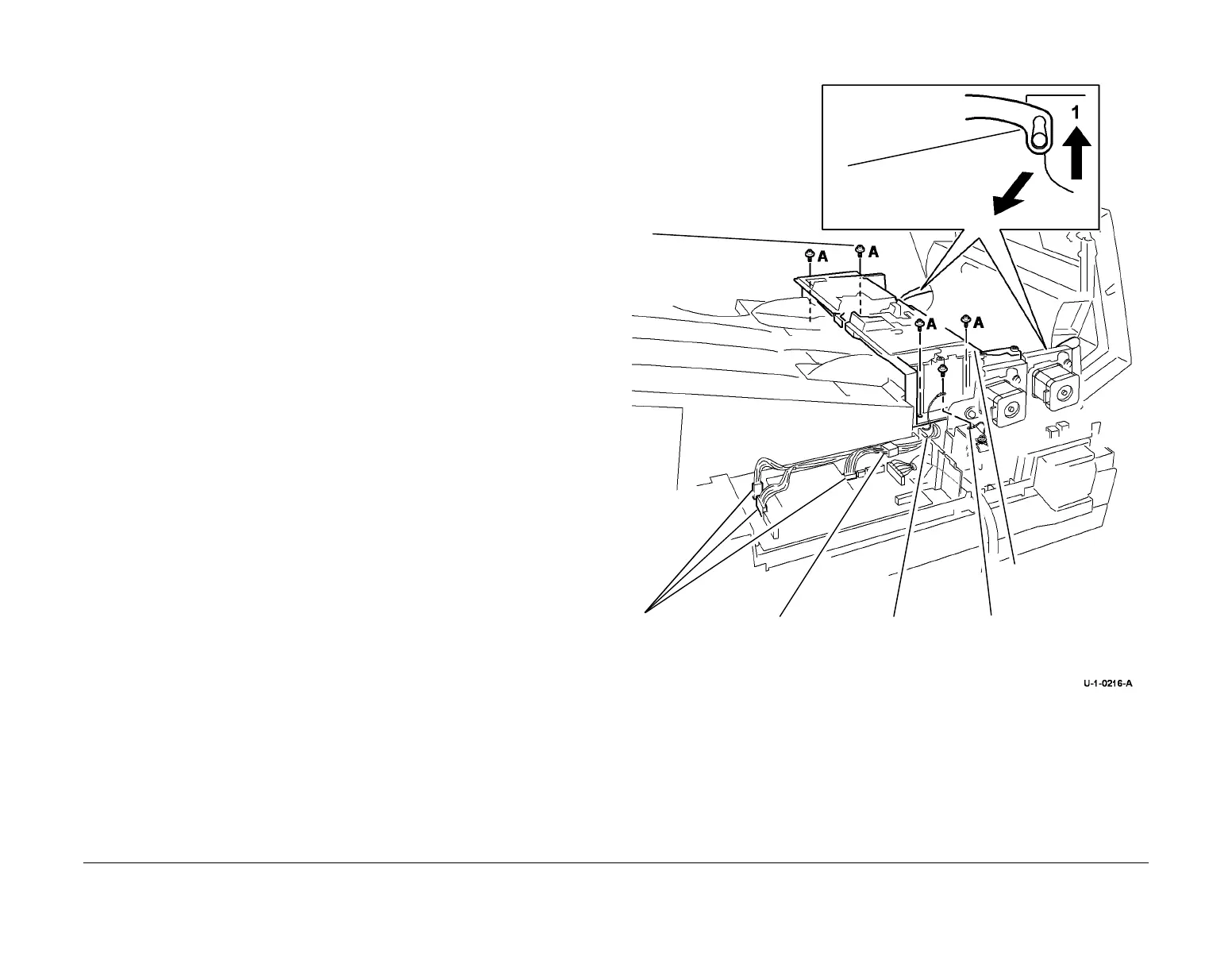

Figure 1 Feed assembly
Replacement
The replacement is the reverse of the removal procedure.
2
Remove 4 self tapping
screws marked A.
1
Disengage the hinges.
5
Release the
harness.
3
Disconnect PJ183,
PJ184 and PJ187.
6
Disconnect the ground
harness.
7
Remove the feed
assembly.
4
Disconnect PJ199.
