February 2013
4-255
ColorQube® 9303 Family
REP 62.8
Repairs/Adjustments
REP 62.8 Scan Drive Belt
Parts List on PL 62.16
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the scan carriage assembly, REP 62.5.
2. Remove the scan motor, REP 62.6.
3. Secure the scan cables, Figure 1.

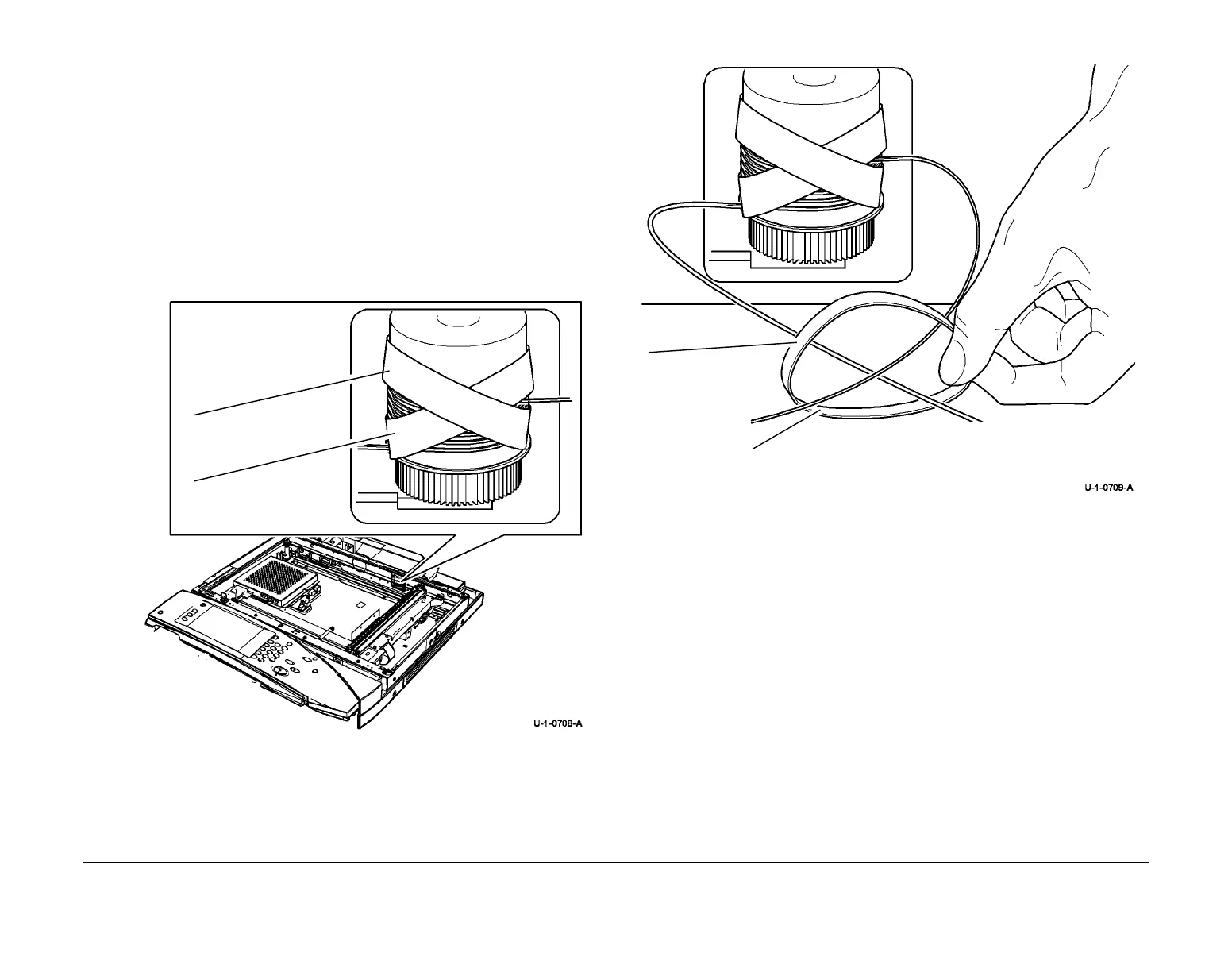

Figure 1 Scan cables and capstan
NOTE: When removing the scan cables from the pulleys, it is not necessary to lift out the
cables from the scanner.
4. Remove the scan cables from the pulleys, REP 62.7.
5. Remove the scan drive belt, Figure 2.
Figure 2 Removal of the scan drive belt
Replacement
1. The replacement procedure is the reverse of the removal procedure.
2. Perform ADJ 62.3 Scanner Motor.
1
Secure the scan cables to
the capstan.
Insulation tape.
2
Carefully thread the scan drive belt over the scan cables.
Remove the scan drive belt.
emove the scan drive
elt from the capstan.
