February 2013
4-300
ColorQube® 9303 Family
REP 82.1, REP 82.2
Repairs/Adjustments
REP 82.1 3 Tray Module Transport Motor
Parts List on PL 73.16
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the rear cover, PL 70.25 Item 8.
2. Remove the 3 tray transport motor, Figure 1.
NOTE: It is important to mark the position of the motor before the motor is removed.

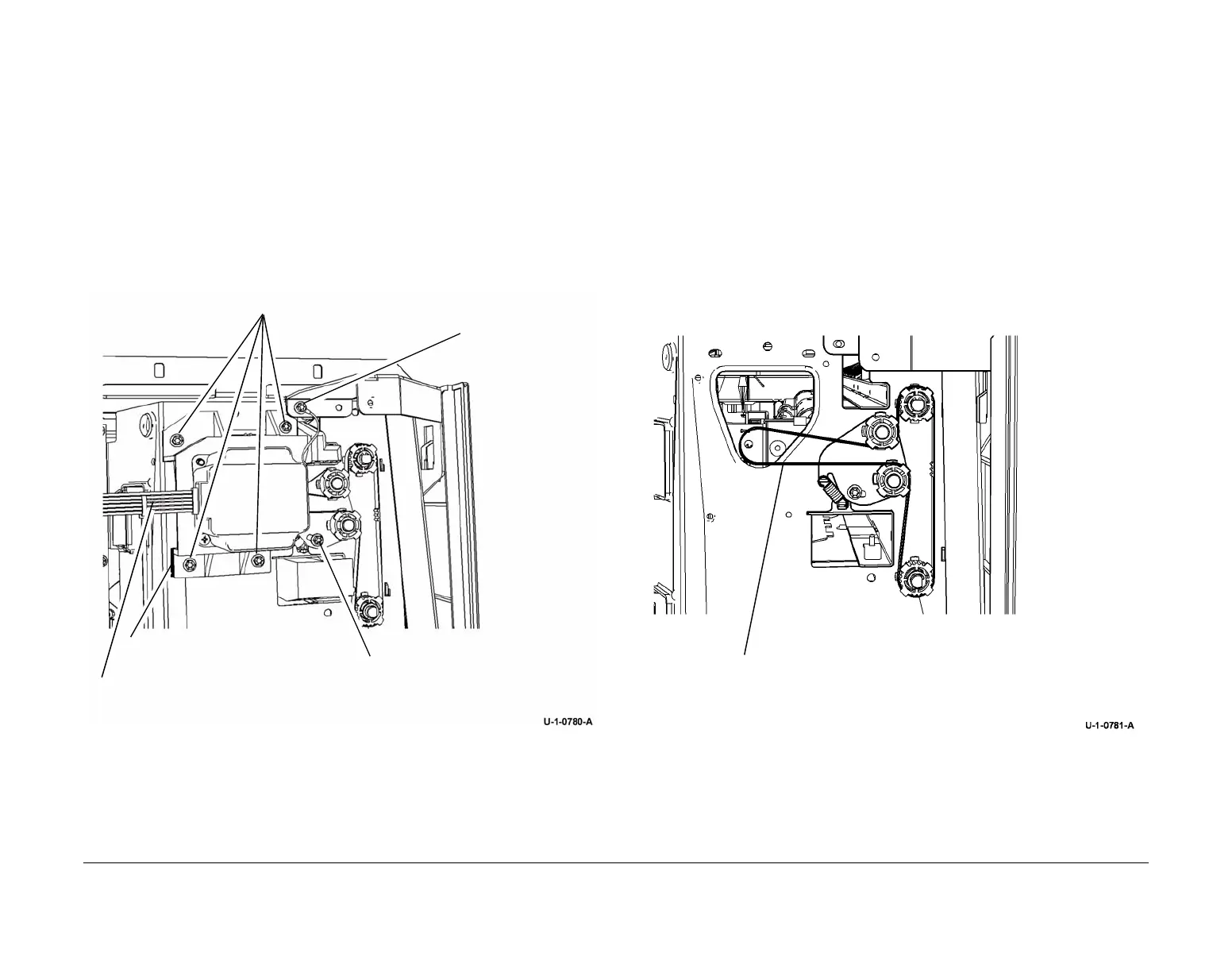

Figure 1 3 tray module transport motor
Replacement
1. Relocate the 3 tray module transport drive belt.
2. Replacement is the reverse of the removal procedure. Ensure that the motor is aligned
with the mark.
3. After completing the replacement procedure, perform the dC625 Registration / Preheat
calibration.
REP 82.2 3 Tray Module Transport Drive Belt
Parts List on PL 73.16
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the rear cover, PL 70.25 Item 8.
2. Remove the 3 tray module transport motor, REP 82.1.
3. Remove the transport drive belt, Figure 1.
Figure 1 Transport drive belt
Replacement
1. Reverse the removal procedure to replace the transport drive belt.
2. After completing the replacement procedure, perform the dC625 Registration / Preheat
calibration.
1
Disconnect harness.
5
Remove 4 screws.
4
Remove screw and
ground wire.
2
Mark the position of the motor.
3
Loosen the belt tension
screw.
1
Remove the transport
drive belt.
To Next Page
