Xerox ColorQube 9303 Series Service Manual

February 2013
5-33
ColorQube® 9303 Family
PL 12.105
Parts Lists

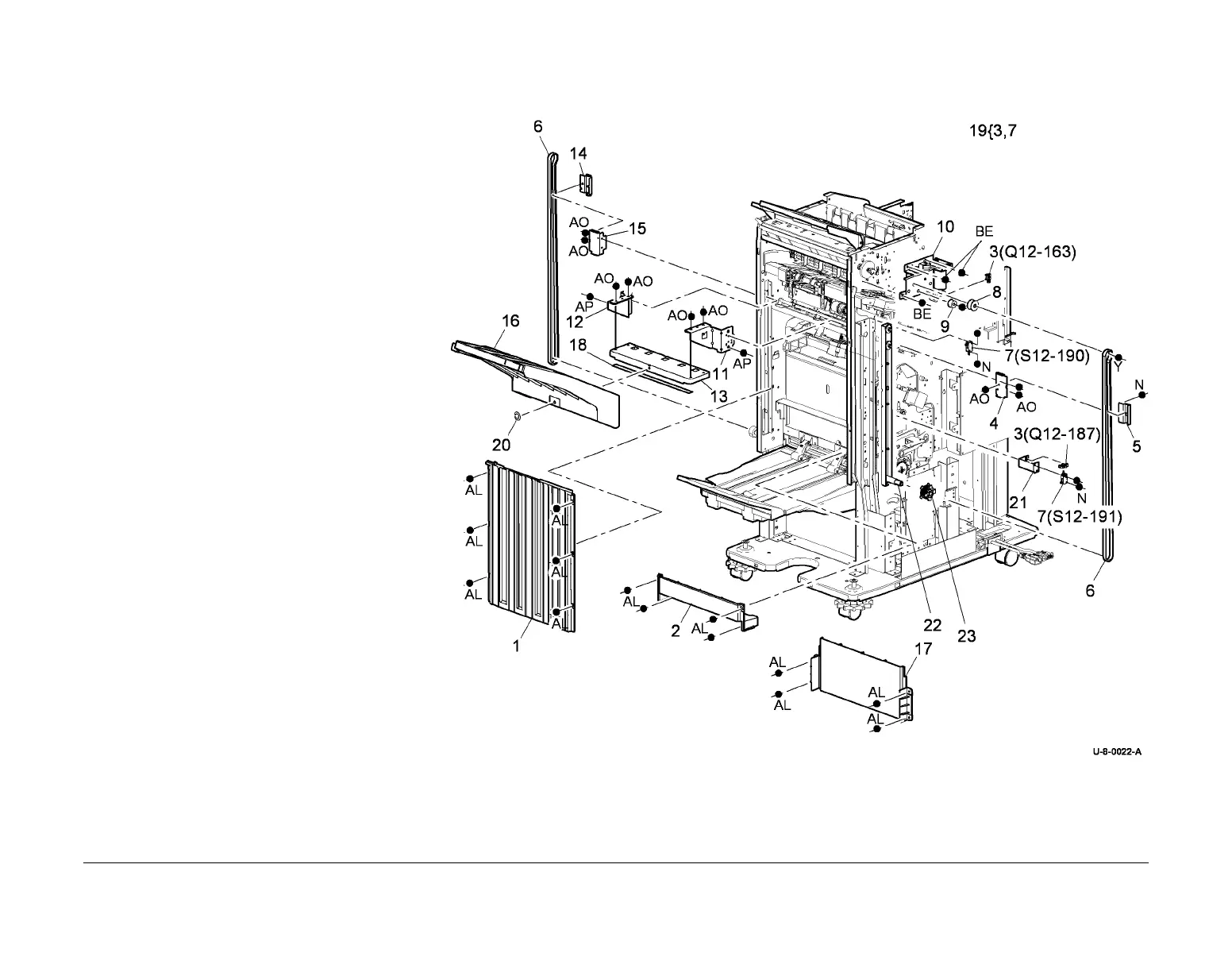

PL 12.105 HVF Stacker
Item Part Description
1 848E40530 Upper right side cover (REP 12.5-
171)
2 848E17840 Lower right side cover
3 130E12830 Bin 1 90% full sensor (Q12-187)/
Bin 1 motor encoder sensor (Q12-
163)
4 – Rear main belt clamp (1 of 2) (Not
spared)
5 – Rear main belt clamp (2 of 2) (Not
spared)
6 023E31220 Bin 1 main drive belt (REP 12.38-
171)
7 110K20890 Bin 1 upper limit switch (REP
12.75-171) (S12-190)/Bin 1 lower
limit switch (REP 12.75-171) (S12-
191)
8 – Main belt pulley (Not spared)
9 – Main belt tensioner (Not spared)
10 127K56591 Bin 1 elevator motor assembly
(MOT12-241) (REP 12.12-171)
11 – Bin 1 rear lift bar bracket (Not
spared)
12 – Bin 1 front lift bar bracket (Not
spared)
13 – Bin 1 lift bar (Not spared)
14 – Front main belt clamp (2 of 2) (Not
spared)
15 – Front main belt clamp (1 of 2) (Not
spared)
16 050E28941 Bin 1 (REP 12.4-171)
17 848E17830 Middle right side cover
18 – Bin 1 lift bar brace (Not spared)
19 110K20880 Stacker full sensor and lower limit
switch assembly (REP 12.75-171)
20 019K13380 Bin 1 retaining clip (REP 12.4-171)
21 – Sensor/switch bracket (Not spared)
22 110K21060 Stacker channel bracket
23 – Pulley (P/O PL 12.105 Item 22)
