February 2013
4-184
ColorQube® 9303 Family
REP 12.46-171, REP 12.47-171
Repairs/Adjustments

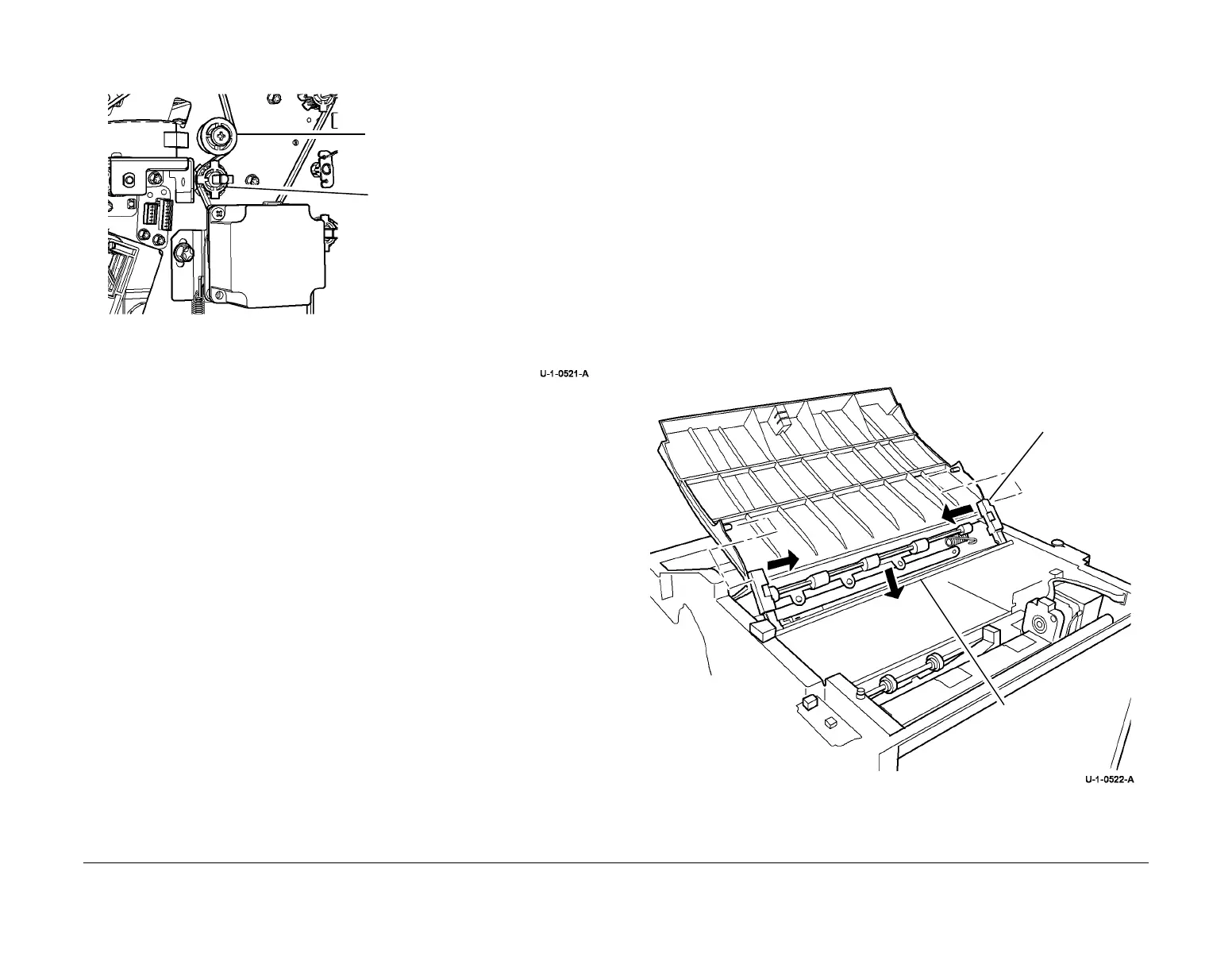

6. Figure 2. Remove the stacker exit feed roll.
Figure 2 Stacker exit feed roll removal.
Replacement
The replacement procedure is the reverse of the removal procedure.
REP 12.47-171 HVF Top Exit Feed Roll
Parts List on PL 12.130.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. If fitted, undock the Inserter, REP 12.82-171.
2. Remove the HVF front door, REP 12.1-171.
3. Remove the HVF top cover, REP 12.1-171.
4. Remove the HVF front cover, REP 12.1-171.
5. Remove the HVF rear cover, REP 12.1-171.
6. Figure 1. Raise the top tray and lower the plate beneath it.
Figure 1 Lowering the plate.
1
Remove the idler,
(1 screw).
2
Remove the circlip,
pulley and bush.
3
Remove the stacker
exit feed roll.
REAR VIEW
1
Release the
two links.
2
Lower the plate.
To Next Page
