ColorQube® 9303 Family
PL 93.10
Parts Lists

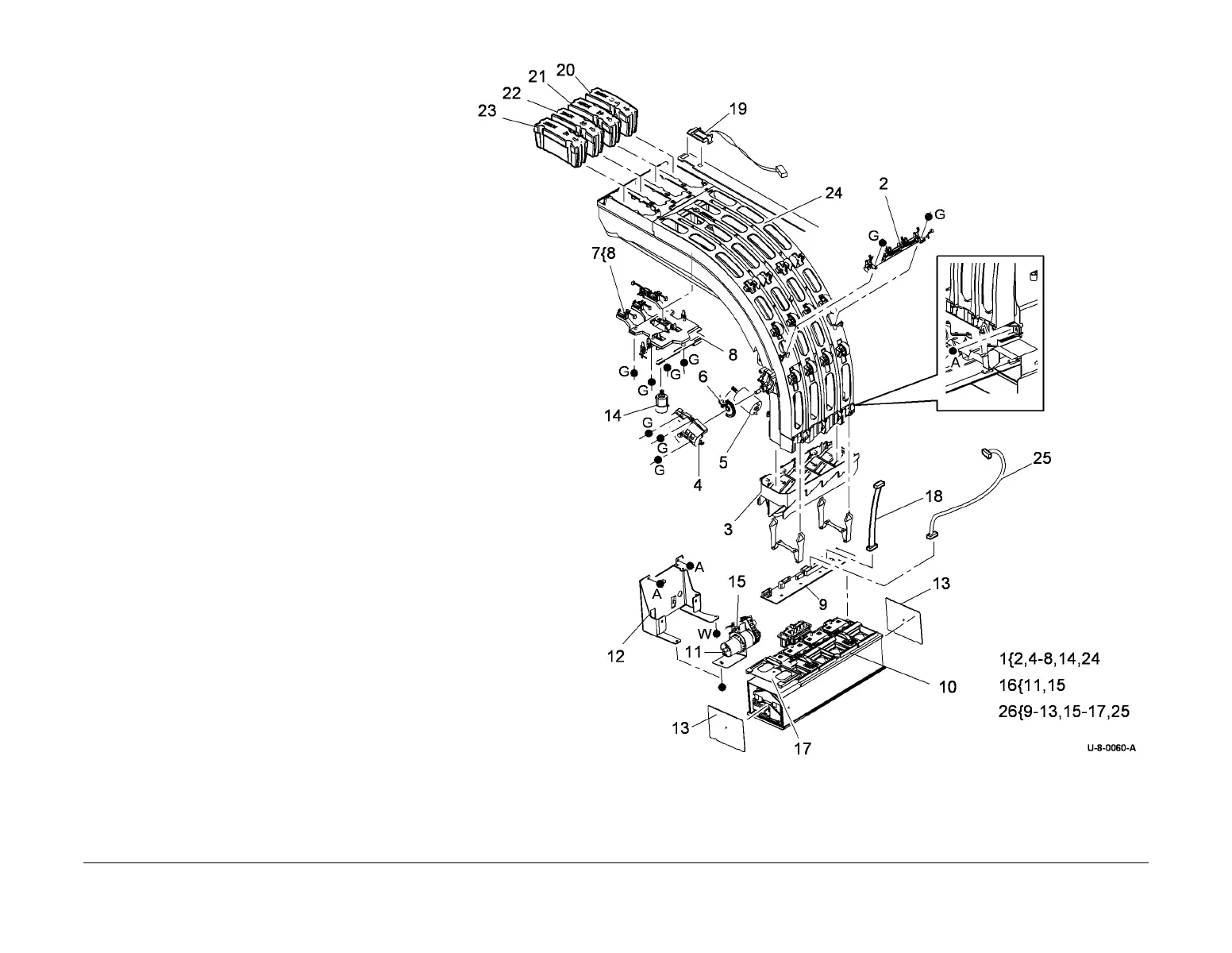

PL 93.10 Ink Loader Assembly
Item Part Description
1 815K11623 Ink loader upper assembly (REP
91.15)
2 130K15852 Ink low sensor assembly (REP
91.19)
3 815K11610 Ink loader melt plate assembly
(REP 91.16)
4 848E34260 Ink transport drive cover
5 127K62270 Ink transport motor (MOT93-048)
(REP 91.18)
6 807E29020 Ink transport drive gear (REP
91.18)
7 130K15870 Ink load sensor assembly (REP
91.17)
8 – Ink load entry PWB (P/O PL 93.10
Item 7) (REP 91.17)
9 – Solenoid patch PWB (P/O PL 93.10
Item 26)
10 – Ink reservoir (P/O PL 93.10 Item
26) (REP 91.20)
11 – Reservoir pump (MOT93-050) (P/O
PL 93.10 Item 16) (REP 91.21)
12 – Reservoir mounting bracket (P/O
PL 93.10 Item 26)
13 057E03690 Side insulation
14 127K62310 Ink keyplate motor (MOT93-051)
15 – LPA valve solenoid (SOL91-045)
(P/O PL 93.10 Item 16)
16 – Reservoir pump assembly (P/O PL
93.10 Item 26)
17 057E03700 Umbilical end insulation
18 117E35640 Ink level sensor cable (PJ760)
19 130E12930 Ink loader door switch
20 – Magenta solid ink stick (REF: PL
26.10 Item 7)
21 – Cyan solid ink stick (REF: PL 26.10
Item 8)
22 – Yellow solid ink stick (REF: PL
26.10 Item 9)
23 – Black solid ink stick (REF: PL 26.10
Item 10)
24 – Ink loader housing (P/O PL 93.10
Item 1)
25 – Harness, Solenoid patch PWB to
Marking unit heater PWB (PJ630 to
PJ801) (P/O PL 93.10 Item 26)
26 604K67923 Ink reservoir assembly (REP 91.20)
