Xerox ColorQube 9303 Series Service Manual

February 2013
6-82
ColorQube® 9303 Family
GP 28, GP 29
General Procedures/Information

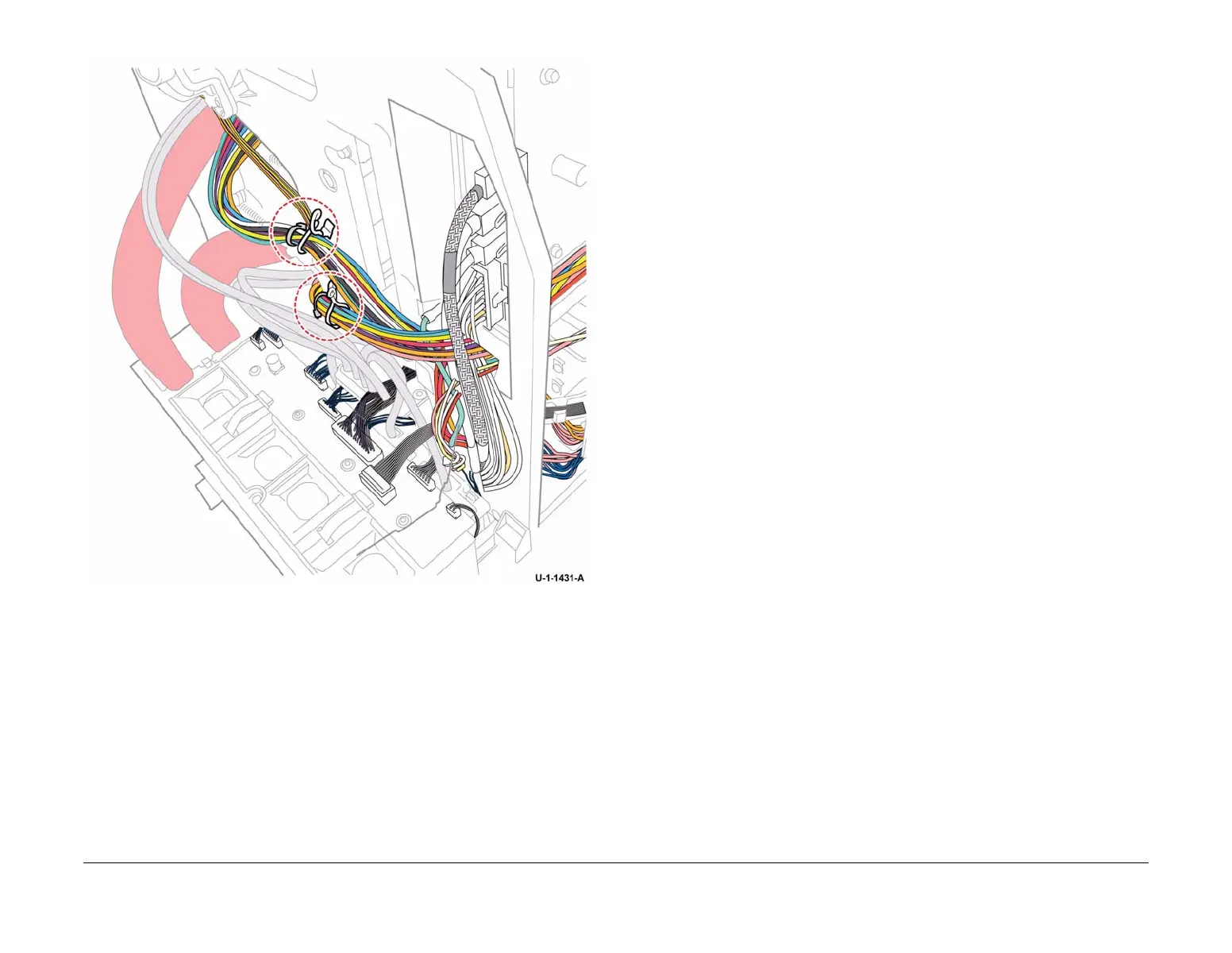

Figure 2 Harness routing
GP 29 Component Locations
Purpose
• To identify the locations of major assemblies within the machine
• To identify the locations of rollers, sensors and jam zones along the paper path.
Refer to the relevant section:
• Front Component Location
• Rear Component Location
• Roller Locations, Sensor Locations and Jam Zones
• Document Handler (DADH)
• Low Capacity Stapler Stacker (LCSS)
• High Volume Finisher (HVF)
