Xerox ColorQube 9303 Series - REP 3.6 Drum Driver PWB

February 2013
4-30
ColorQube® 9303 Family
REP 3.6
Repairs/Adjustments
REP 3.6 Drum Driver PWB
Parts List on PL 1.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.

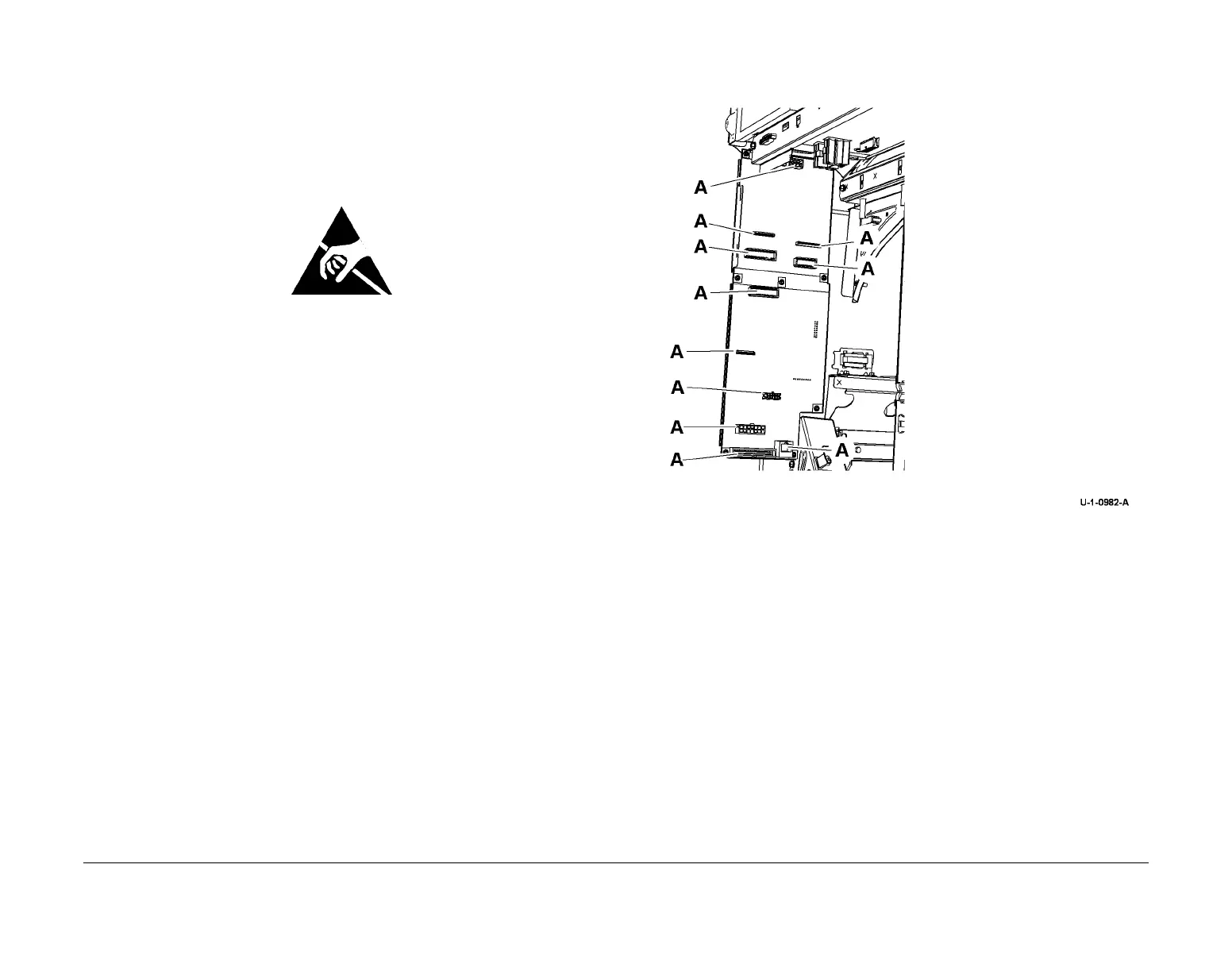

Figure 1 ESD Symbol
CAUTION
Ensure that ESD procedures are observed during the removal and installation of the drum
driver PWB.
1. Remove the rear cover, PL 81.10 Item 1.
2. Remove the enclosure fan, PL 1.15 Item 6.
3. Disconnect the PJs, Figure 2.
Figure 2 Disconnect PJs
1
Disconnect PJs marked A.
