ColorQube® 9303 Family
REP 5.16, REP 5.17
Repairs/Adjustments
4. Remove the document width sensor, Figure 1.

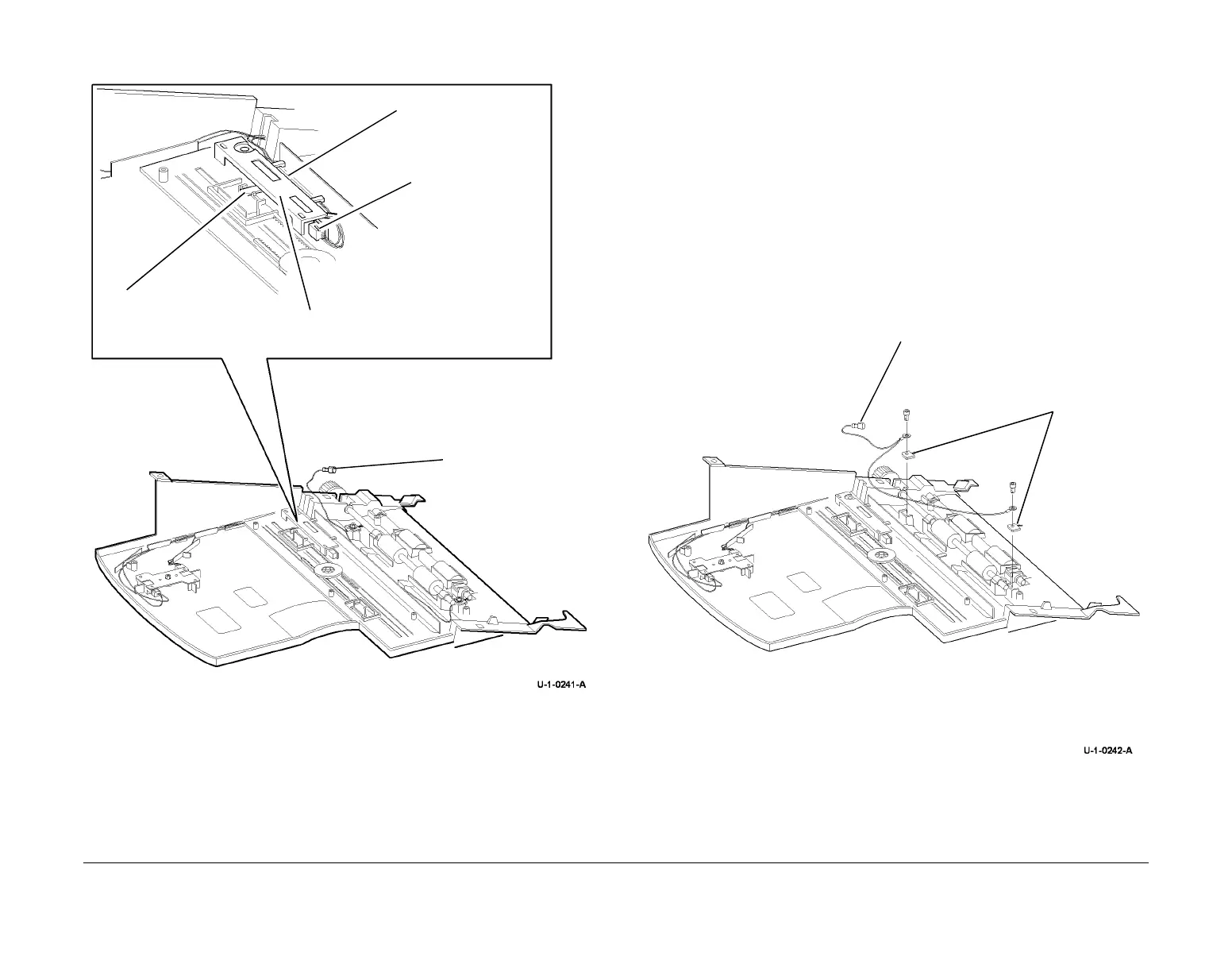

Figure 1 Document width sensor
Replacement
The replacement is the reverse of the removal procedure. Make sure the document width sen-
sor arm is attached correctly, refer to Figure 1.
REP 5.17 Input Tray Static Eliminator
Parts List on PL 5.35
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the input tray assembly, REP 5.4.
CAUTION
Disconnect the ground harness from the static eliminator before the input tray assembly lower
cover is removed, refer to Figure 1
2. Turn the input tray assembly upside down, then remove the Lower cover (right), PL 5.35
Item 9 and Lower cover (left), PL 5.35 Item 20.
3. Remove the input tray static eliminators, Figure 1.
Figure 1 Static eliminators
Replacement
The replacement is the reverse of the removal procedure.
1
Release the harness.
2
Disconnect PJ193.
3
Remove the document width sensor.
Arm
Ground harness.
1
Remove the
correct static
eliminator.
Ground harness.
