REP 75.5, REP 75.6
Repairs/Adjustments
4. Remove the tray 5 upper limit switch and the actuator if required, Figure 2.

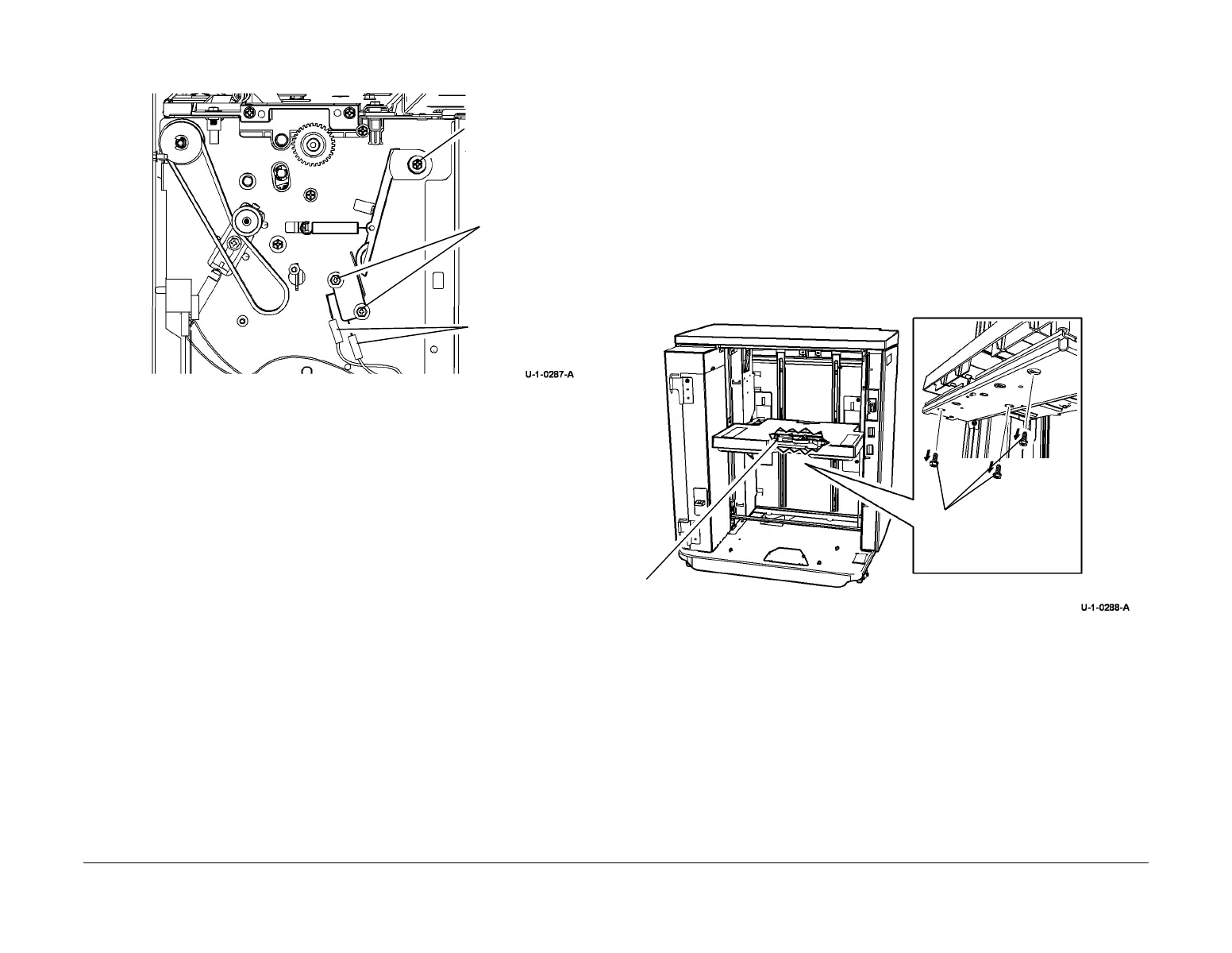

Figure 2 Remove tray upper limit switch
Replacement
1. The replacement is the reverse of the removal procedure.
REP 75.6 Tray 5 Down Limit Switch
Parts List on PL 75.70
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present can cause injury.
1. If the tray must be repositioned, refer to REP 75.4. Disengage the elevator motor from the
tray and move the tray to the required position. Re-engage the elevator motor to hold the
tray.
2. Release the paper tray to gain access to the tray 5 down limit switch, Figure 1.
Figure 1 Release the paper tray
3
Remove screw and
release the spring to
remove the actuator
2
Remove two
screws and
remove switch
1
Disconnect harness
1
Remove three screws
Tray 5 down limit switch
