February 2013
4-356
ColorQube® 9303 Family
REP 91.23
Repairs/Adjustments
REP 91.23 Front and Rear Track Guide
Parts List on PL 94.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the IOD assembly, REP 91.22.
2. Remove the front track guide, Figure 1.

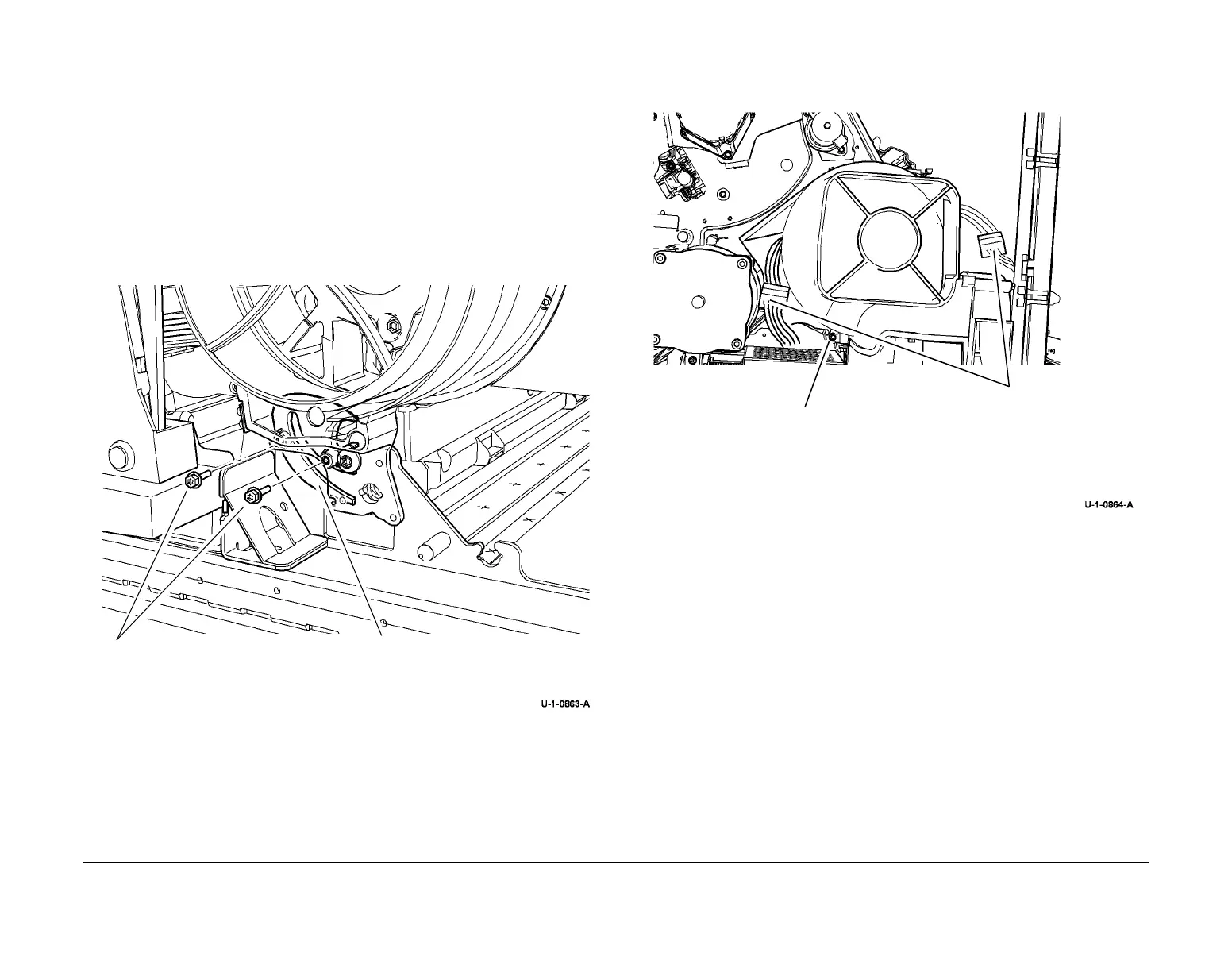

Figure 1 Front track guide removal
3. Remove the drum and abatement fan assembly from the rear of the machine, Figure 2.
Figure 2 Drum and abatement fan removal
1
Remove 2 gold screws.
2
Remove the front track guide
from behind the front bracket.
2
Remove the screw then the
drum and abatement fan
assembly.
1
Disconnect harnesses.
To Next Page
