February 2013
4-123
ColorQube® 9303 Family
REP 12.1-171
Repairs/Adjustments
REP 12.1-171 HVF Covers
Parts List on PL 12.100
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
NOTE: All major HVF covers are dealt with in this procedure, only remove the covers listed for
the procedure that you are performing.
Remove the HVF covers as follows:
1. Remove the front door, Figure 1. If required, remove 5 screws to separate the door sup-
port from the front door.

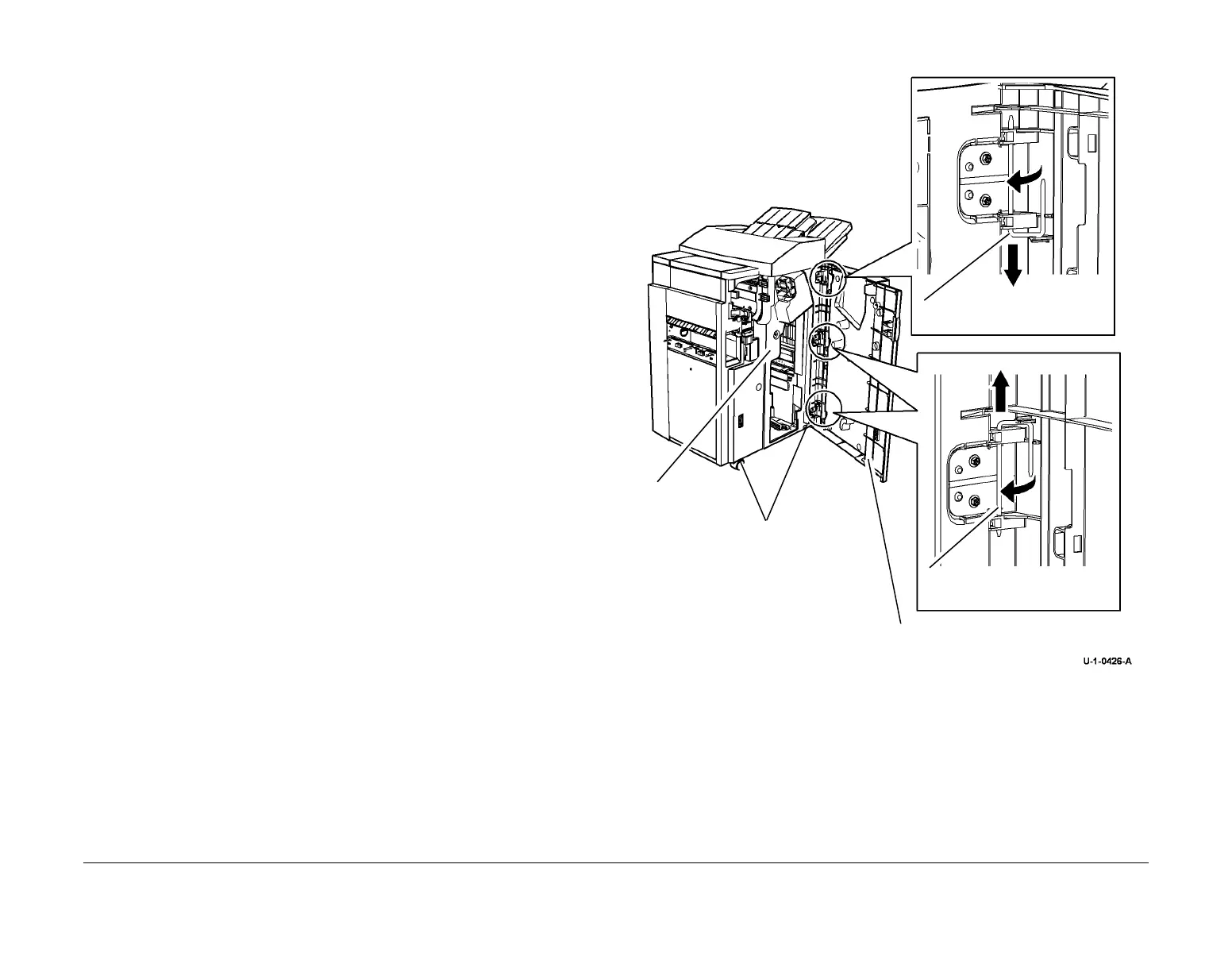

Figure 1 Front door removal
Locating tabs
2
Remove the hinge pin (2 places).
1
Remove the hinge pin.
Front cover
3
Remove the front door.
