February 2013
4-406
ColorQube® 9303 Family
ADJ 12.5-171, ADJ 12.6-171
Repairs/Adjustments

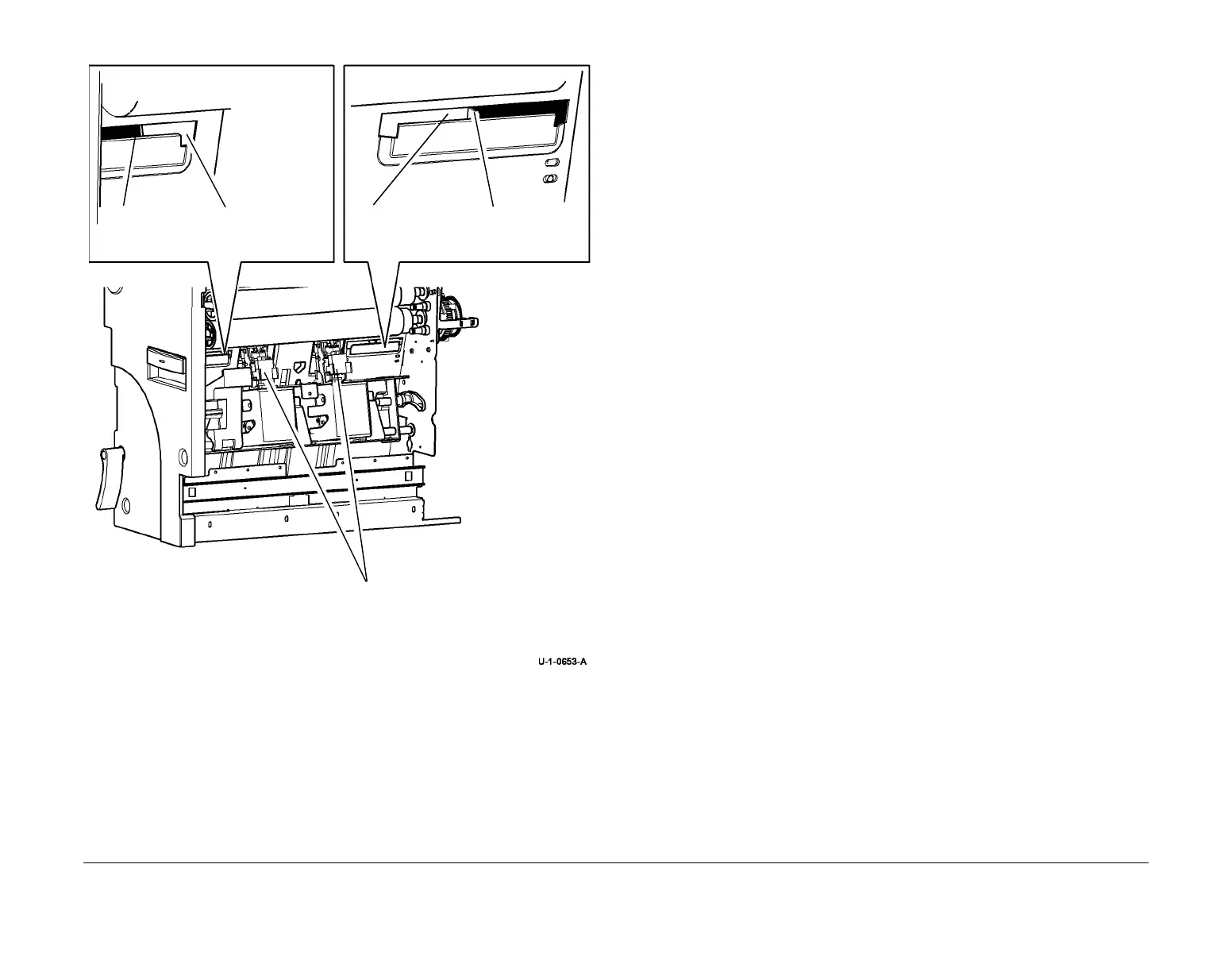

Figure 1 Observing the tamper positions.
ADJ 12.6-171 Booklet Compiling Position
Purpose
To set the compiling position to ensure correct compiling without damage. When the compiling
position is correctly set, each sheet is fed behind the BM entry roll to rest against the right side
of the compiler.
Procedure
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 14. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.
Go to the appropriate check and adjustment from the following options:
• If only A4 paper is available, go to A4 Paper Procedure.
• If only 8.5 X 11 inch paper is available, go to 8.5 X 11 Inch Procedure.
A4 Paper Procedure
Check
1. Open the HVF BM front door and insert an interlock cheater into the front door interlock
switch.
2. Fully pull out the BM module and release the jam clearance handle PL 12.150 Item 8, fully
open the paper guide PL 12.150 Item 7.
3. Enter Diagnostic Routine dC330 code 12-255 BM Backstop Motor, select Start, allow the
backstop to raise to the receive position (where it will pause), select Stop.
4. Insert a single sheet of A4 paper short edge downward into the booklet maker compiling
area, so that it rests on the backstop and is approximately central front to back. Tuck the
top of the sheet behind the BM entry roll, PL 12.150 Item 15.
5. If the BM right hand cover does not have a viewing hole, remove the BM right hand cover,
REP 12.56-171.
Front tamper
Rear tamper
Booklet maker staplers
Paper sheet
Paper sheet
