ColorQube® 9303 Family
PL 12.200
Parts Lists

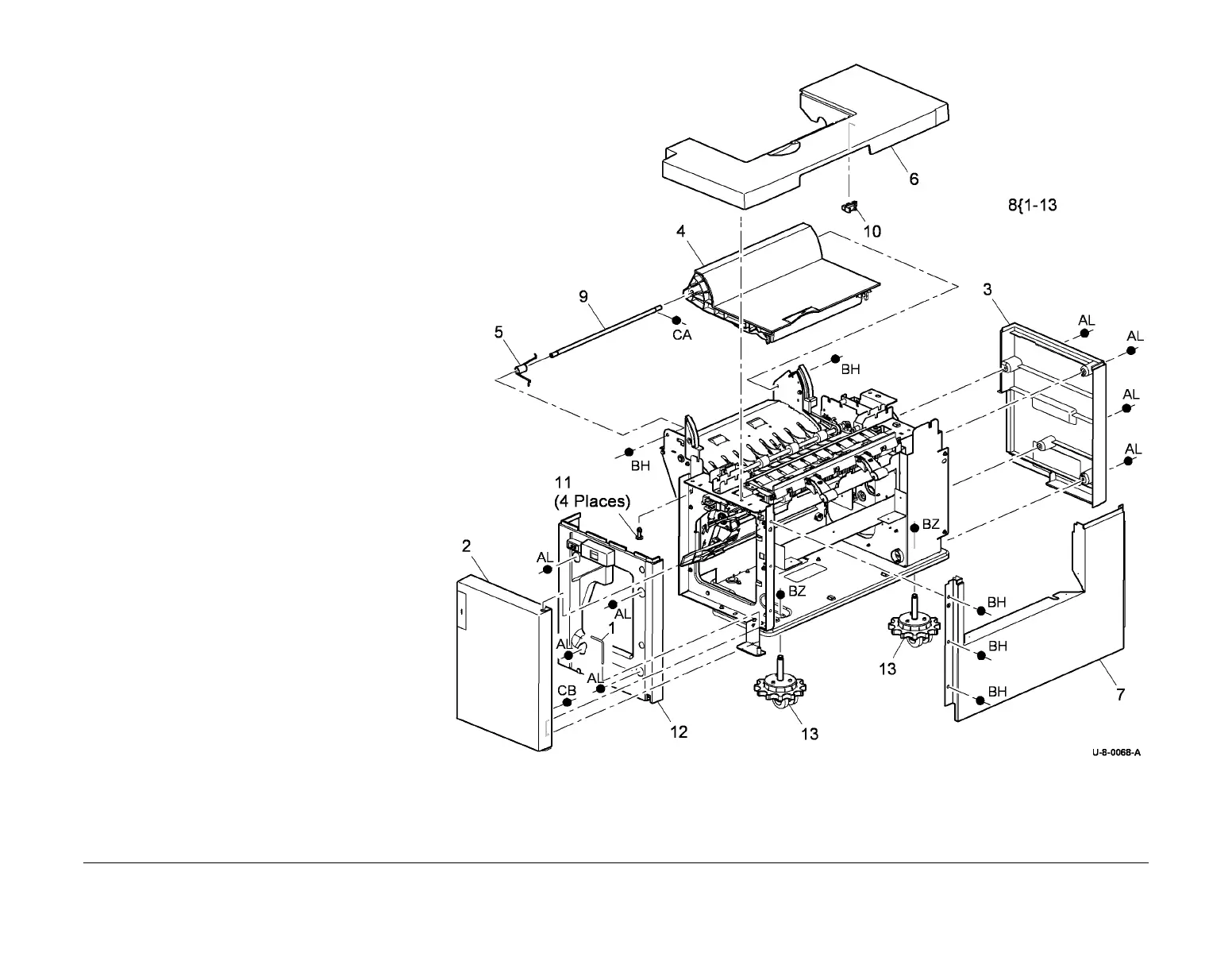

PL 12.200 Tri-Folder Covers
Item Part Description
1 – Door pin (Not spared)
2 802K94010 Front cover assembly (REP 12.67-
171)
3 848K11740 Rear cover (REP 12.67-171)
4 – Top cover door assembly (P/O PL
12.200 Item 8) (REP 12.73-171)
5 – Top cover door assembly spring (P/
O PL 12.200 Item 8)
6 802E93931 Top cover
7 848E17430 Right hand side cover (REP 12.67-
171)
8 – Tri-Folder (complete) (Not spared)
9 – Top cover door assembly shaft (P/O
PL 12.200 Item 8)
10 107E26490 Tri fold top cover interlock sensor
(Q12-210) (REP 12.77-171)
11 – Top cover locking stud (Not spared)
12 802E99581 Front cover
13 017K04190 Caster
NOTE: For detail of bin 2, refer to PL 12.190.
