February 2013
4-92
ColorQube® 9303 Family
REP 10.20, REP 10.21
Repairs/Adjustments

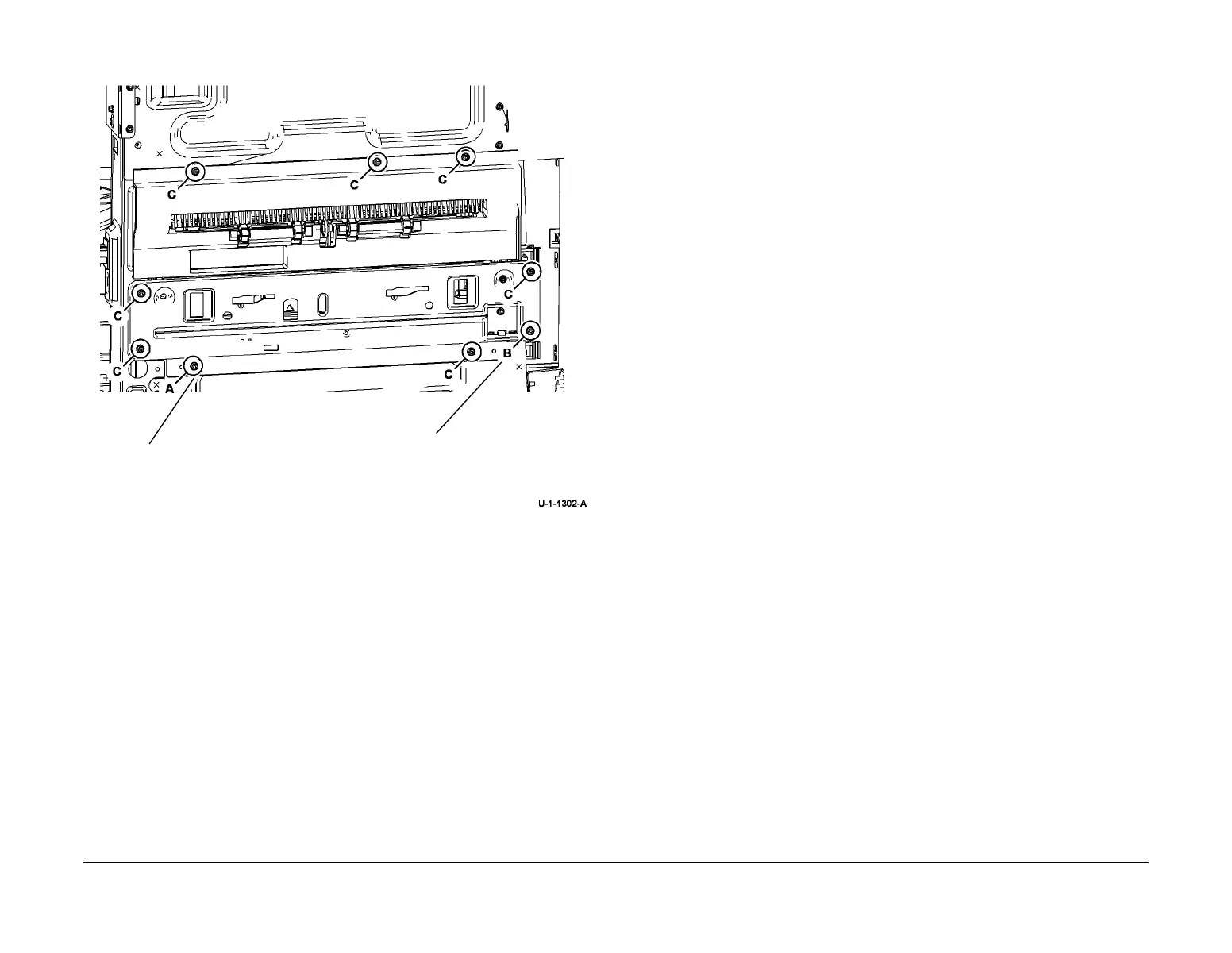

3. Install the exit path, Figure 4.
Figure 4 Securing the exit path
4. Transfer the finisher docking actuator, PL 12.100 Item 17, if present, from the old exit
paper path assembly to the new exit paper path assembly.
REP 10.21 Stripper Blade, Gate and Baffle
Parts List on PL 10.12
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. The stripper blade is very sharp and can cause injury.
WARNING
Do not clean the stripper blade. The stripper blade is very sharp and can cause injury. If
the stripper blade is dirty a new blade must be installed.
CAUTION
Use care when working near the drum. The drum can be damaged easily, which will cause
print quality defects.
1. Open the front door.
2. Remove the inner cover, PL 81.11 Item 2.
3. Open the stripper gate, GP 31.
4. Remove the stripper blade retaining tool from the base of the machine, refer to Figure 4.
5. Use the stripper blade retaining tool to secure the stripper blade in the safe removal posi-
tion, Figure 1.
1
Install screw A
2
Install screw B
3
Install the remaining screws
marked C in any order
To Next Page
