Xerox ColorQube 9303 Series Service Manual

February 2013
4-93
ColorQube® 9303 Family
REP 10.21
Repairs/Adjustments

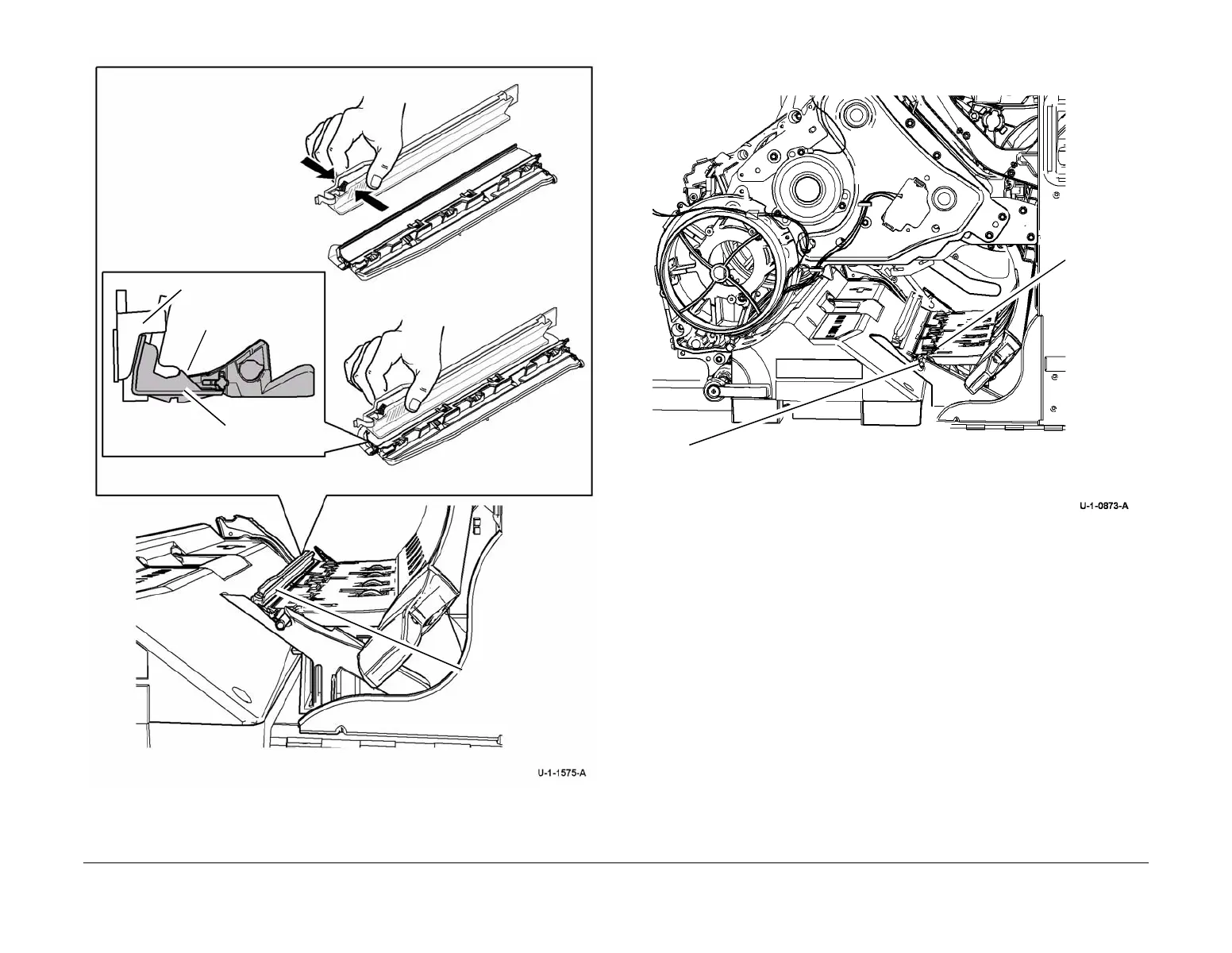

Figure 1 Secure the stripper blade
6. Remove the stripper blade with the stripper blade retaining tool attached, Figure 2.
Figure 2 Stripper blade removal
Stripper blade and
retaining tool
1
Squeeze as indicated to open the
stripper blade retaining tool.
2
Position the stripper blade retaining
tool over the stripper blade and
under the cover.
Stripper blade retaining
tool
Stripper blade
Cover
END VIEW
2
Withdraw the shaft then remove the stripper blade with the retaining tool
attached.
1
Depress the
catch to
release the
stripper
shaft.
