February 2013
4-306
ColorQube® 9303 Family
REP 82.7, REP 82.8
Repairs/Adjustments

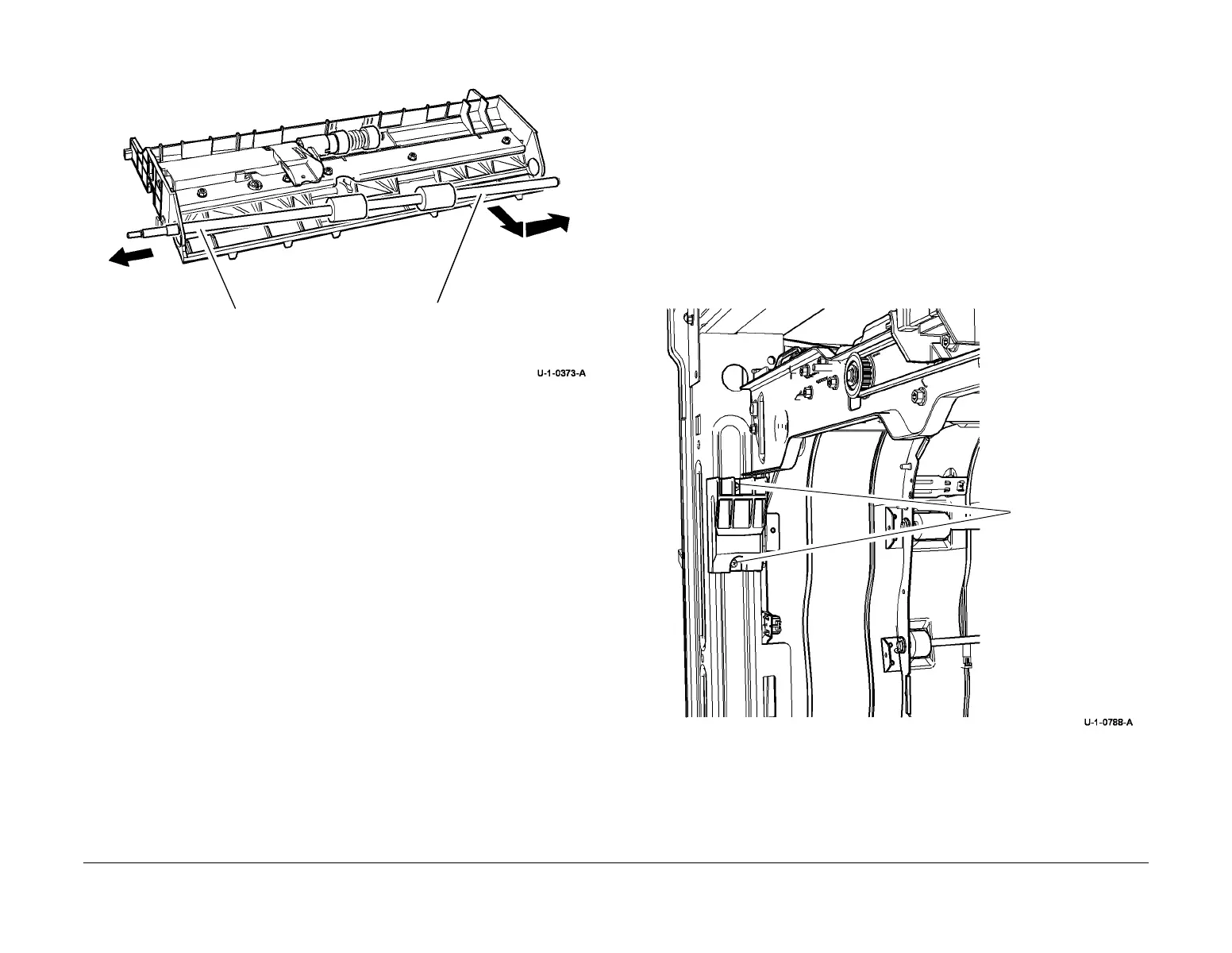

8. Remove the takeaway roller, Figure 4.
Figure 4 Remove the takeaway roller
Replacement
1. The replacement is the reverse of the removal procedure.
2. Check that the cable routing is correct, Figure 1.
REP 82.8 Confirm Sensor
Parts List on PL 82.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Open the front door and remove the inner cover, PL 81.11 Item 2.
2. Pull out the marking engine, refer to Marking Unit Service Positions, GP 6.
3. Remove the marking engine plastic guide, Figure 1.
Figure 1 Remove marking engine plastic guide
1
Move the takeaway
roller to the rear
2
Remove the takeaway
roller from the lower feed
assembly
1
Remove 2 screws
