ColorQube® 9303 Family
PL 12.160
Parts Lists

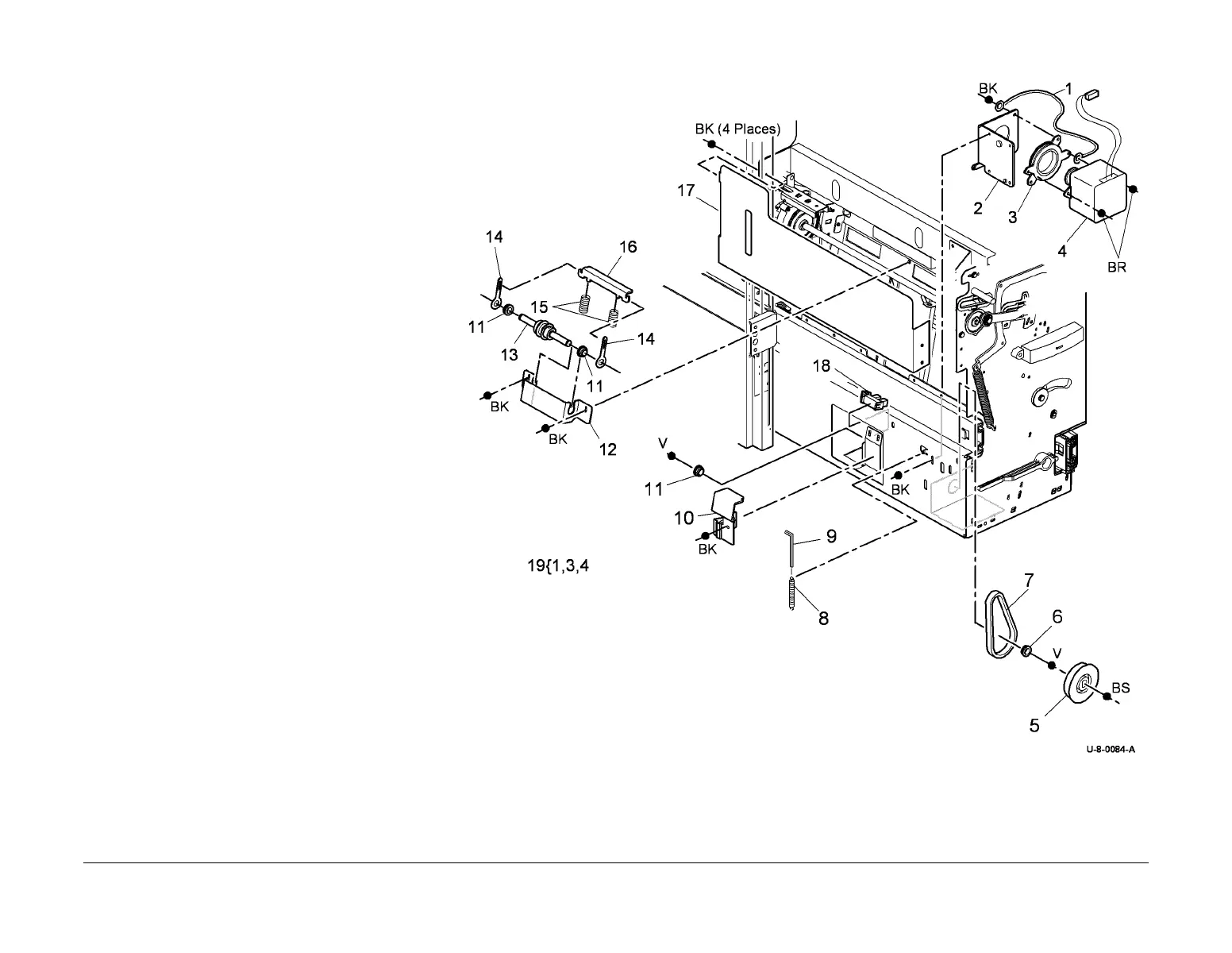

PL 12.160 HVF BM Back Stop Motor
Item Part Description
1 – Ground wire (P/O PL 12.160 Item
19)
2 – Motor bracket (Not spared)
3 – Motor damper (P/O PL 12.160 Item
19) (REP 12.20-171)
4 – BM back stop motor (MOT12-255)
(P/O PL 12.160 Item 19) (REP
12.20-171)
5 – Pulley (Not spared)
6 – BM back stop bearing (Not spared)
(REP 12.26-171)
7 023E23300 BM back stop drive belt (REP
12.20-171)
8 809E78370 BM back stop tensioner spring
(REP 12.20-171)
9 – Allen key (3mm) (Not spared)
10 848E40480 Sensor cover
11 – BM back stop bearing (Not spared)
(REP 12.26-171)
12 – BM back stop idler bracket (Not
spared) (REP 12.26-171)
13 – BM back stop idler shaft (Not
spared)
14 – BM back stop tensioner link (Not
spared)
15 809E25100 BM back stop link spring (REP
12.26-171)
16 012E20870 BM back stop link (REP 12.26-171)
17 – LH frame plate (Not spared)
18 107E22600 BM guide home sensor (Q12-204)
19 127K54710 BM back stop motor assembly
(REP 12.20-171)
To Next Page
