February 2013
5-20
ColorQube® 9303 Family
PL 12.20
Parts Lists

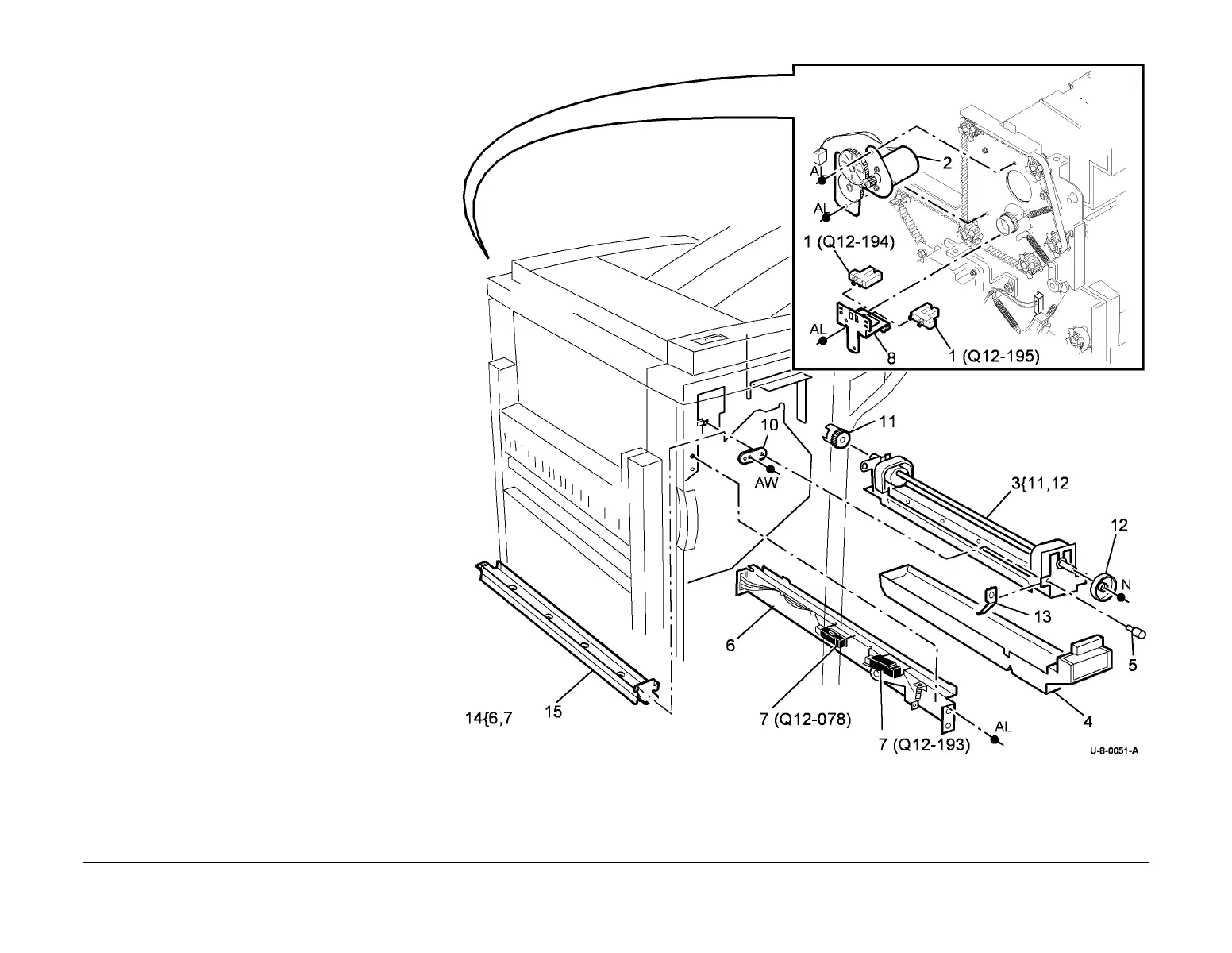

PL 12.20 LCSS Hole Punch Unit
Item Part Description
1 130E10360 Punch head home sensor (Q12-
194), Punch head present sensor
(Q12-195) (REP 12.7-110)
2 127K55900 Punch head motor assembly
(MOT12-243) (REP 12.7-110)
3 – Hole punch unit (see below for
variants) (REP 12.7-110, ADJ 12.3-
110) (See NOTE)
– 180K01330 2 Hole (XE)
– 180K01340 3 Hole (USSG/XCL)
4 093E03930 Chad bin
5 – Thumbscrew (Not spared)
6 – Bracket (P/O PL 12.20 Item 14)
7 130E10380 Punch sensor 1 (Q12-078), Chad
bin level sensor (Q12-193) (P/O PL
12.20 Item 14) (REP 12.7-110)
8 – Sensor bracket (Not spared)
9 – Not used
10 – Bracket (Not spared)
11 – Punch drive gear (Not spared)
12 – Punch cam (Not spared)
13 – Punch spacer (Not spared)
14 – Punch sensor assembly (Not
spared)
15 014K10610 Hole punch assembly cover
NOTE: Refer to PL 31.10 Item 5 for other LCSS hole punch
kits.
