February 2013
4-292
ColorQube® 9303 Family
REP 81.4
Repairs/Adjustments
3. Remove tray 1 or tray 2 feed rolls, Figure 2.
NOTE: The removal procedure is the same for tray 1 or tray 2. The feed and nudger rolls
are the same diameter but the retard roll has a larger diameter.

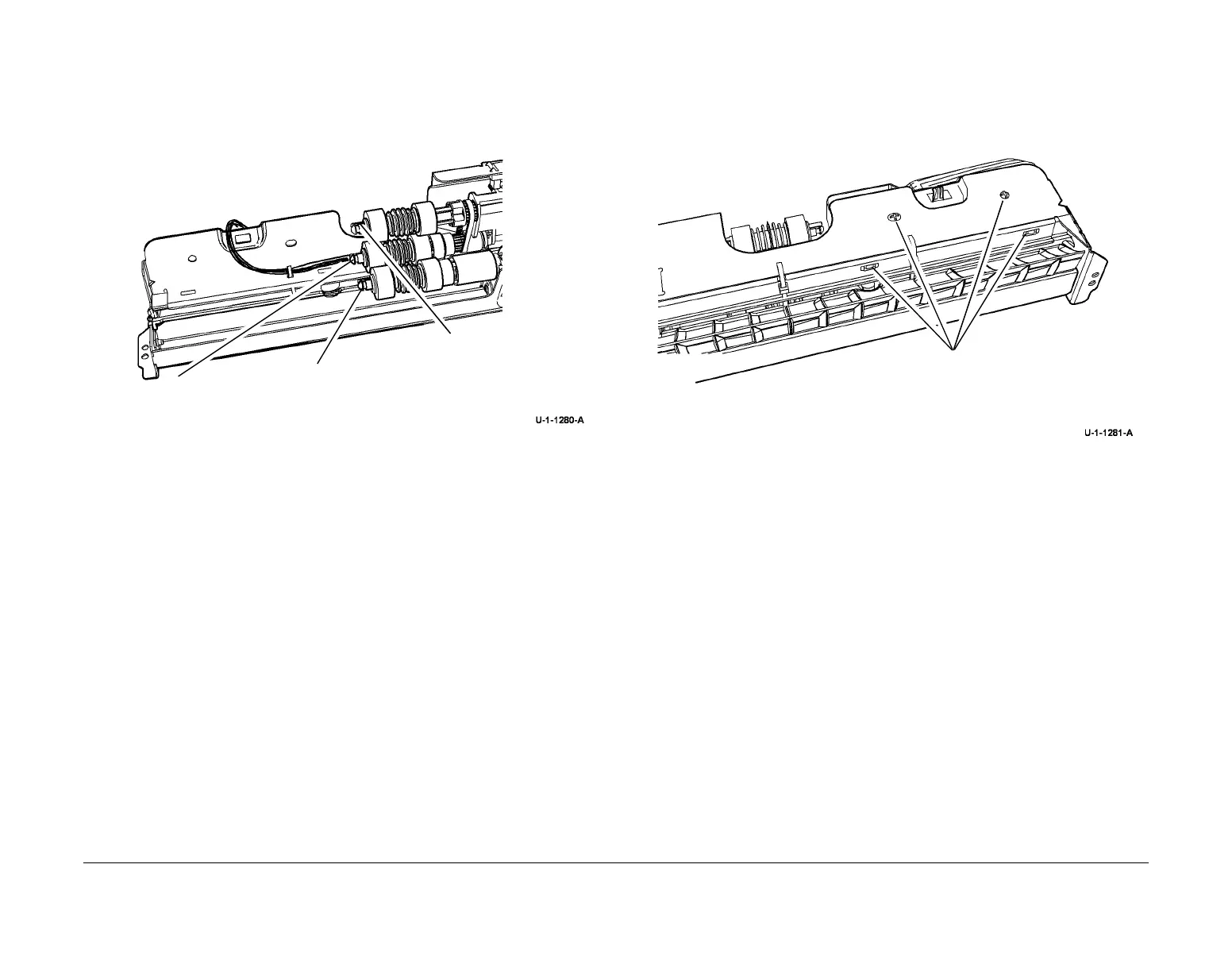

Figure 2 Remove the feed rolls
Replacement
1. The replacement is the reverse of the removal procedure.
2. Make sure that the tabs on the feed roll are located in the drive shaft.
3. Ensure that the guide is located correctly on the feeder assembly, Figure 3.
Figure 3 Locate the guide
4. Check the registration, refer to dC625 Registration / Preheat calibration.
5. When new feed rolls are installed, reset the tray 1 or tray 2 feed count to zero. Refer to
dC135 CRU / HFSI Status.
2
Lift the tab and remove
the retard roll
3
Lift the tab and remove
the feed roll
1
Lift the tab and remove
the nudger roll
Ensure that the location lugs
on the guide are positioned
correctly
