ColorQube® 9303 Family
REP 73.1
Repairs/Adjustments
5. Remove the screws to release the tray rails, Figure 1.

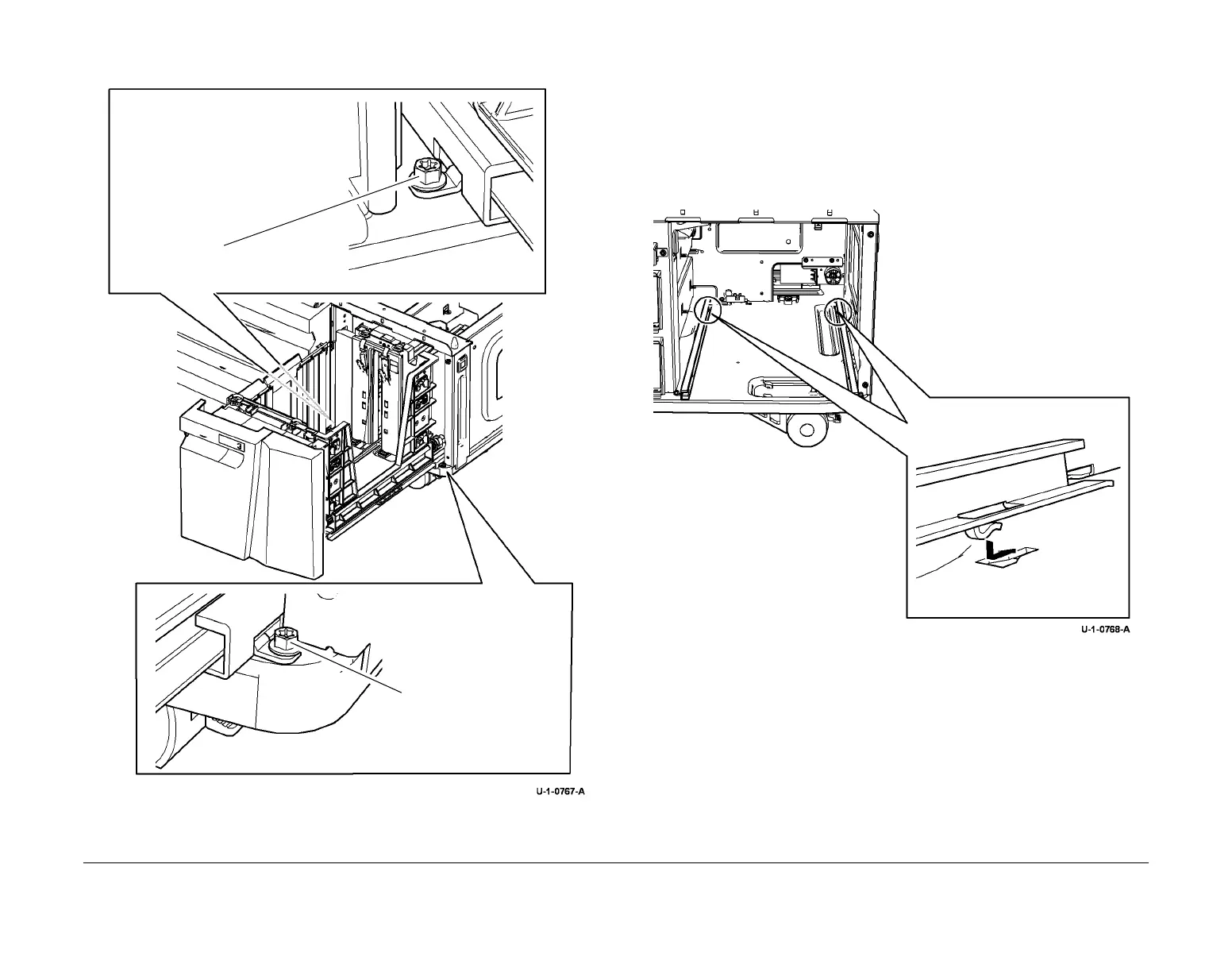

Figure 1 Remove tray 3 guide rails
6. Lift and pull to remove the tray complete with the guide rails.
Replacement
The replacement is the reverse of the removal procedure.
NOTE: When installing tray 3 ensure that the tray rails are located correctly in the base, Figure
2.
Figure 2 Location of the tray rails
Remove the screw
Remove the screw
Locate rail hook in guide hole
