February 2013
4-268
ColorQube® 9303 Family
REP 73.3
Repairs/Adjustments
4. Remove the pulley carriers and pass the cables through the base of the tray, Figure 2.
NOTE: Short cable over the outer pulley and the long cable over the inner pulley.

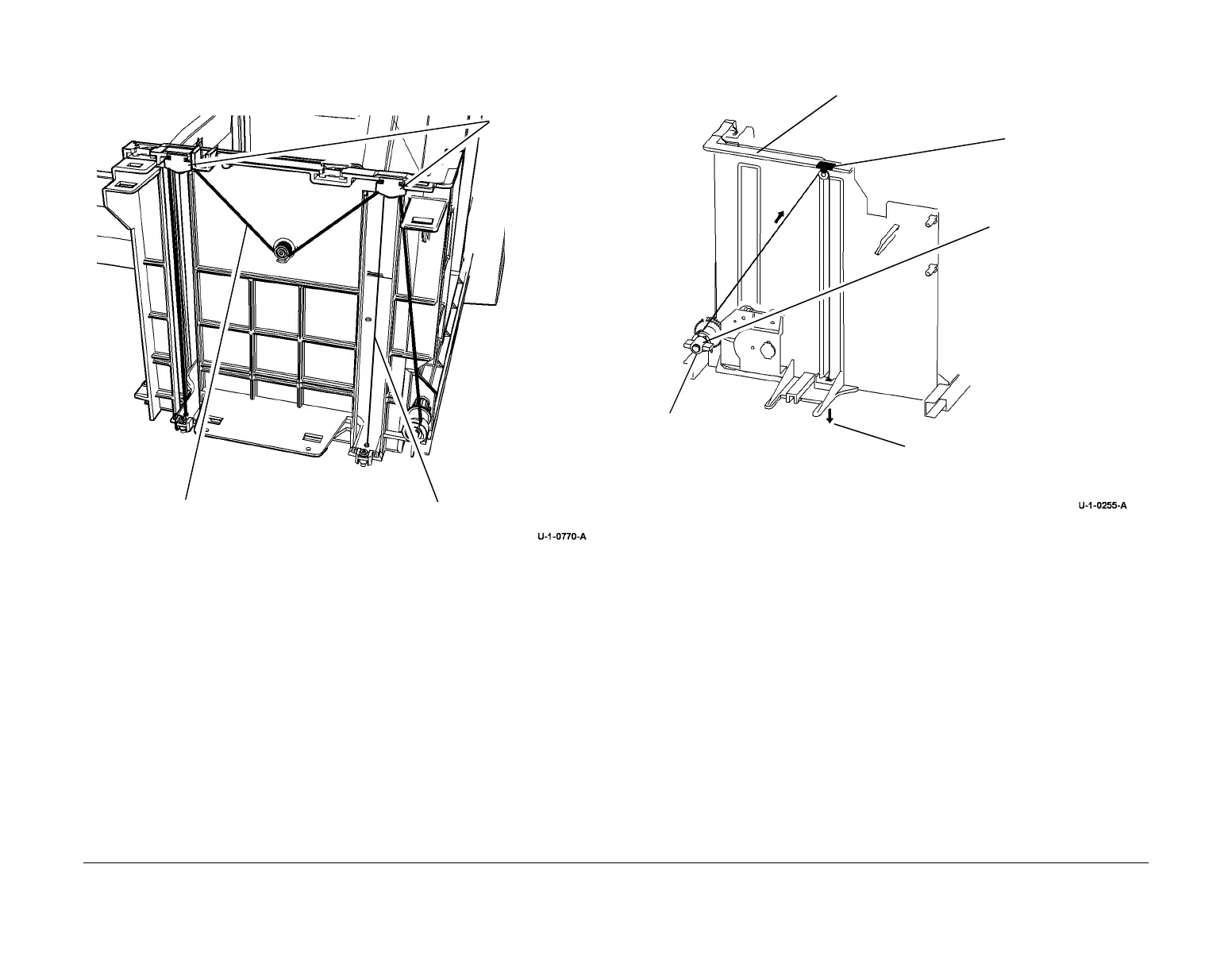

Figure 2 Remove front elevator cables
5. Remove the tray 3 rear elevator cable, Figure 3.
Figure 3 Tray 3 rear cable removal
Replacement
The replacement is the reverse of the removal procedure.
Tray 3 front cables.
1. Thread the front short cable (silver) over the inner groove on the pulley
2. Thread the front long cable (yellow) over the outer groove on the pulley.
Tray 3 rear cable.
• Thread the rear cable (black) over the inner groove on the pulley.
Short cable
Long cable
Pulley carriers
1
Remove E-clip
5
Remove the cable from
the drive pulley.
4
Remove the drive
dog and cap
6
Pass cable through the
base of the tray
2
Remove the metal plate if
fitted
3
Remove the pulley
carrier
To Next Page
