ColorQube® 9303 Family
REP 82.9
Repairs/Adjustments
7. Remove the vertical transport, Figure 2.

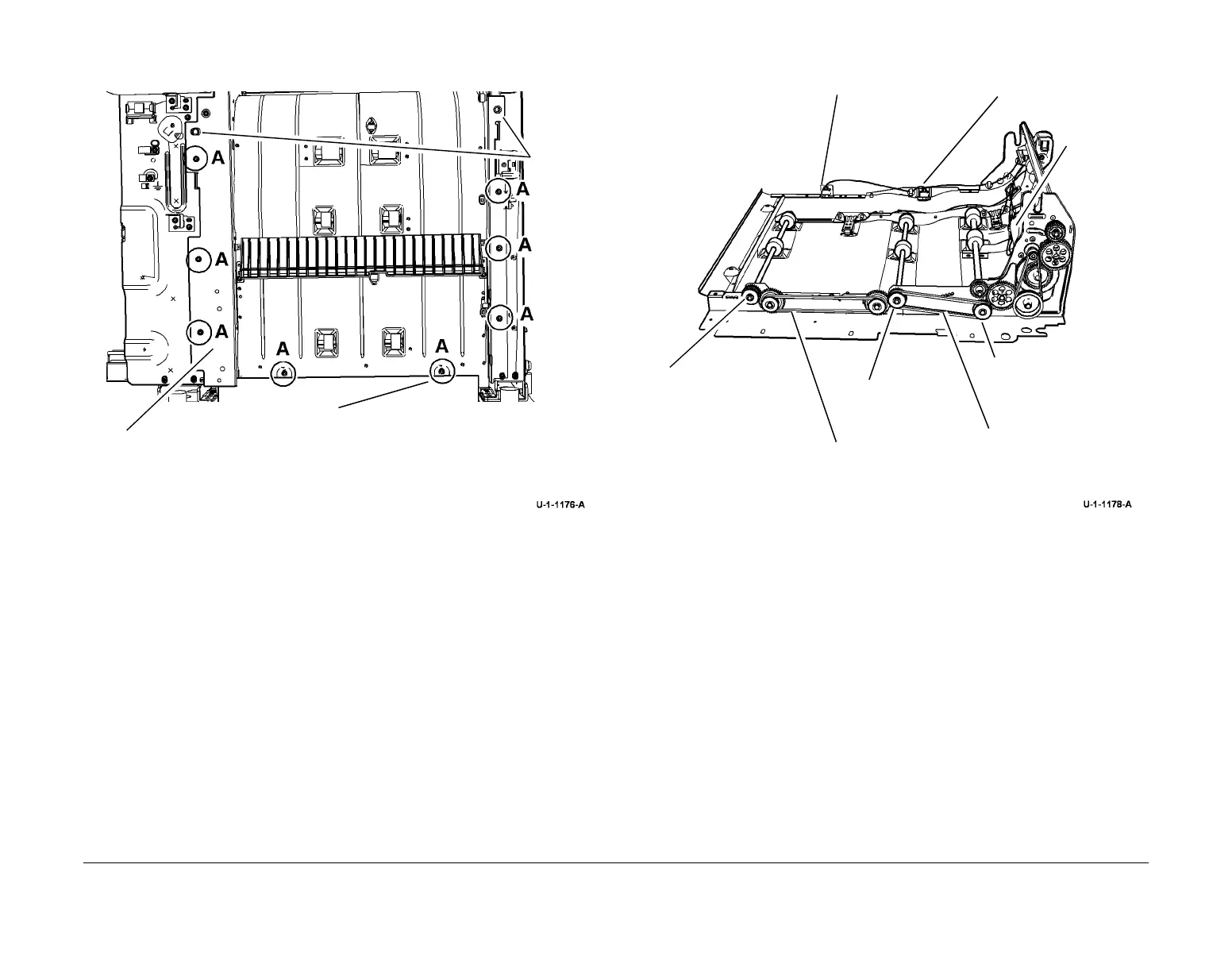

Figure 2 Release the vertical transport
8. If required to install new components on the vertical transport, refer to Figure 3.
Figure 3 Vertical transport
Replacement
1. Replacement is the reverse of the removal procedure.
2. Ensure that the harness is correctly routed, refer to Figure 1.
3. Ensure that the vertical transport is correctly located in the location lugs, refer to Figure 2.
4. After completing the replacement procedure, perform the dC625 Registration / Preheat
calibration.
2
Remove 8 screw marked with A.
1
Support the vertical transport.
Location
lugs
3
Remove the vertical transport.
Nip H drive belt.
Nip F drive belt.
Vertical
transport
motor.
Transport roller.
Transport
roller.
Transport roller.
Mid door interlock
switch.
Upper door interlock
switch.
