Xerox ColorQube 9303 Series Service Manual

February 2013
4-323
ColorQube® 9303 Family
REP 91.3
Repairs/Adjustments
3. Remove the head maintenance wiper shaft, Figure 2.

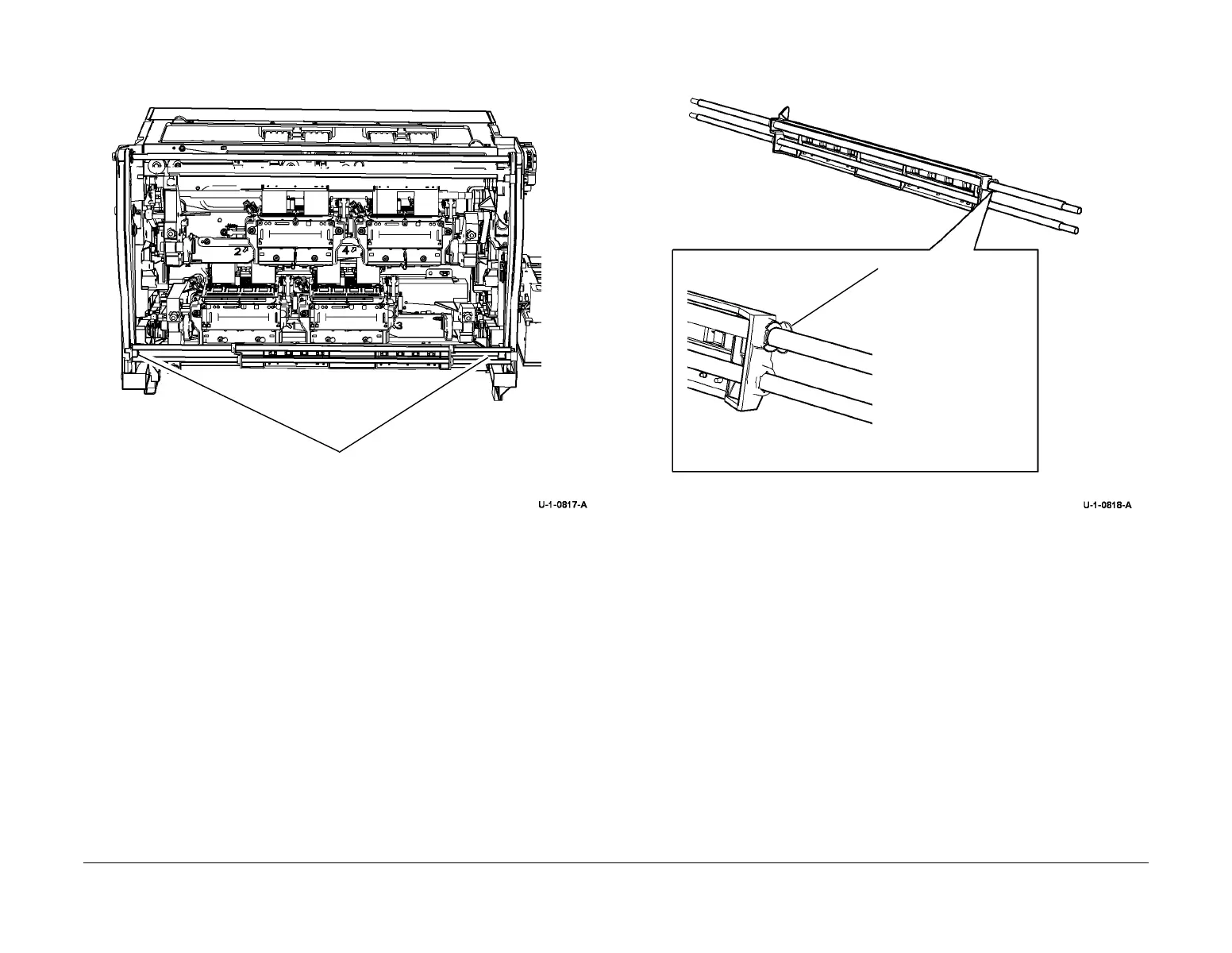

Figure 2 HM wiper removal
4. Remove the head maintenance wiper from shafts, Figure 3.
Figure 3 Remove wiper
1
Remove the upper and lower
wiper shafts from the slots and
belt clips.
2
Slide the head mainte-
nance wiper off of the
drive shafts.
1
Remove the E-clip.
