ColorQube® 9303 Family
REP 91.7
Repairs/Adjustments

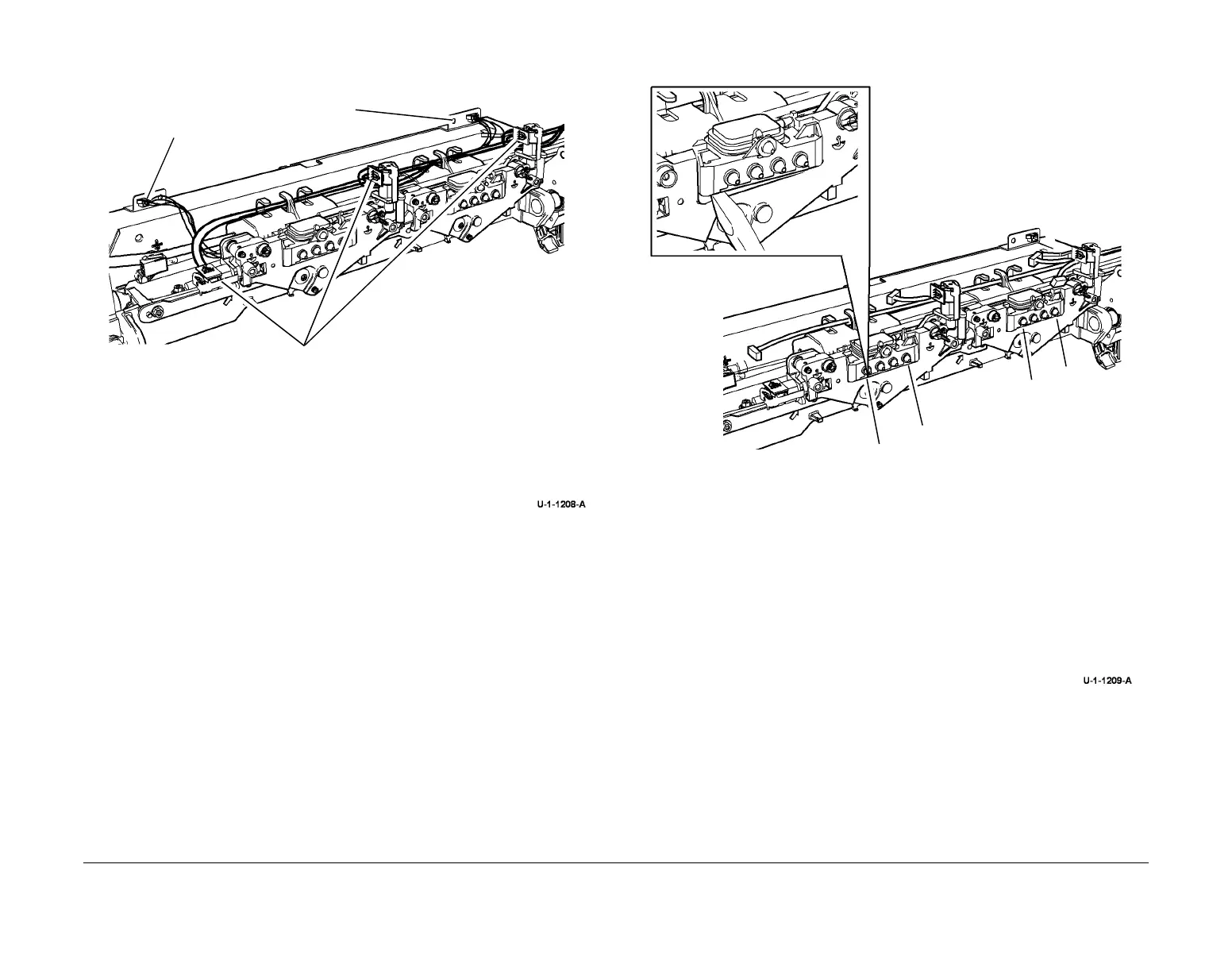

3. Disconnect the carriage harness, Figure 1.
Figure 1 Disconnect harness
4. Disconnect the umbilical from the carriage, Figure 2.
Figure 2 Unclip the umbilical
1
Disconnect harnesses from the stitch/roller motors.
2
Disconnect harnesses from the in-
line connectors on the carriage
marked A and release the cable
clips.
A
A
A
1
Use a bladed screwdriver to unclip the umbilical from the carriage. Insert
the screwdriver between the umbilical and carriage then rotate the blade to
release the umbilical (4 positions marked A).
A
A
A
