February 2013
4-336
ColorQube® 9303 Family
REP 91.11
Repairs/Adjustments
3. Release the service loop from the draw slide and cable clamps, Figure 1.

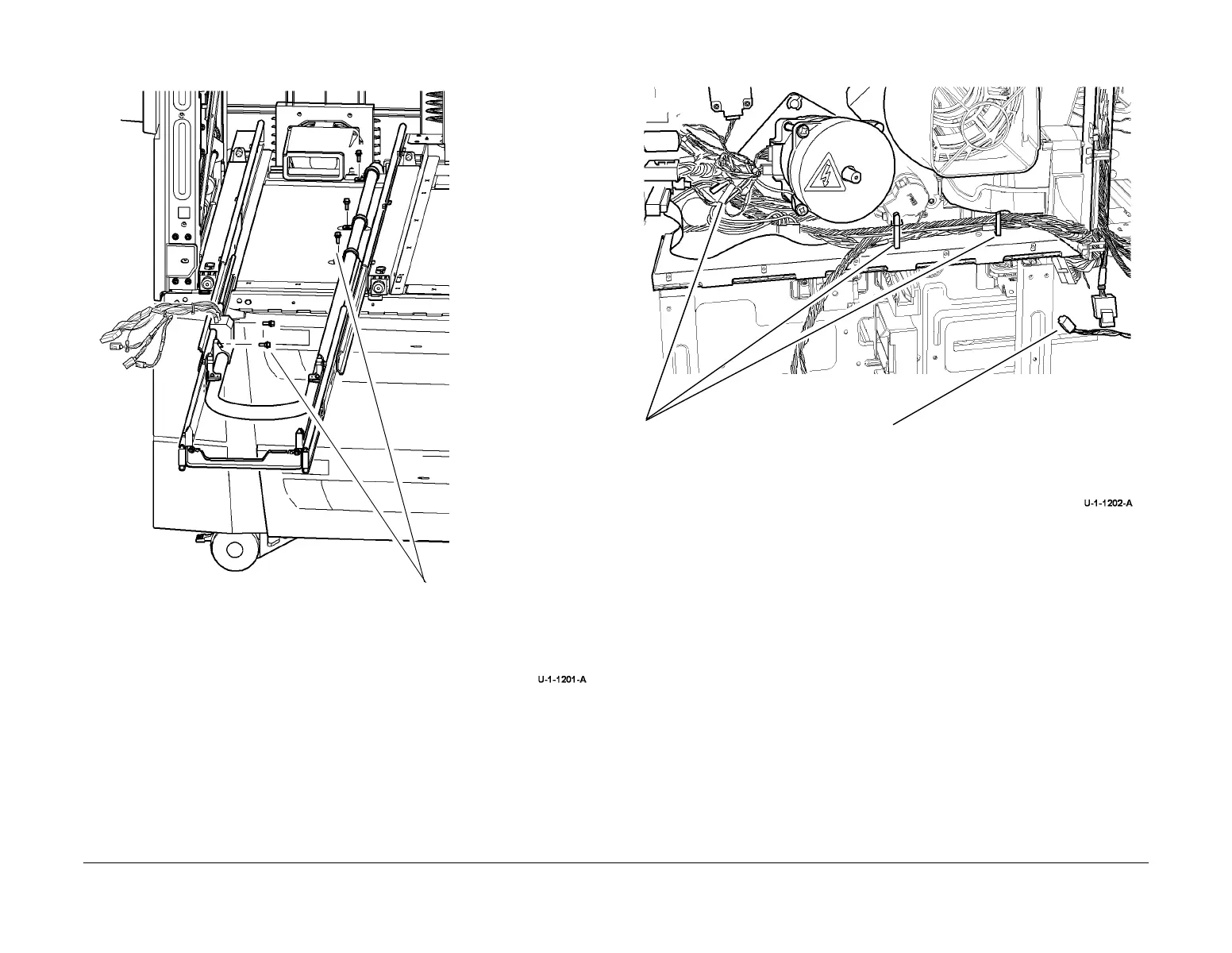

Figure 1 Release Service loop
4. Disconnect the following harnesses:
• PJ 408, media path PWB.
• PJ 603, drum driver PWB.
5. Remove the PSU, PL 1.15 Item 2.
6. Remove the service loop, Figure 2.
Figure 2 Service loop removal
Replacement
1. Replacement is the reverse of the removal procedure.
2. Push the marking unit slides into the machine with the marking unit removed.
1
Remove the screws.
1
Release cables from the cable clips.
2
Disconnect the in-line connector.
To Next Page
