February 2013
4-340
ColorQube® 9303 Family
REP 91.14
Repairs/Adjustments
3. Disconnect the carriage harness, Figure 1.

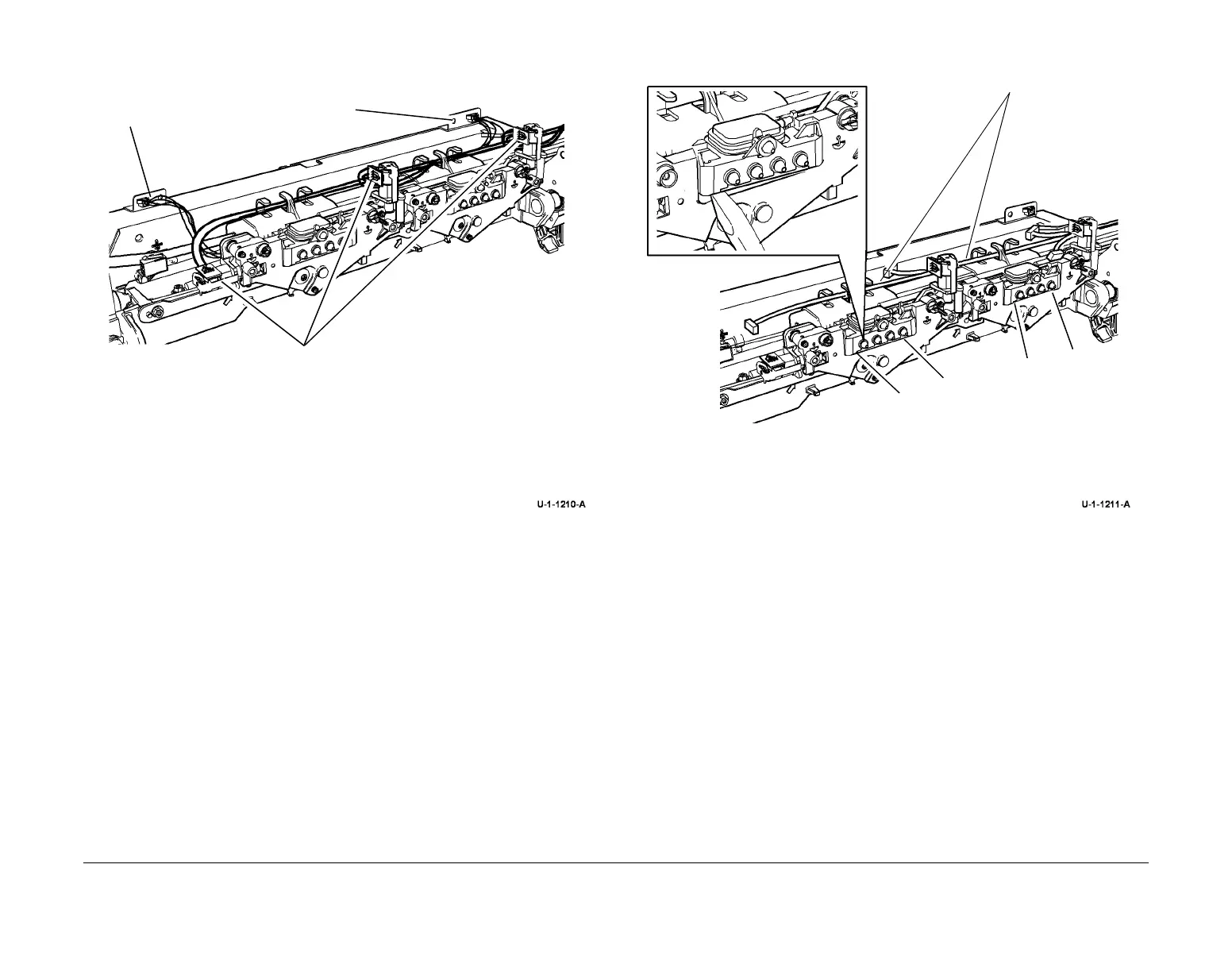

Figure 1 Disconnect harness
4. Disconnect the umbilical from the carriage, Figure 2.
Figure 2 Unclip the umbilical
1
Disconnect harnesses from the stitch/roller motors.
2
Disconnect harnesses from the in-
line connectors on the carriage
marked A and release the cable
clips.
A
A
A
2
Use a flat bladed screwdriver to unclip the umbilical from the carriage. Insert the screw-
driver between the umbilical and carriage then rotate the blade to release the umbilical
(4 positions marked A).
A
A
A
1
Release the wiring
from the top of the
umbilical.
To Next Page
