February 2013
4-391
ColorQube® 9303 Family
ADJ 5.2
Repairs/Adjustments

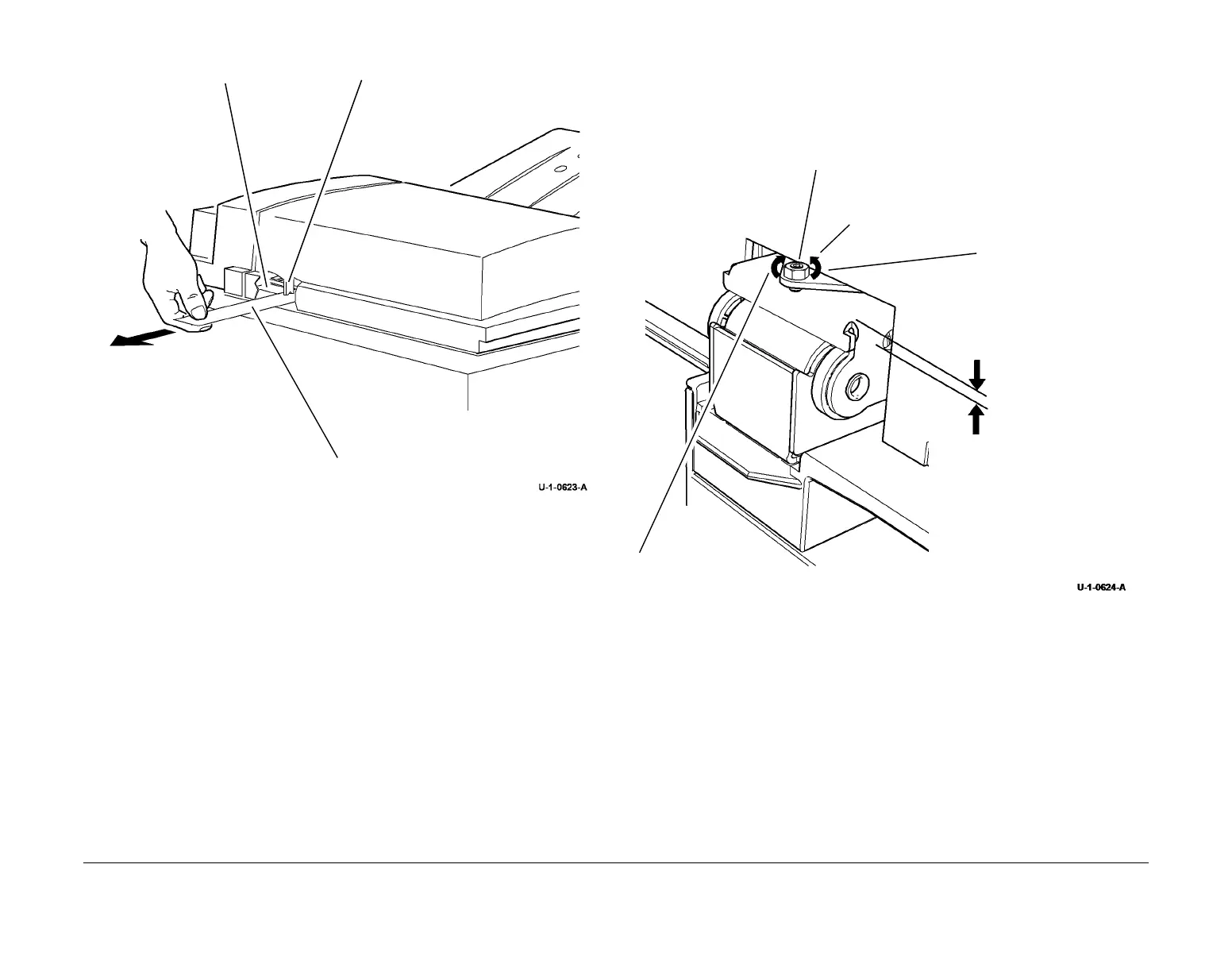

Figure 2 Clearance check
Adjustment
NOTE: The factory setting of the counterbalances is approximately 3 mm (0.125 inch), refer to
Figure 3. The same adjustment applies to the left counterbalance and right counterbalance.
Adjust the two counterbalances.
1. If the height of the DADH is wrong, adjust the counterbalances, Figure 3.
Figure 3 Counterbalances
2. If mis-registration is found after the DADH is set to the correct height, go to ADJ 5.5
DADH Registration Adjustment.
CVT glass.
Back DADH standoff.
Strip of paper.
1
Loosen the lock nut.
Use an allen key to adjust the setting screw to raise or
lower the DADH.
3
Tighten the lock nut.
Approximately 3 mm
(0.125 inch)
Raise the DADH.
Lower the DADH.
To Next Page
