February 2013
6-49
ColorQube® 9303 Family
GP 15
General Procedures/Information

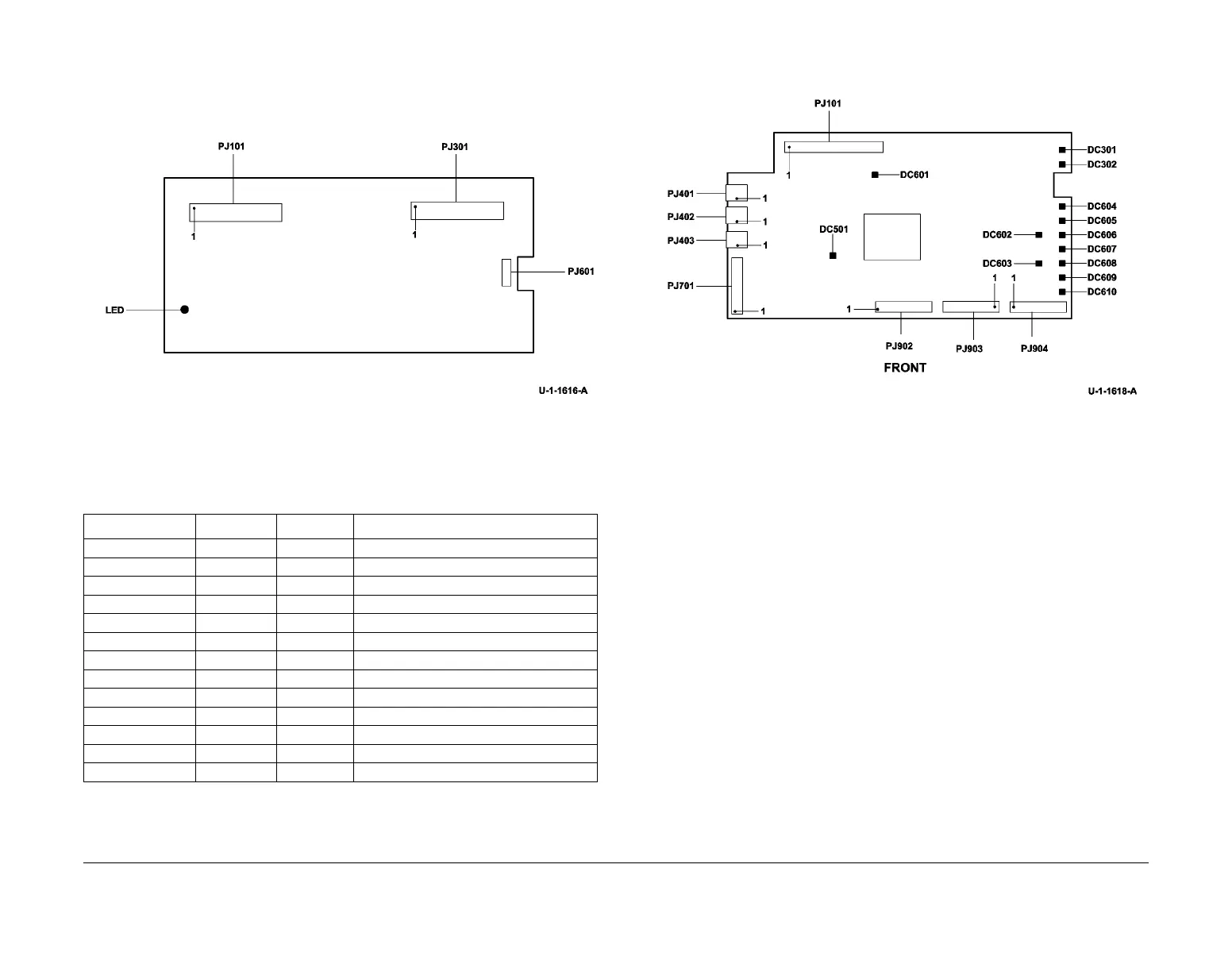

Refer to Figure 5 for the location of the LED on the printhead PWB.
Figure 5 Printhead PWB
IME Control PWB
Table 6 indicates the state of the LED’s on a good working IME control PWB, PL 92.10 Item 1.
Refer to Figure 6 for the location of the LED’s on the IME control PWB.
Figure 6 IME controller PWB
Table 6 IME controller PWB
LED ID LED colour Status Description
DS610 Green On +3.3V ESTAR present
DS609 Green On +5V present
DS608 Green On +12V present
DS603 Green On -12v present
DS607 Green On +24Vpresent
DS606 Green On +50V present
DS602 Green On -50V present
DS601 Green On Lit equals CPU ready
DS501 Green On Lit equals CPU asleep
DS605 Red Off On when a CPU fault
DS604 Red Off On when Cable fault detected
DS301 Red Off On when IME error detected
DS302 Green Flashing IME good
