February 2013
6-117
ColorQube® 9303 Family
GP 42
General Procedures/Information
5. Double-click the entry Internet Protocol Version 4 (TCP/IPv4).
6. Select Use the following IP address. Enter the IP address and Subnet mask, Figure 2.

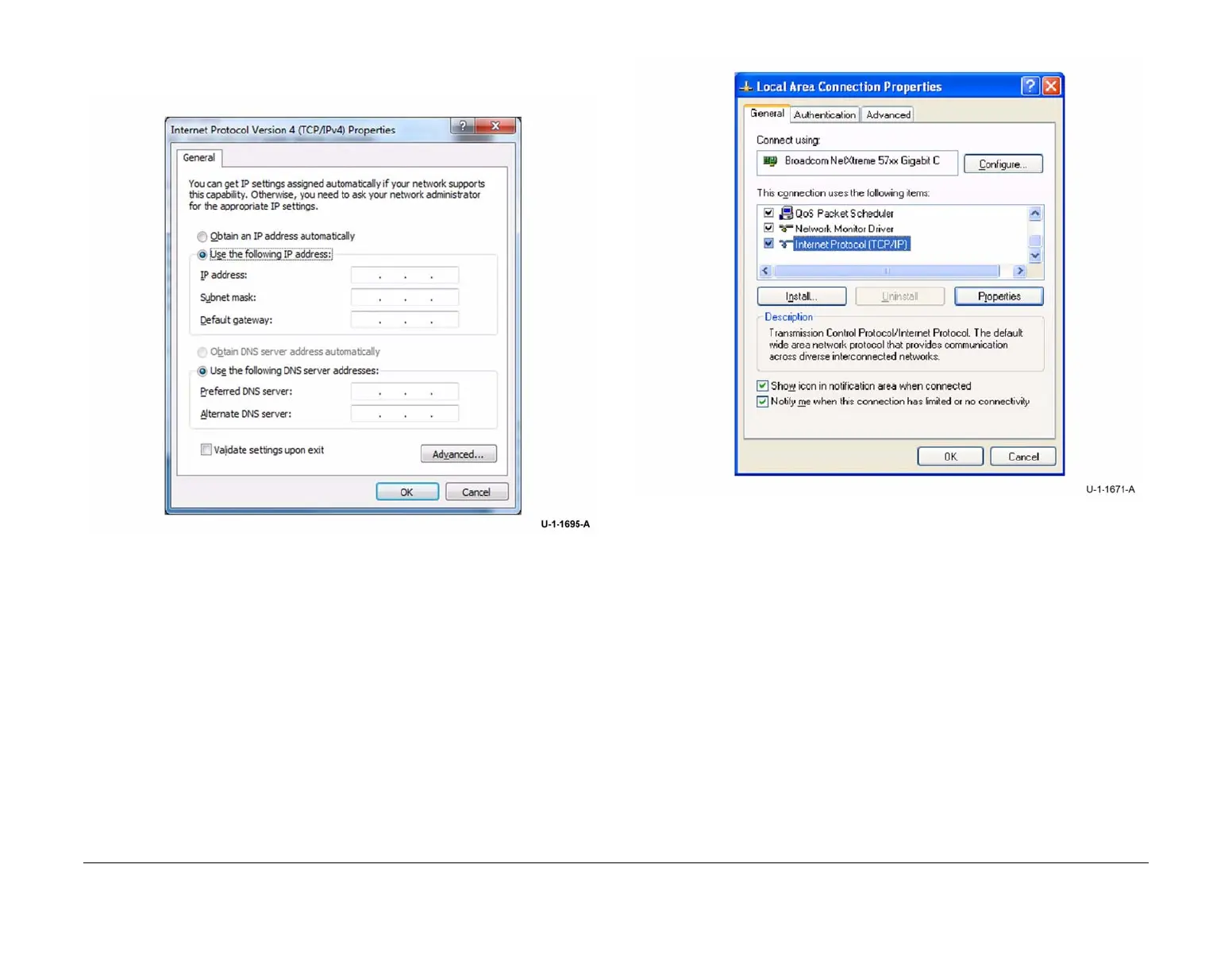

Figure 2 Properties window
7. Click on OK to close the properties dialog box, then OK to close the second properties
dialog box.
8. Close the Local Area Connection Status dialog box.
Windows XP
Perform the following:
1. On the PWS, right click on the My Network Places desktop icon or select Start, then My
Network Places. Select Properties from the menu. The Network and Dial-up Connections
window will open.
2. Right click on Local Area Connection icon, then select Properties. The Local Area Con-
nection Properties window will open.
3. Highlight Internet Protocol (TCP/IP), then select Properties, refer to Figure 3. The Internet
Protocol (TCP/IP) Properties window will open.
Figure 3 Properties window
4. Select Use the following IP address. Enter the IP address and Subnet mask, Figure 4.
To Next Page
