ColorQube® 9303 Family
IQ 5
Image Quality
YN
Perform ADJ 91.1 Printhead Attachment Check.
Perform dC972 option 5, Y-dot position correction. Print TP 1 Initial Test Print Pages. Compare
the test pages with IQS 3.
The test pages are good.
YN
Perform the following dC972 routines:
• Option 2 Head to Head Alignment Adjust.
• Option 3 Head to Head Uniformity.
• Option 4 TRC Generation.
Print TP 1 Initial Test Print Pages. Compare the test pages with IQS 3 and IQS 6. The
test pages are good.
YN
Perform dC972 option 5 Y Dot Position Correction. Print TP 1 Initial Test Print
Pages. Compare the test pages with IQS 3 and IQS 6.
The test pages are good.
YN
Install new printheads as necessary, PL 91.20 Item 2 or PL 91.25 Item 2.
Perform SCP 5 Final Actions.
Perform SCP 5 Final Actions.
Perform SCP 5 Final Actions.
Blurry / Jagged Text Defect Checkout
Refer to Figure 6.

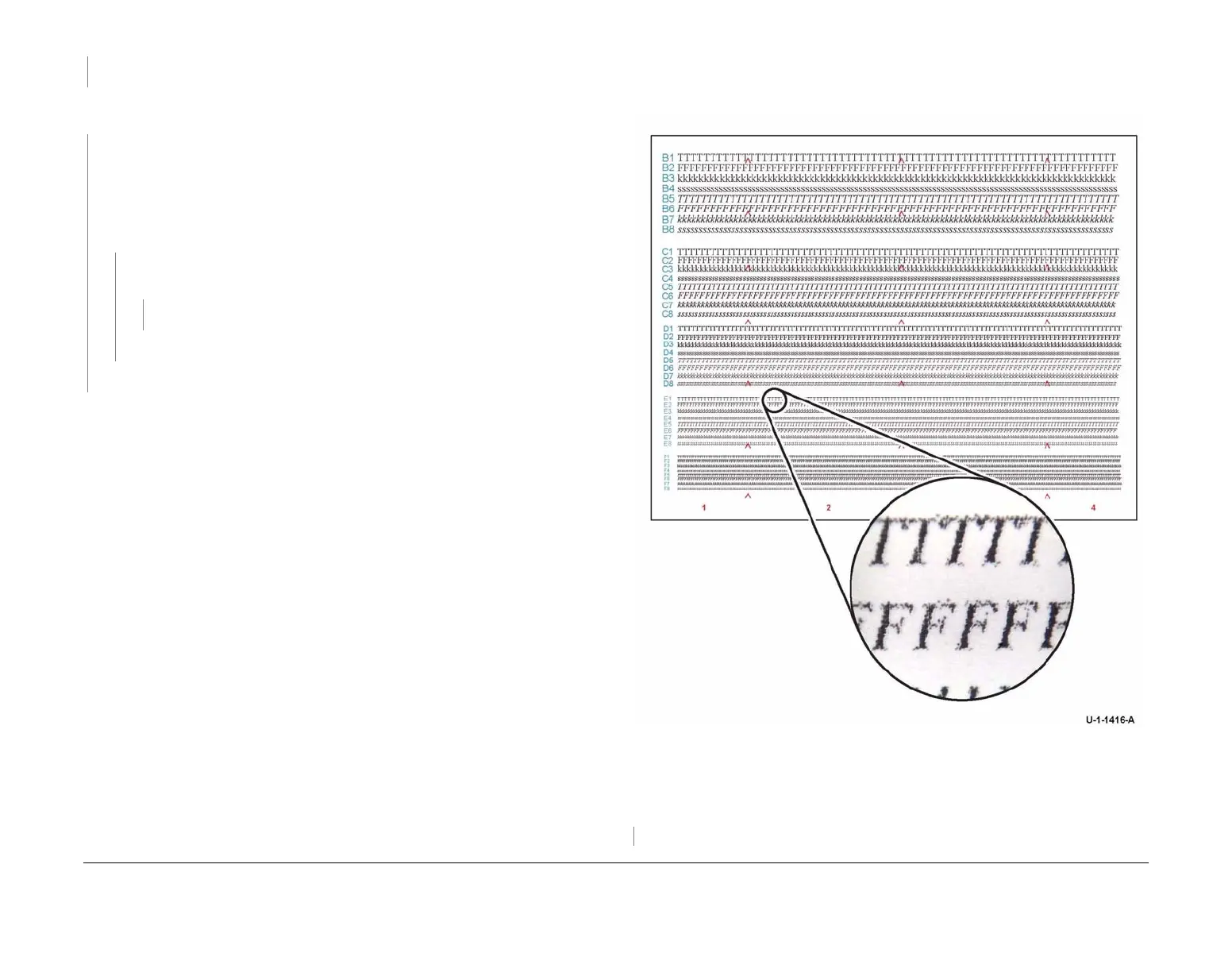

Figure 6 Blurry / jagged text
Procedure
Check the position of the carriages. The carriages are docked to the drum.
YN
Perform dC967 Head to Drum Spacing Check. dC967 runs successfully.
C
To Next Page
