February 2013
3-38
ColorQube® 9303 Family
IQ 9
Image Quality
Scraping Checkout

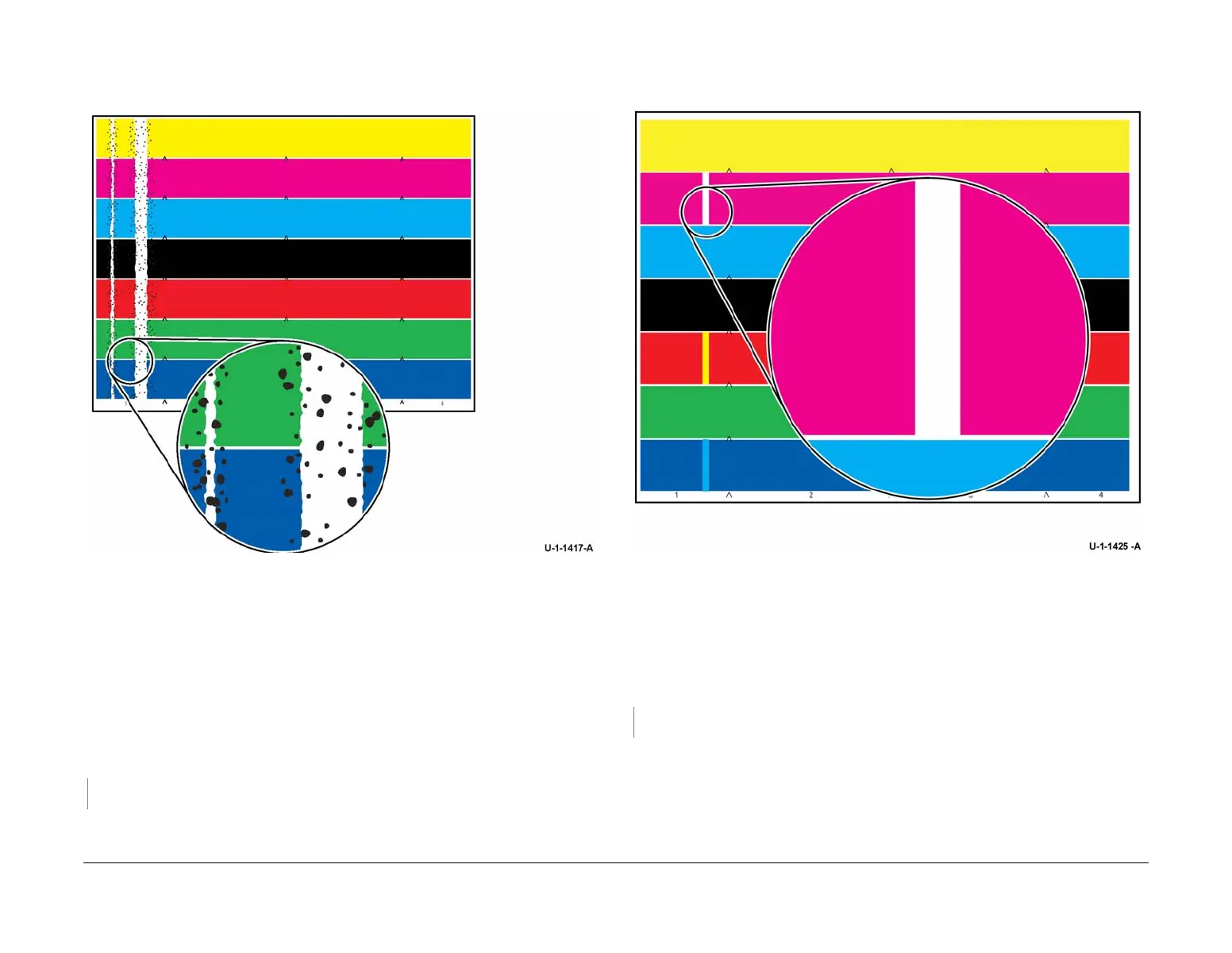

Refer to Figure 7.
Figure 7 Scraping
Procedure
Check for accumulations of ink or media debris on components that could scrape the drum.
Perform the following:
1. Clean the following components, GP 27 or install new components as necessary:
• Abatement plenum, PL 94.20 Item 12.
• IOD shield and sensor, PL 94.15.
2. If necessary, install a new stripper blade assembly, PL 10.12 Item 3.
3. IQ 7 Metering Blade Timing RAP.
Print the colour bands test page, TP 26. The test pages are good.
YN
Re-define the image quality defect, refer to IQ 1 Image Quality Entry RAP.
Perform SCP 5 Final Actions.
Multiple Missing Jets Checkout
Refer to Figure 8. Shows multiple missing jets of a single primary colour.
Figure 8 Multiple missing jets
Procedure
Perform the following:
1. Perform dC968 Head Purge.
2. Print the jet test pages, TP 21.
Analyse the jet test pages. The jet test pages are good.
YN
Go to the 91-638-00 IOD Detects Chronic Jet Error RAP.
Perform SCP 5 Final Actions.
