February 2013
4-11
ColorQube® 9303 Family
REP 1.4
Repairs/Adjustments
Replacement
1. Select the correct replacement terminal and identify the appropriate crimp positions for
the terminal.

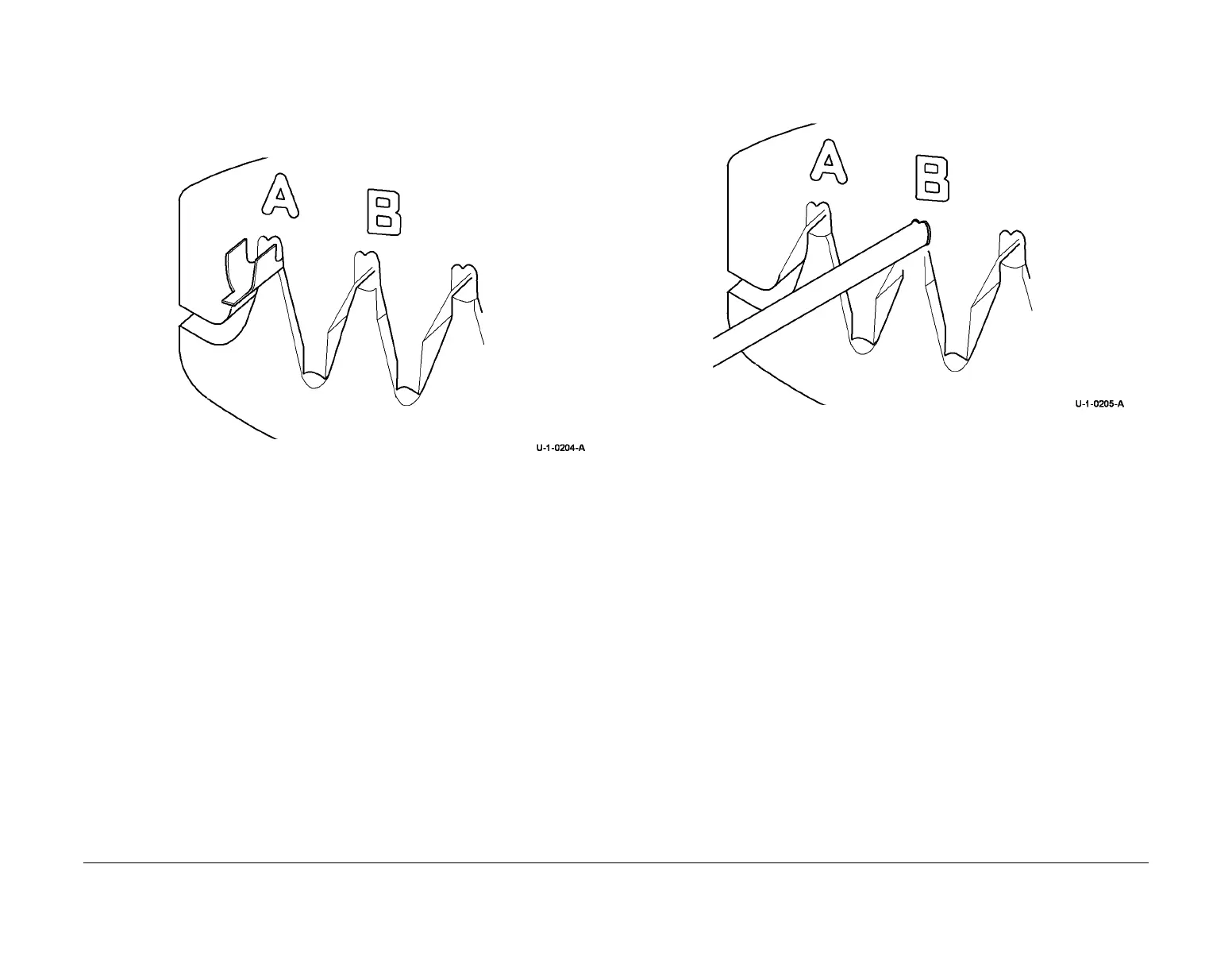

2. Figure 3. Insert the terminal into the appropriate position of the crimp tool and close the
tool enough to hold the terminal.
Figure 3 Crimping the terminal.
3. Insert the wire completely into the terminal, so that the stripped portion of the wire is in the
longer grip of the terminal. The insulation of the wire is within the cable grip of the termi
-
nal. Close the crimp tool completely to make the crimp. Check that the wire is crimped
firmly in the terminal.
4. Figure 4. Insert the crimped terminal into the appropriate position of the crimp tool and
close the crimp tool to firmly fasten the insulation of the wire in the cable grip of the termi
-
nal.
Figure 4 Crimping the insulated grip.
To Next Page
