Xerox ColorQube 9303 Series Service Manual

February 2013
4-53
ColorQube® 9303 Family
REP 5.15
Repairs/Adjustments

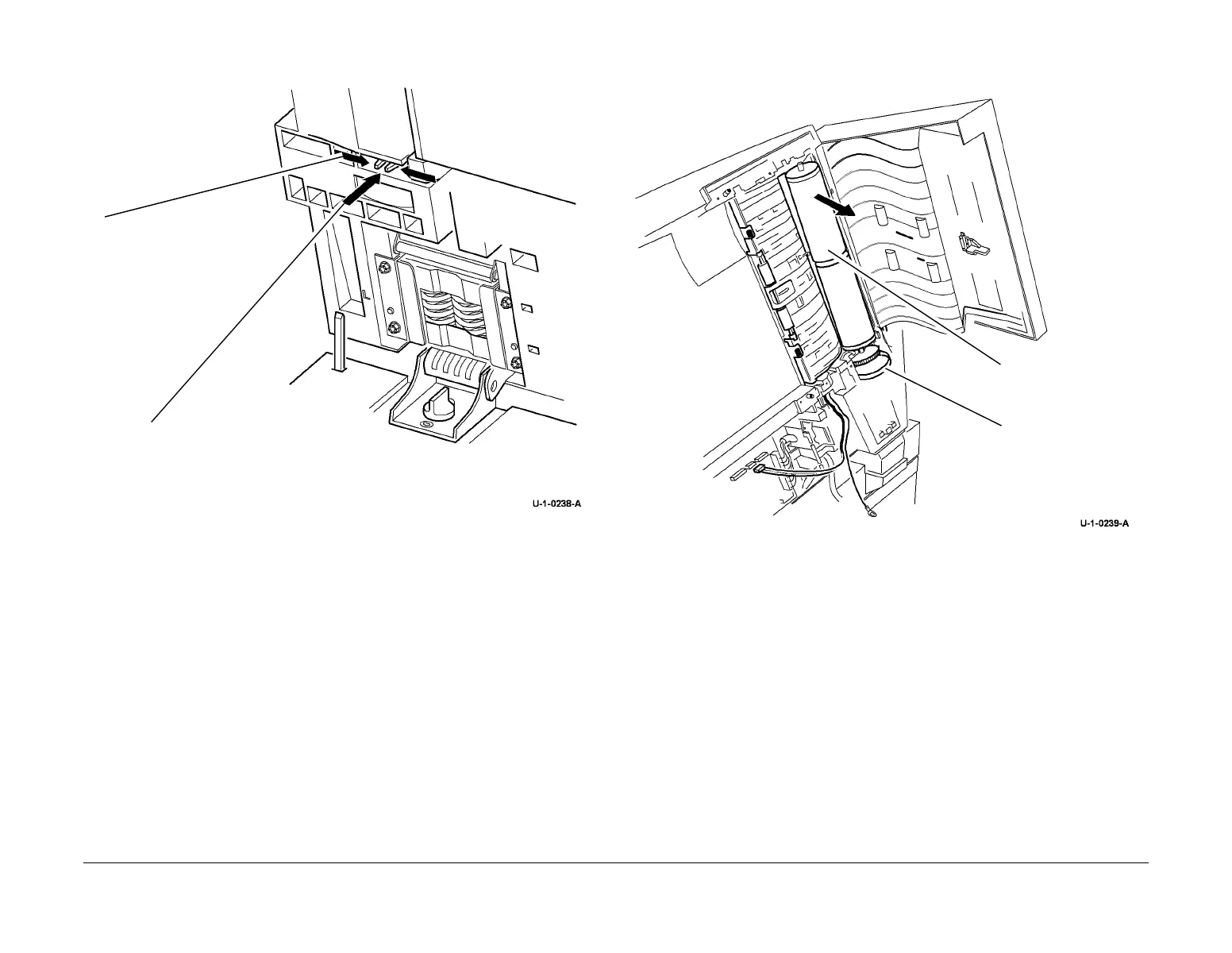

6. Disengage the back CVT roll bearing, Figure 2.
Figure 2 Bearing
7. Release the front CVT roll bearing, PL 5.25 Item 4. Remove the CVT roll and CVT motor,
drive belt, Figure 3.
Figure 3 CVT roll
1
Compress the two ends of
the bearing together.
2
Push the bearing to disengage.
1
Remove the CVT roll.
2
Remove the CVT
motor drive belt.
