February 2013
4-74
ColorQube® 9303 Family
REP 10.10
Repairs/Adjustments

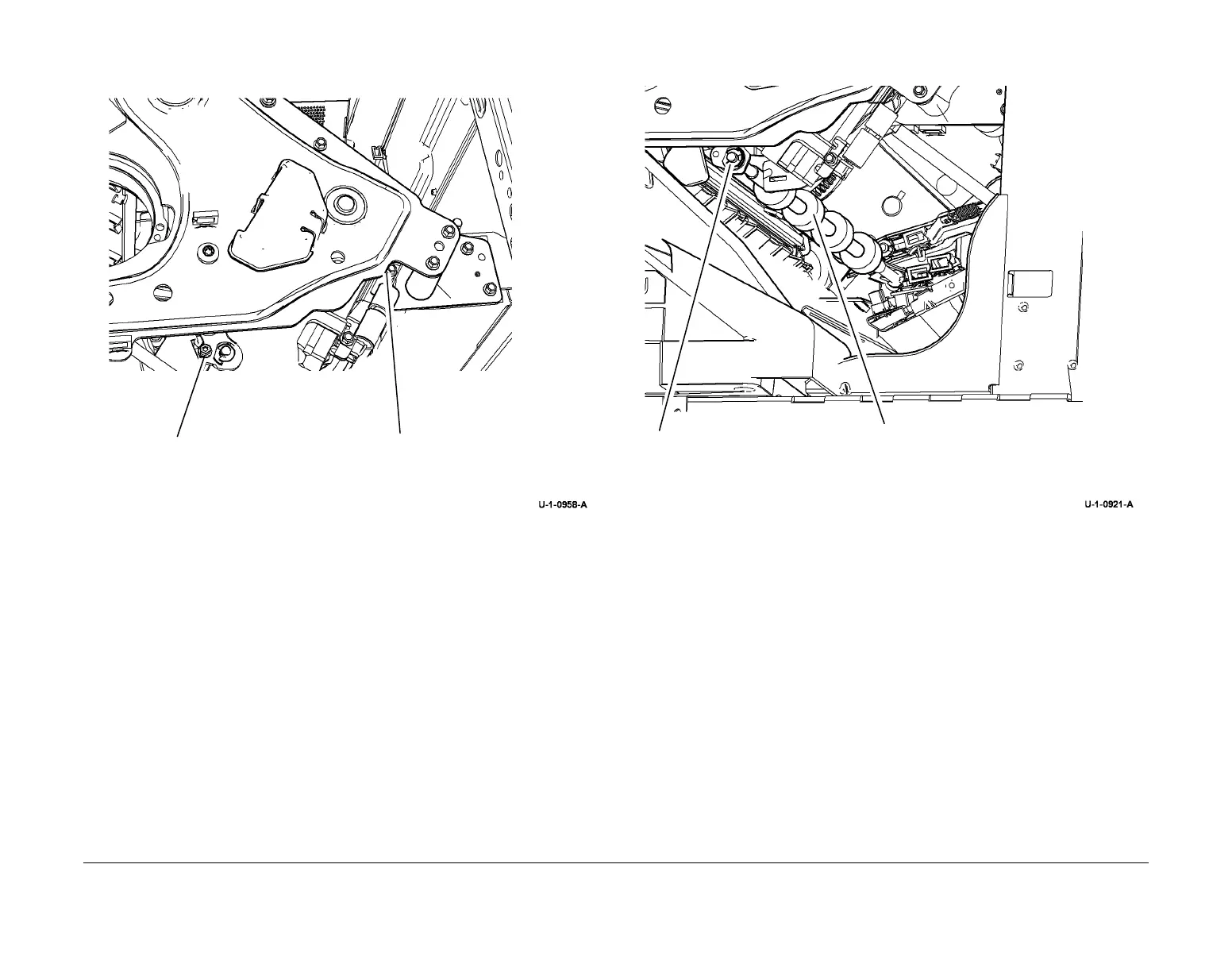

5. Lower the upper baffle, Figure 2.
Figure 2 Lower the upper baffle
6. Remove roller drive J, Figure 3.
Figure 3 Roller removal
Replacement
Replacement is the reverse of the removal procedure.
1
Remove screw
2
Loosen screw by two
turns then lower the baffle.
1
Remove the e-clip and
bearing.
2
Remove roller drive J.
