Xerox ColorQube 9303 Series Service Manual

February 2013
4-78
ColorQube® 9303 Family
REP 10.12
Repairs/Adjustments

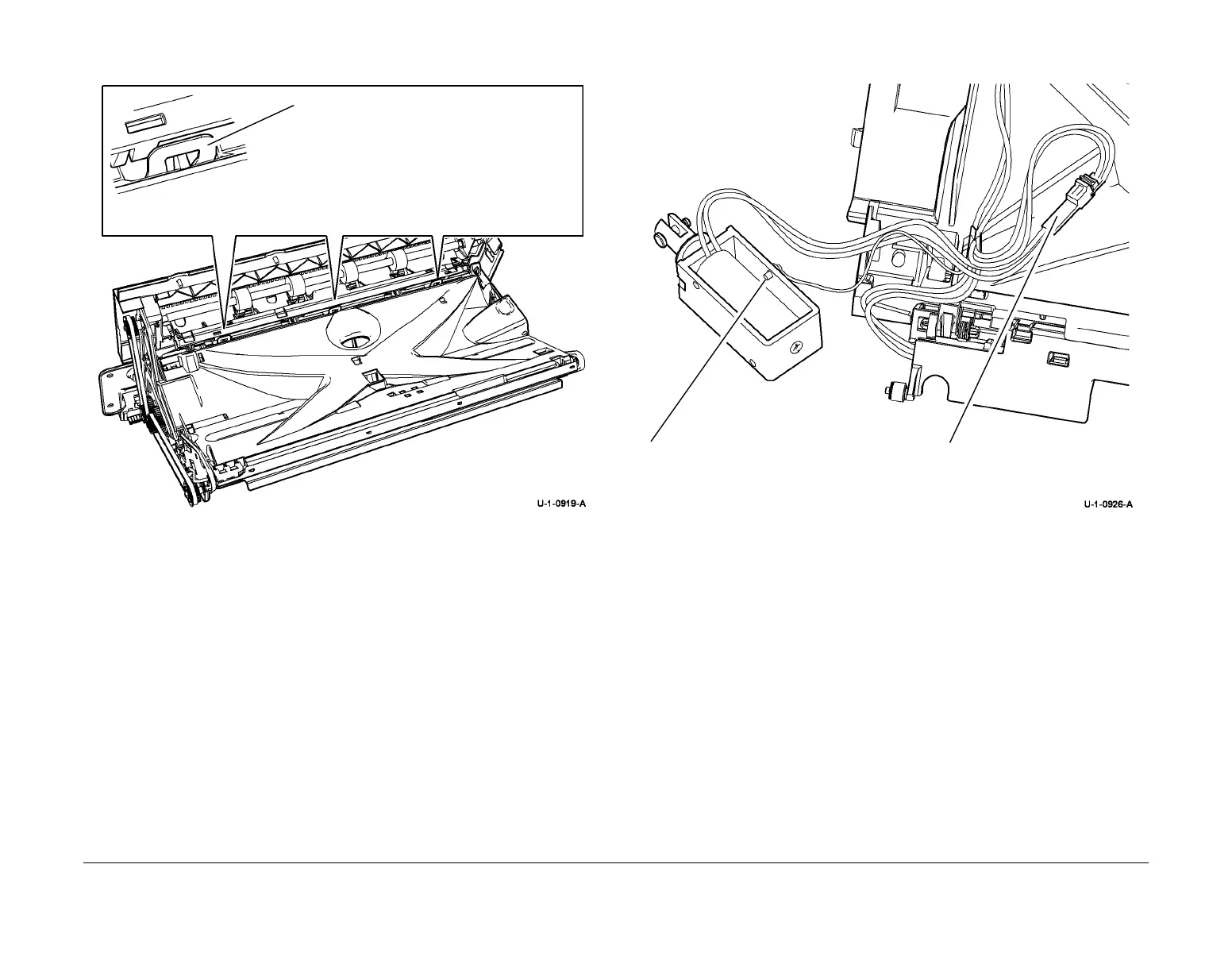

4. Remove the paper guide, Figure 2.
Figure 2 Paper guide removal
5. Remove the exit/duplex solenoid, Figure 3.
Figure 3 Solenoid removal
Replacement
Replacement is the reverse of the removal procedure.
1
With the jam clearance door opened, release the
3 retaining tabs. Then remove the inner paper
guide.
1
Remove the screw and ground lead.
2
Disconnect the harness.
