February 2013
4-82
ColorQube® 9303 Family
REP 10.14
Repairs/Adjustments
3. Release the exit motor, Figure 2.

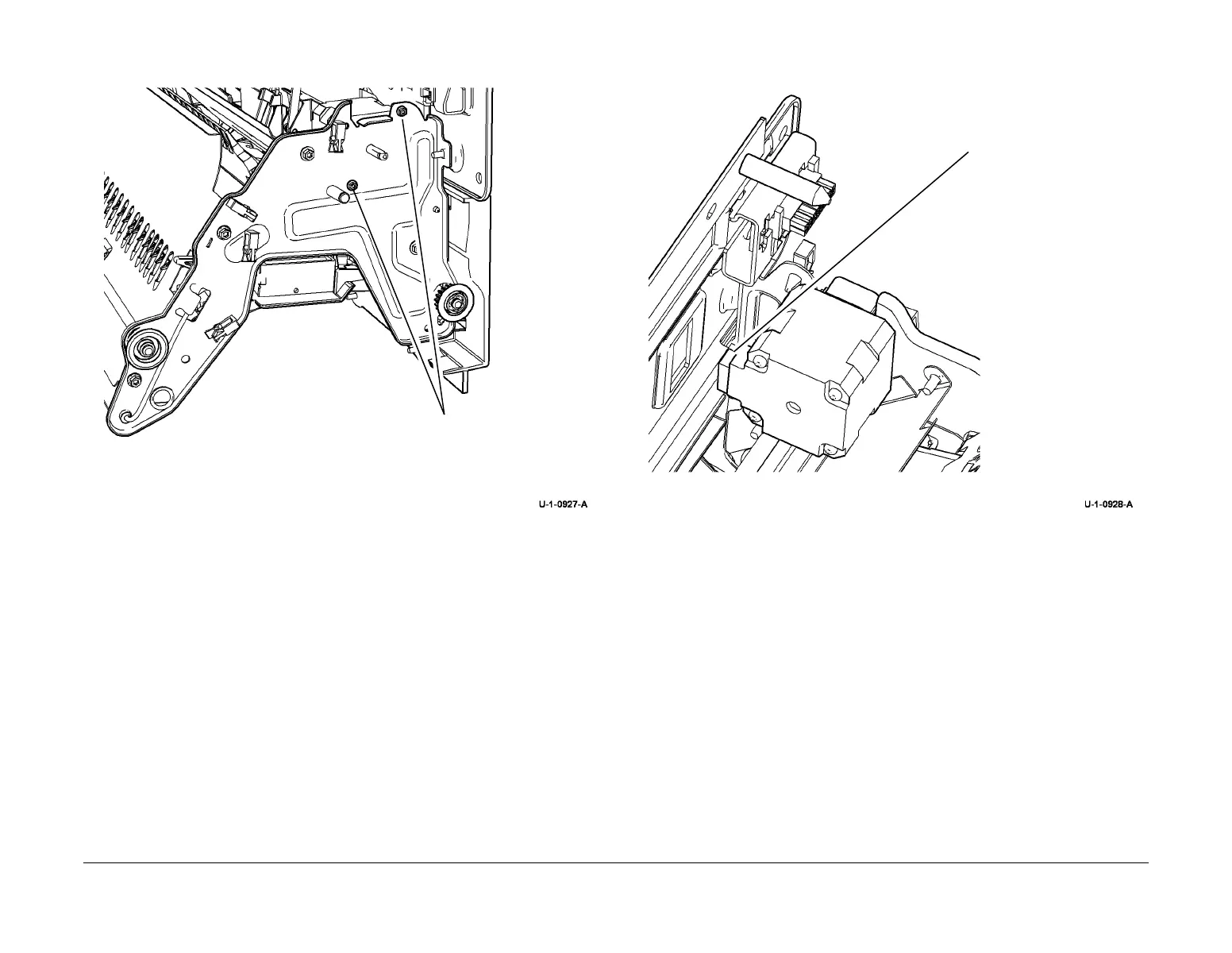

Figure 2 Motor release
4. Remove the exit motor, Figure 3.
Figure 3 Motor removal
Replacement
Replacement is the reverse of the removal procedure.
1
Remove 2 screws.
1
Disconnect the harness then
remove the motor.
