Xerox ColorQube 9303 Series Service Manual

February 2013
4-97
ColorQube® 9303 Family
REP 10.23
Repairs/Adjustments

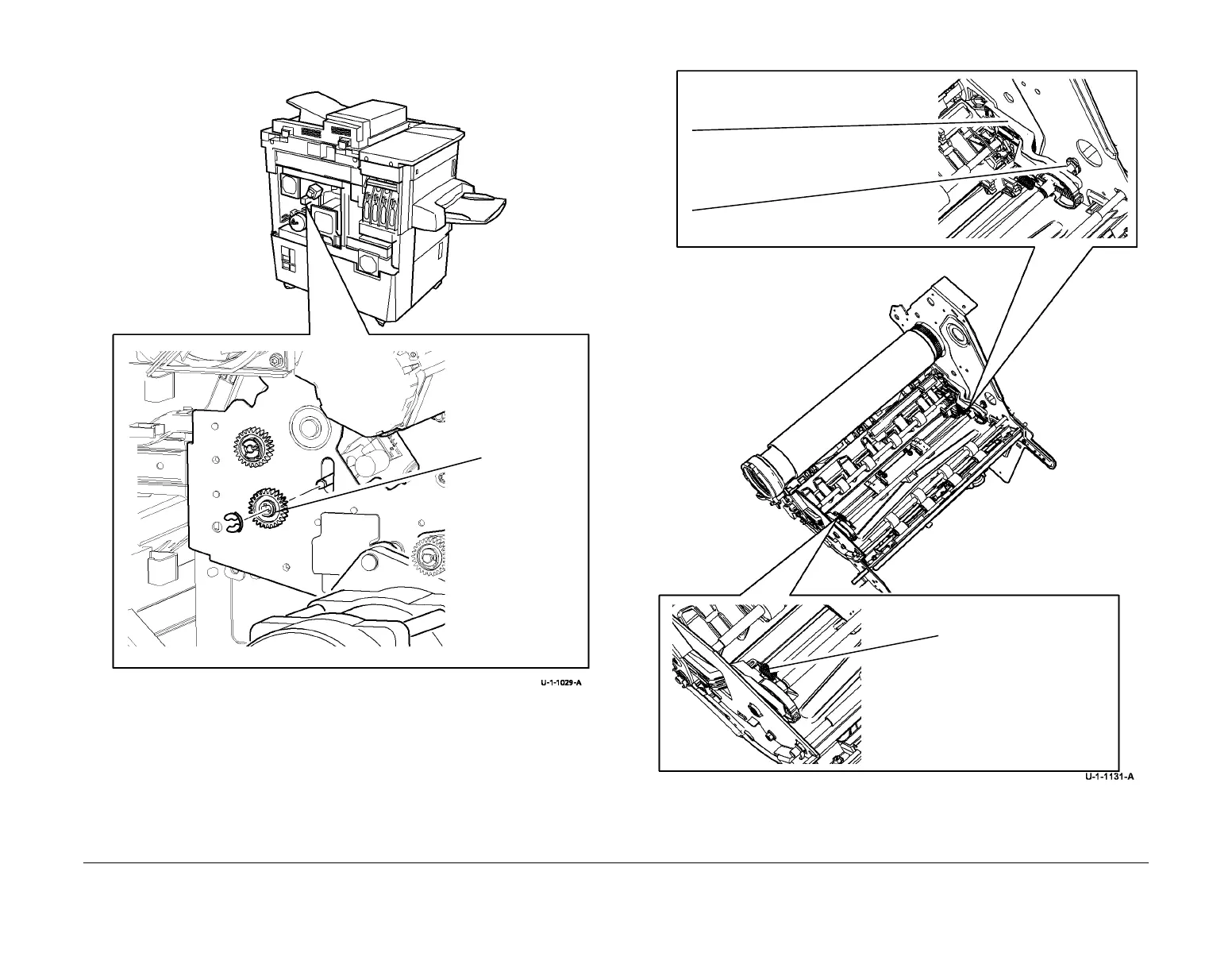

6. Remove the centre 25T gear, Figure 1.
Figure 1 Gear removal
7. Remove the stripper guide latch cam shaft, Figure 2.
Figure 2 Shaft removal
Replacement
1. Replacement is the reverse of the removal procedure.
1
Remove the
KL-clip, gear
and bearing.
2
Unhook the spring and push the latch fork
away from the shaft.
3
Remove the e-clip then the shaft.
1
Unhook the spring and
push the latch fork away
from the shaft.
