ColorQube® 9303 Family
REP 12.1-171
Repairs/Adjustments
4. Remove the rear cover, Figure 4.
NOTE: The top cover must be removed before removing the rear cover.

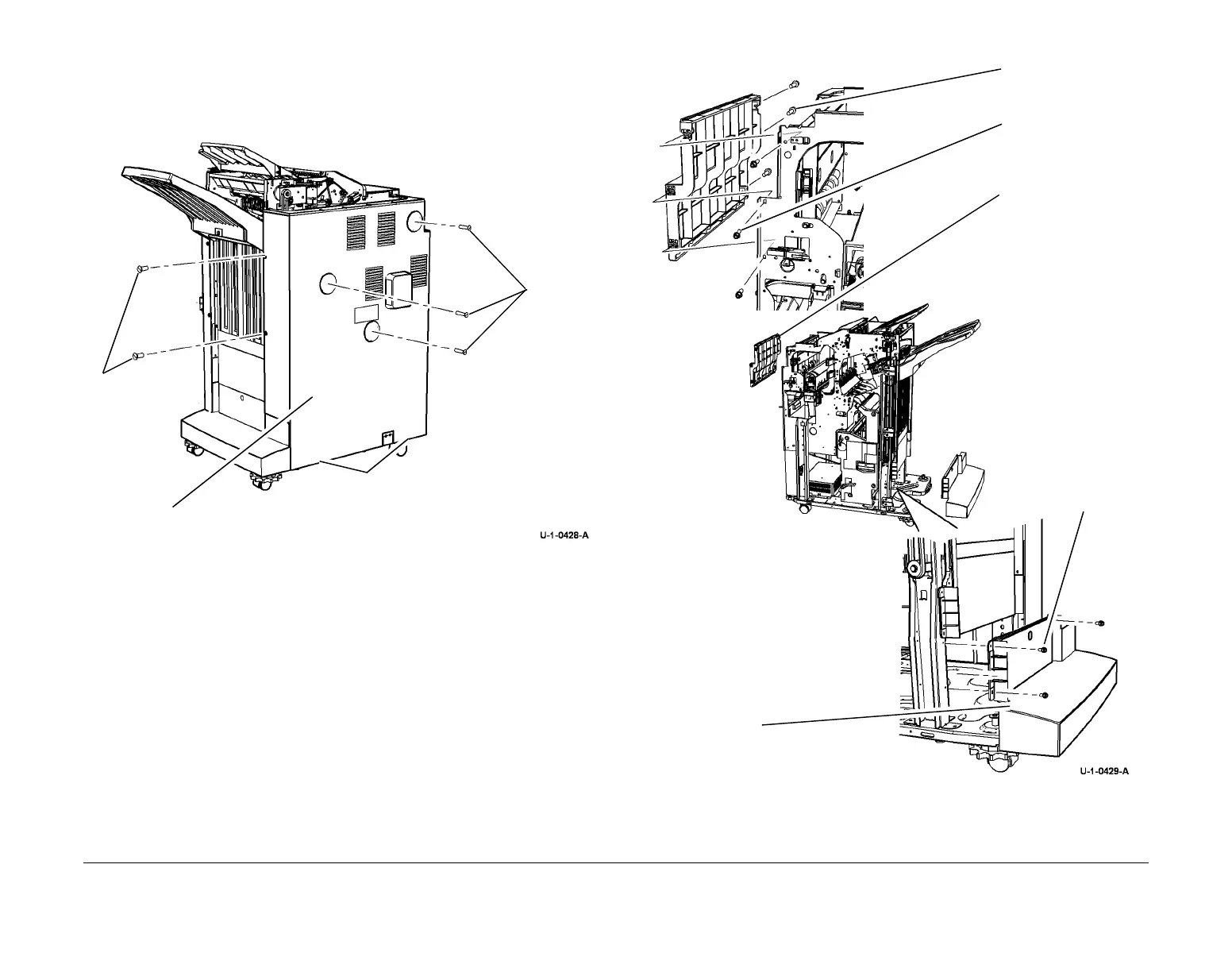

Figure 4 Rear cover removal
5. Remove the vent cover and foot cover, Figure 5. To provide enough room to remove the
vent cover, undock the HVF, REP 12.13-171.
NOTE: The top front cover and rear cover must be removed before removing the vent
cover and foot cover.
NOTE: The foot cover is not installed if the tri-folder option is installed.
Figure 5 Vent and foot covers removal
4
Remove the rear cover.
2
Remove 3
screws.
1
Remove 2
screws.
3
Lift the rear cover to disengage
the bottom locating tabs from
the frame.
5
Remove the
foot cover.
3
Remove the vent
cover.
1
Remove 3 screws
at the rear.
2
Remove 3 screws
at the front.
4
Remove
3 screws
