February 2013
4-147
ColorQube® 9303 Family
REP 12.19-171
Repairs/Adjustments
3. Remove the crease roll motor assembly, Figure 1.
NOTE: As necessary, cut any tie wraps securing the crease roll motor harness.

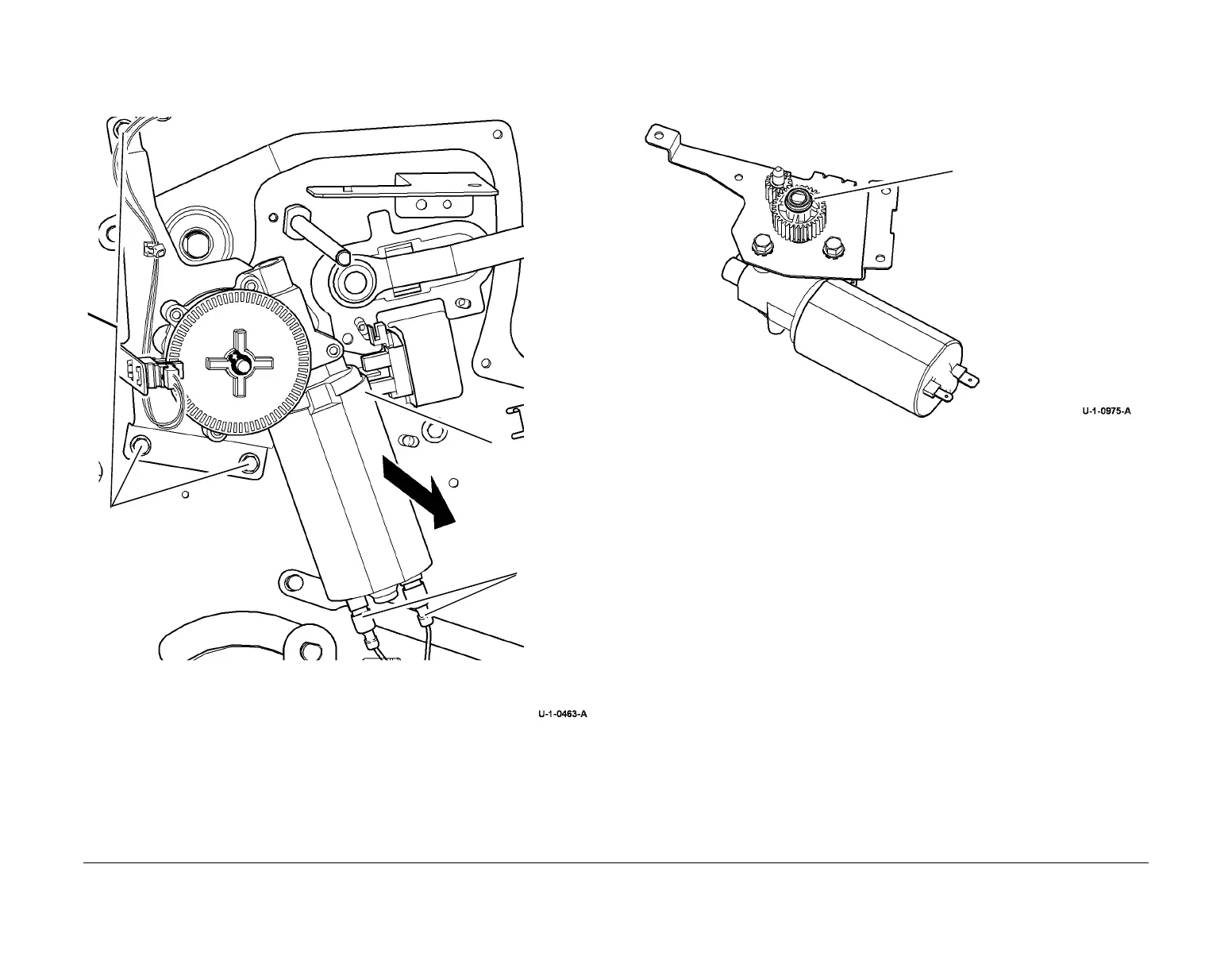

Figure 1 Motor assembly removal
Replacement
1. Reverse the removal procedure to replace the BM crease roll motor.
2. Before installing the motor check that the bearing is located on the drive shaft, Figure 2.
Figure 2 Location of bearing on drive shaft
1
Remove 3
screws.
2
Disconnect
the motor
harness.
3
Pull the motor
assembly off.
Check that the bearing is
on the drive shaft.
To Next Page
