ColorQube® 9303 Family
REP 12.50-171
Repairs/Adjustments
REP 12.50-171 BM Exit Sensor
Parts List on PL 12.185.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Remove the BM right hand cover, REP 12.56-171.
2. Remove the exit plate, Figure 1.

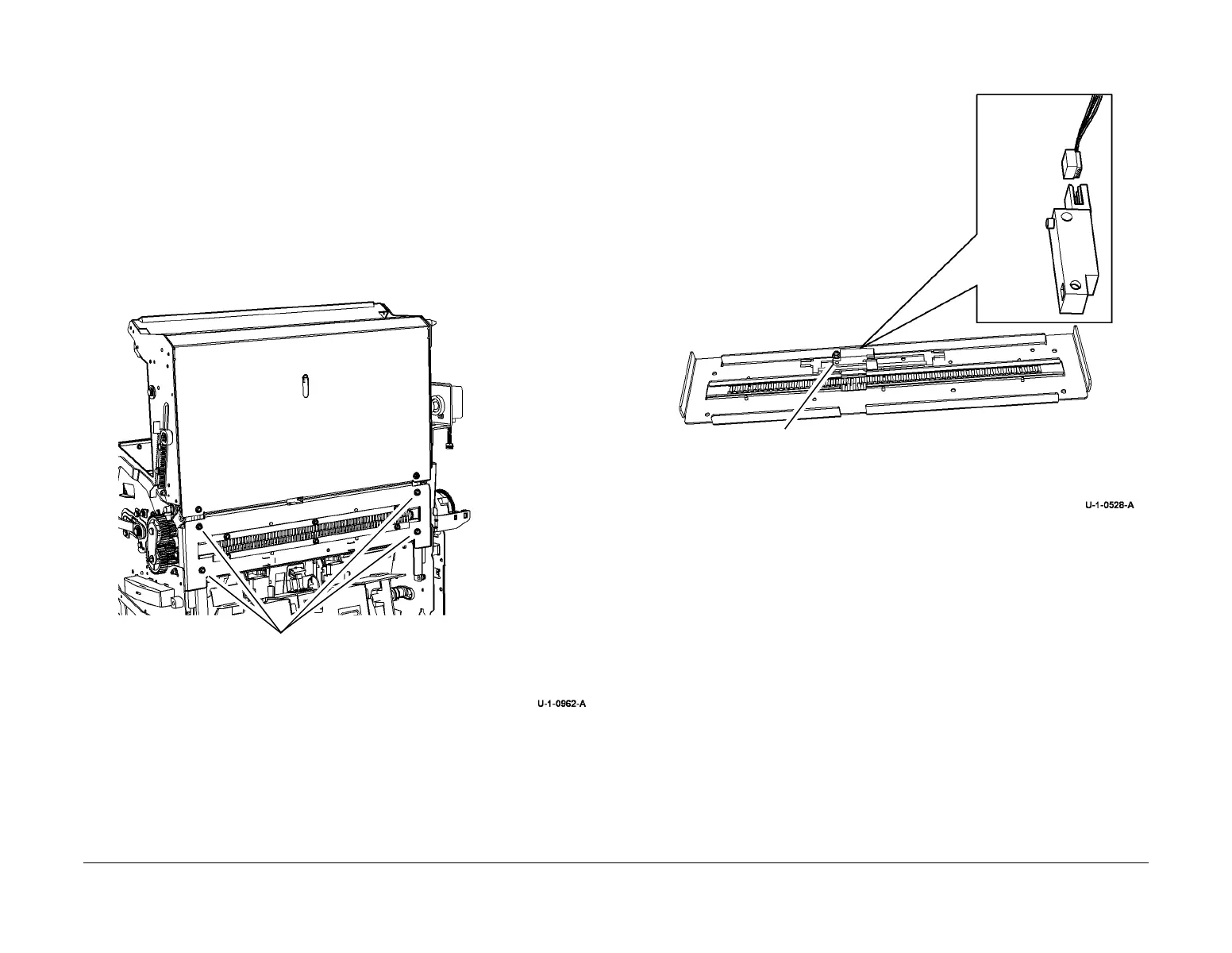

Figure 1 Remove the exit plate
3. Figure 2, remove the BM exit sensor.
Figure 2 Sensor removal
Replacement
Reverse the removal procedure to replace the BM exit sensor.
1
Remove 4 screws to release the
exit plate.
1
Remove the screw then
slide out the sensor.
2
Disconnect
the harness
then remove
the sensor.
