February 2013
4-194
ColorQube® 9303 Family
REP 12.56-171
Repairs/Adjustments
REP 12.56-171 BM Right Hand Cover
Parts List on PL 12.185.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Remove the top cover, then the rear cover, REP 12.1-171.
2. Open the BM front door and fully pull out the BM module.
3. Remove the crease blade knob (6d), PL 12.150 Item 4.
4. Remove the crease roll handle (6c), PL 12.150 Item 5.
5. Remove the BM front cover, PL 12.150 Item 3.
6. Figure 1, remove the BM top cover.

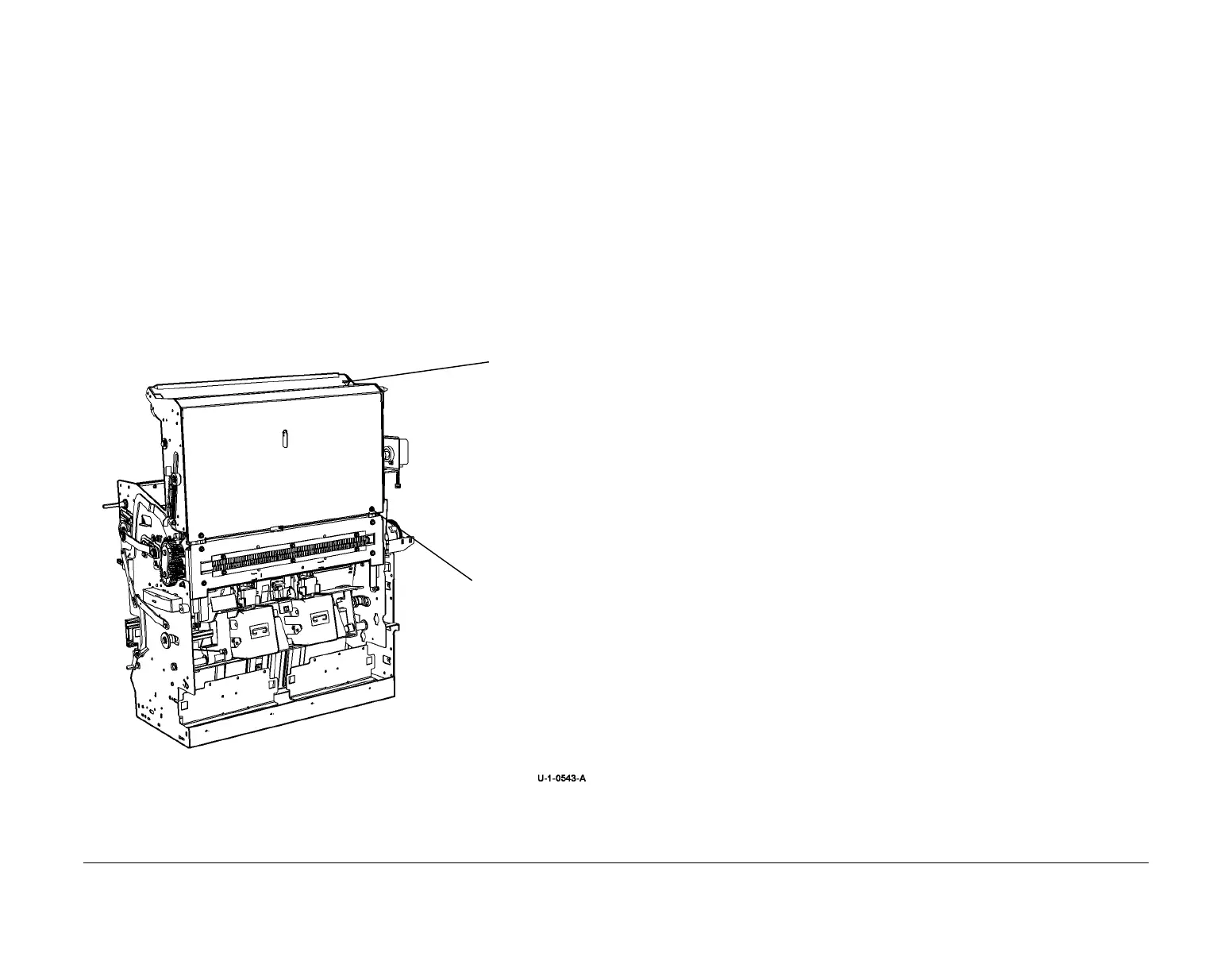

Figure 1 Top cover removal
Replacement
Reverse the removal procedure to replace the BM right hand cover.
2
Remove 2 screws
then lift and remove
the cover.
1
Disconnect the
harness to the
BM entry sensor
To Next Page
