Xerox ColorQube 9303 Series Service Manual

February 2013
4-198
ColorQube® 9303 Family
REP 12.59-171
Repairs/Adjustments

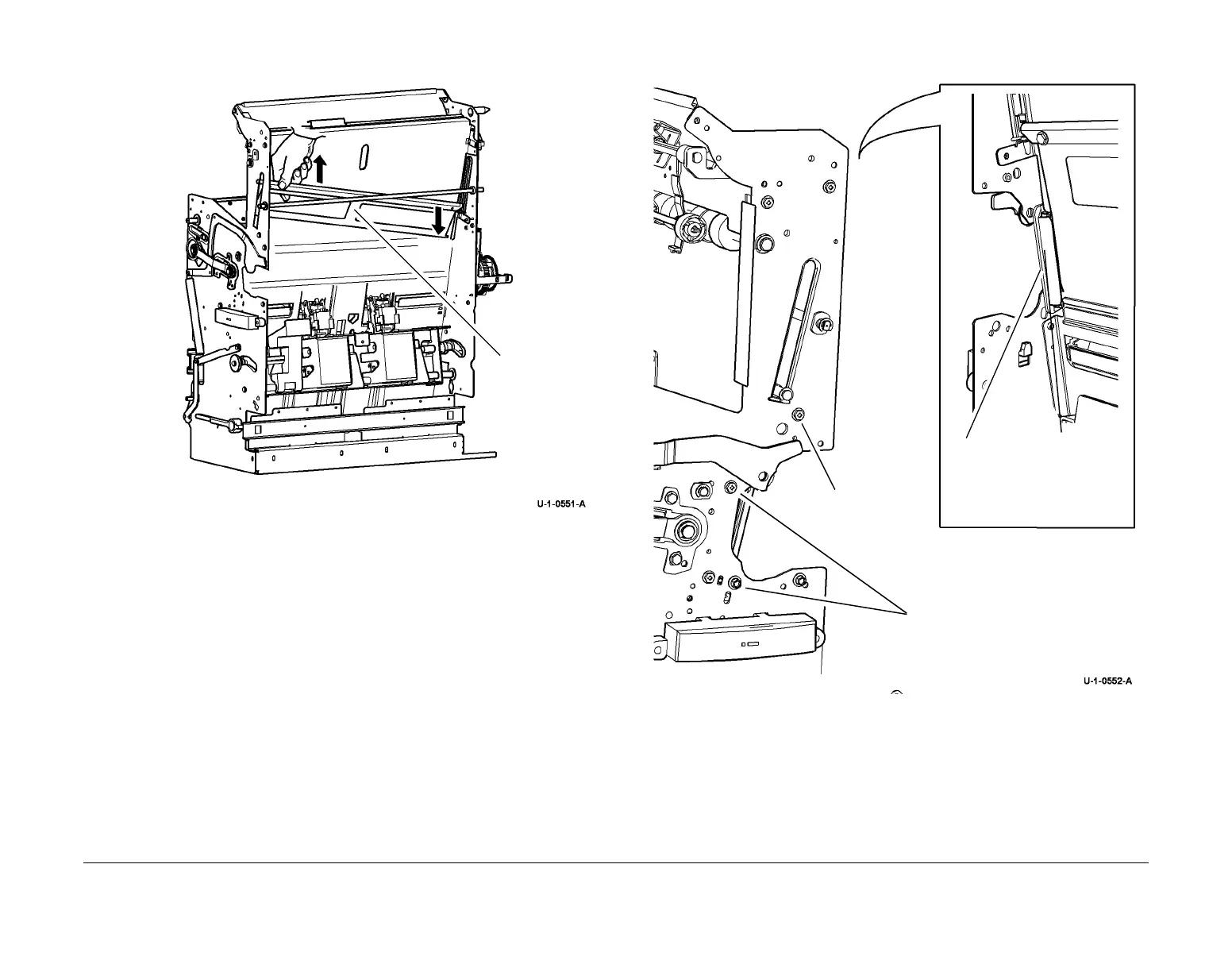

10. Figure 3, remove the crease roll gate.
Figure 3 Gate removal
11. Figure 4, remove the grease roll gate front guide.
Figure 4 Front guide removal
1
Twist the gate
to allow the
shaft to exit the
slot, then lift
out the gate.
3
Remove the
guide.
2
Remove screw.
1
Remove two screws.
