ColorQube® 9303 Family
REP 12.62-171
Repairs/Adjustments
6. Figure 4, Remove the bracket and the slide rail from the left side of the BM module.

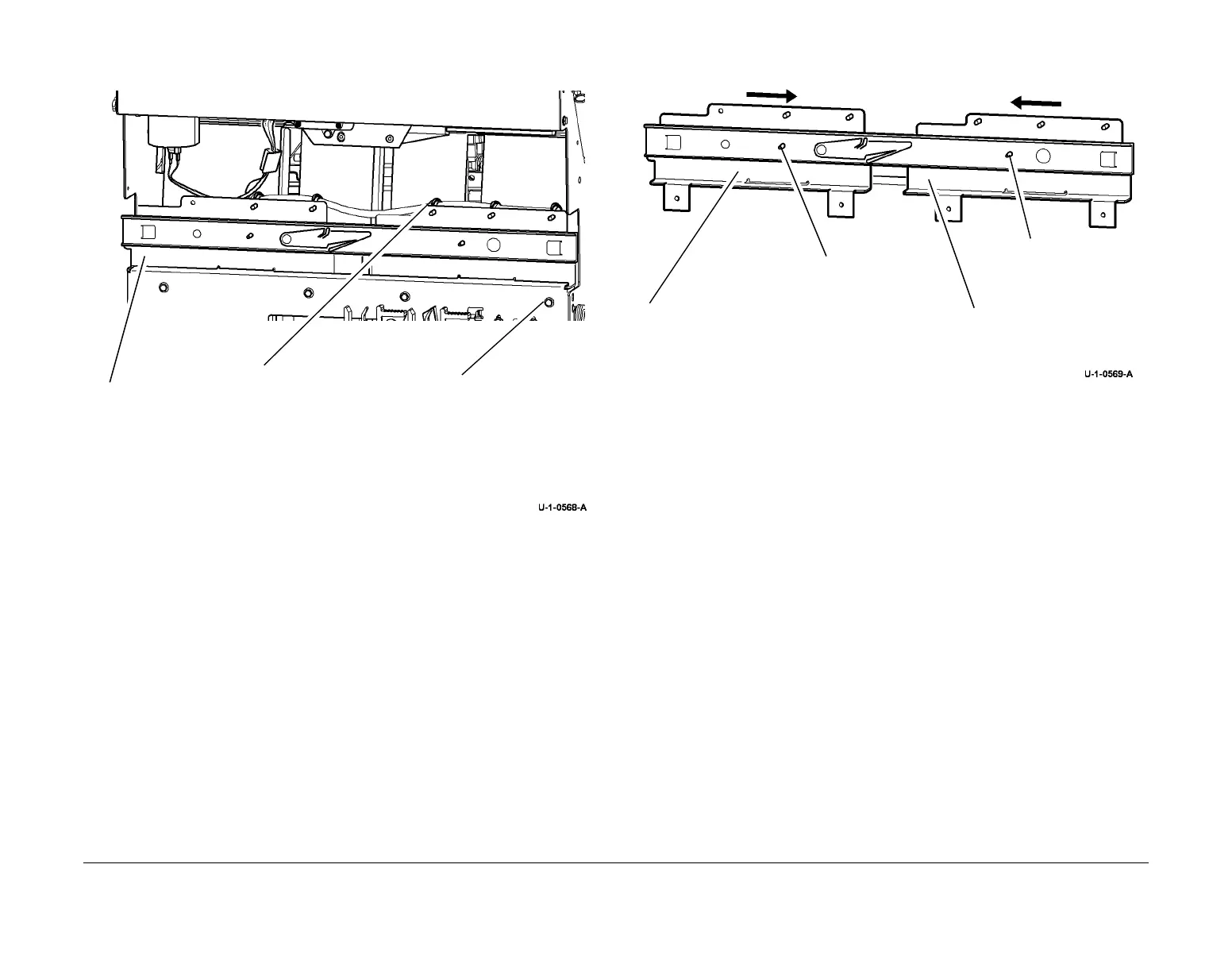

Figure 4 Remove the bracket and slide rail
7. Figure 5, Remove the two brackets from the slide rail
Figure 5 Remove the bracket from the slide rail
Replacement
1. Reverse the removal procedure to replace the slide assembly.
2. Ensure that all of the cable ties are installed and the harness are in the correct position.
3. Check that all of the PJ connections are connected.
1
Remove four screws.
2
Cut the five cable ties to
release the harness.
3
Remove the bracket
and the slide rail.
1
Remove screw.
2
Remove the bracket from
the slide rail.
3
Remove screw.
4
Remove the bracket from the
slide rail.
